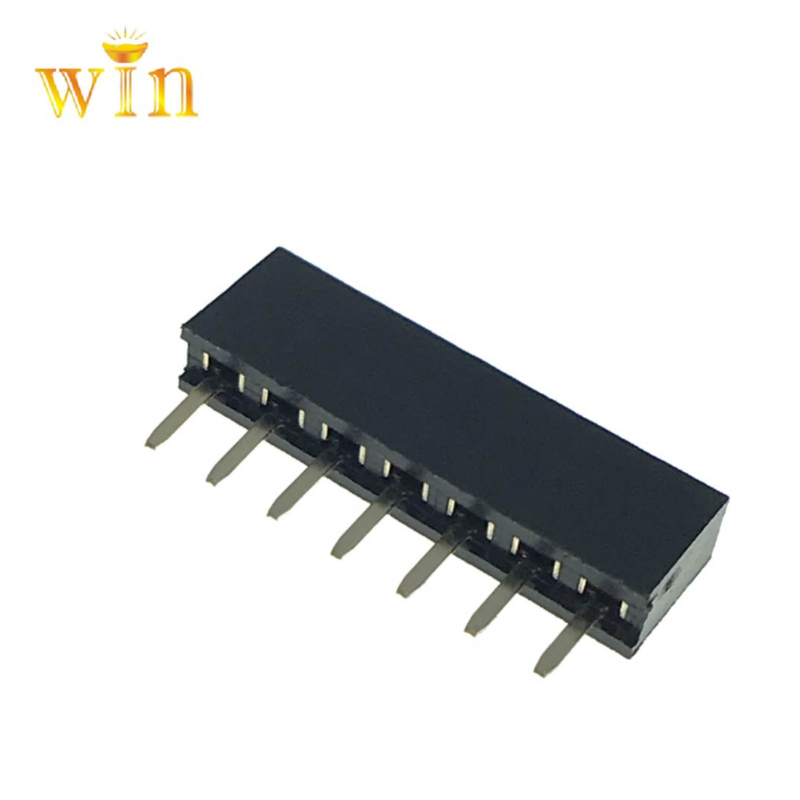

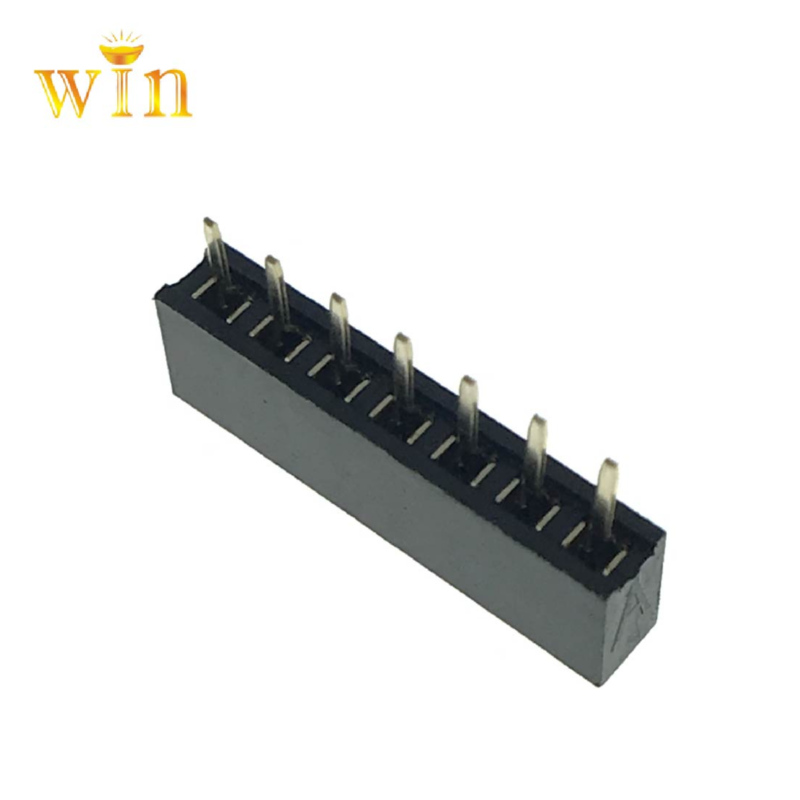

2.54mm 1x7P single row female socket header


Keywords :

7P female header / 7P single row female socket / DIP female header


  • Hits : 45
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • Customize the PCB connector you need
  • We can offer the best customization service
  • No matter what you need, we can help to make it.
  • We are a trusted factory for products customization
  • The original factory to help you solve every issue you meet

Product Details

2.54MM(0.1’’) PITCH PIN HEADER


SPECIFICATION


MATERIALS(CONTACTS): Copper Alloy,Gold or Tin (over Nickel) finish

MATERIALS(HOUSINGS): Standard or High Temperature Plastic,rated to UL94V-0

CURRENT: 3A per contact

MAXIMUM VOLTAGE: 800V AC, 500V DC

CONTACT RESISTANCE: 30mΩ max

INSULATION RESISTANCE: 1,000MΩ min

OPERATING TEMPERATURE: -40℃ to 105℃

DURABILITY: 300 mating cycles (gold) or 50 mating cycles(tin)

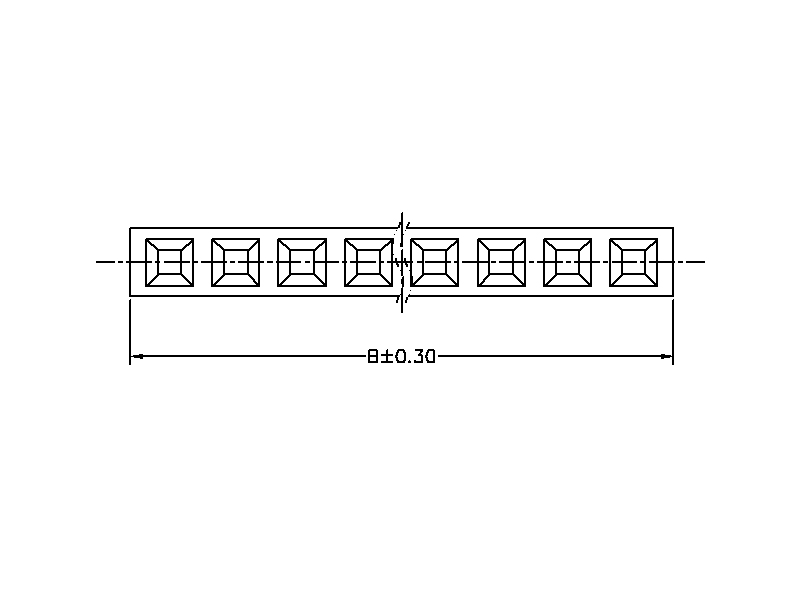

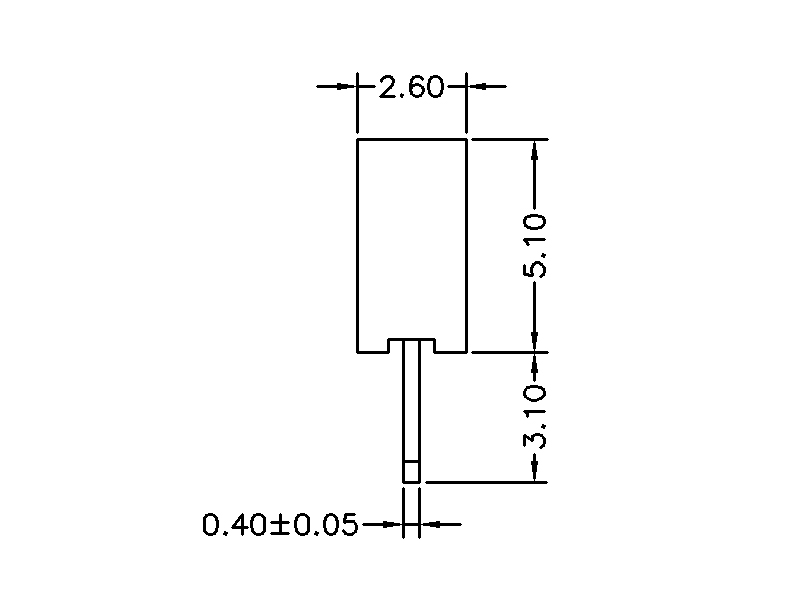

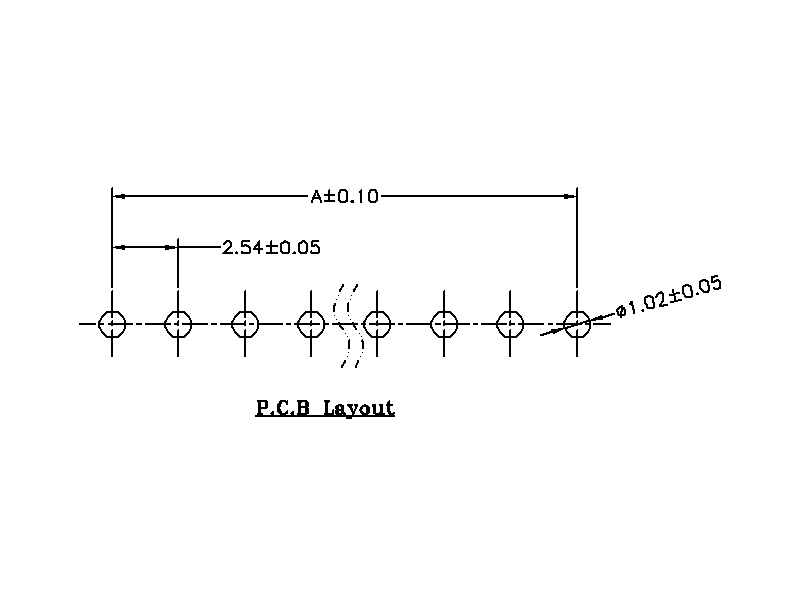

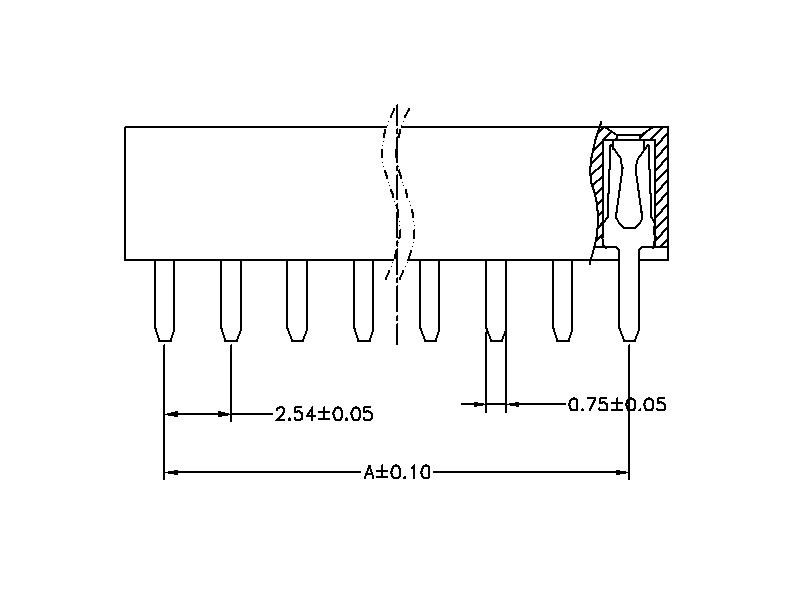

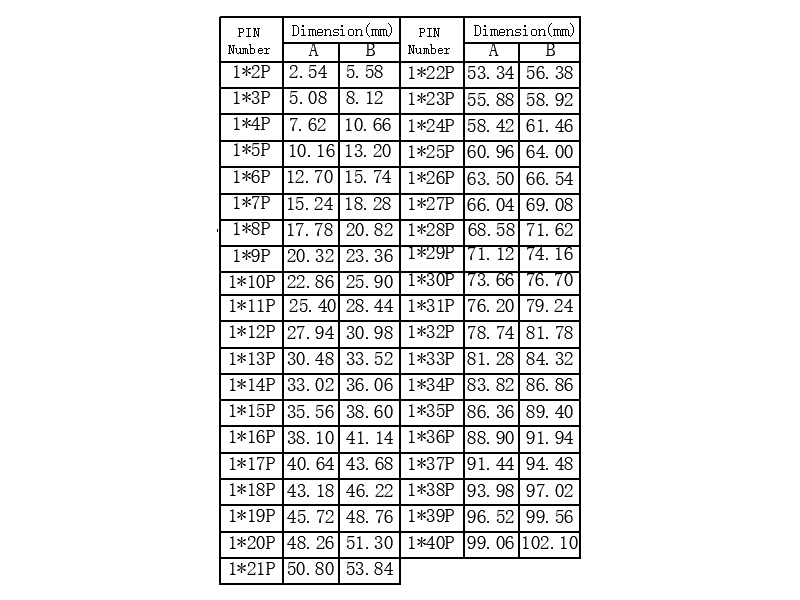

DRAWINGS



YOU CAN CUSTOMIZE.jpg


2.54mm 7P单排母 drawing1.jpg2.54mm 7P单排母 drawing2.jpg2.54mm 7P单排母 drawing3.jpg2.54mm 7P单排母 drawing5.jpg2.54mm 7P单排母 drawing4.jpg详情页1.jpg详情页2.jpg详情页3.jpg详情页4.jpg
