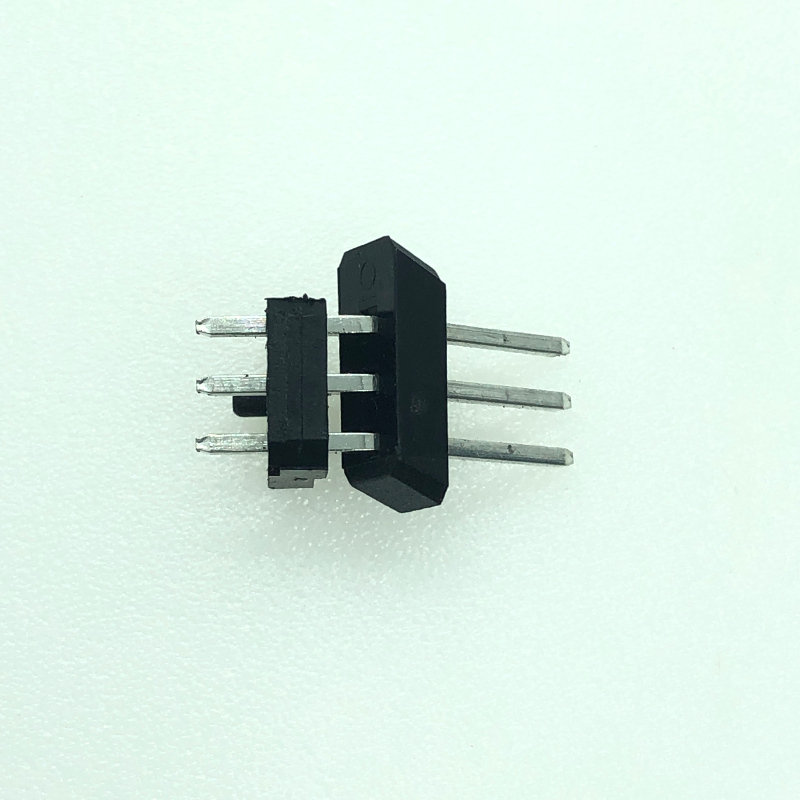

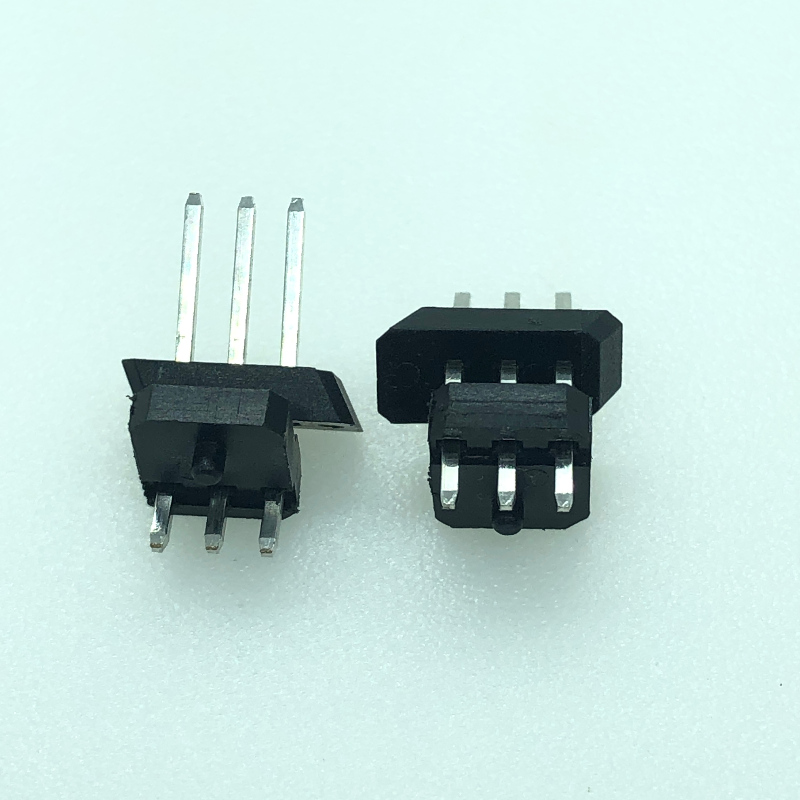

3P customized pin header connector


Keywords :

pin header / customized pin connector / pcb connector


  • Hits : 31
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • We can offer the best customization service
  • No matter what you need, we can help to make it.
  • We are a trusted factory for products customization
  • The original factory to help you solve every issue you meet
  • Free samples are waiting for you

Product Details

2.54MM(0.1’’) PITCH PIN HEADER


SPECIFICATION


MATERIALS(CONTACTS): Copper Alloy,Gold or Tin (over Nickel) finish

MATERIALS(HOUSINGS): Standard or High Temperature Plastic,rated to UL94V-0

CURRENT: 3A per contact

MAXIMUM VOLTAGE: 800V AC, 500V DC

CONTACT RESISTANCE: 30mΩ max

INSULATION RESISTANCE: 1,000MΩ min

OPERATING TEMPERATURE: -40℃ to 105℃

DURABILITY: 300 mating cycles (gold) or 50 mating cycles(tin)

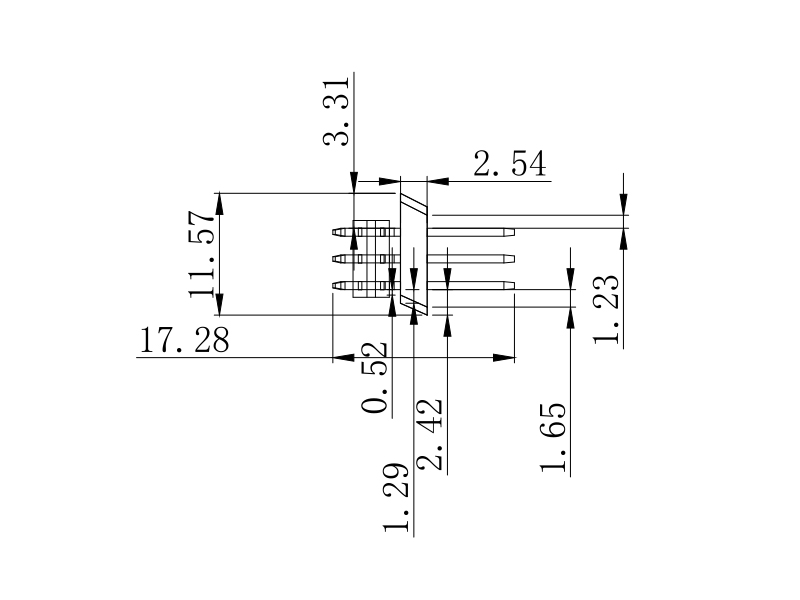

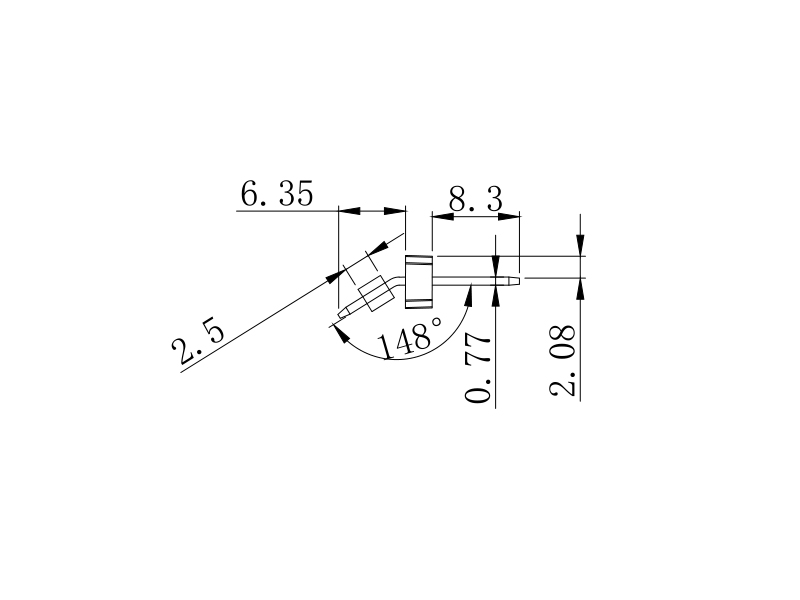

DRAWINGS


The following drawings are for reference.

We can customize the design you need. Contact us if you need any customization connectors.

3P customized pin header 1.jpg


3P customized pin header 2.jpg






Package in tape: This type of package is for SMT connectors, protect the pins from deformation
Convenient for automatic assembly and pickup processing,and save a lot of labor cost.

Package in Tube: This type of package is suitable for many types of connectors according to needs,this packaging method better protects the pins from deformation.

Package in PE bags:This is the most common packaging, suitable for products where the needle is not easily deformed, the disadvantage is that the product protection is small, the advantage is cost savings.

Package in Blister box:Commonly used packaging, a bit similar to blister tube packaging, can better protect the product stitch.




Leave your message if you have any requirement on connectors' design.
