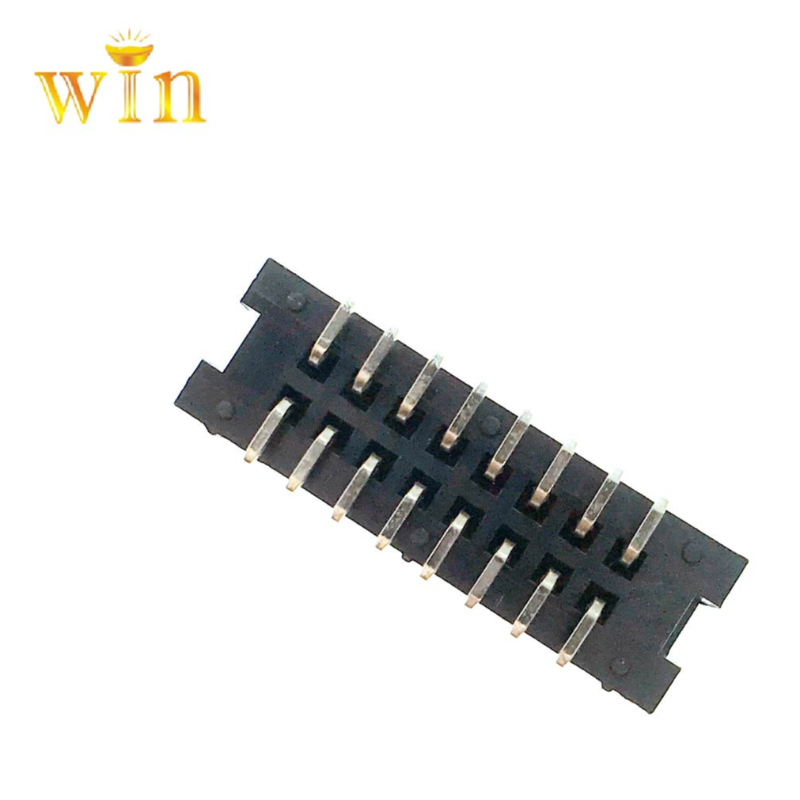

2.54mm 2x8P SMT box header


Keywords :

2.54mm smt box header / 16P smt box header / 16P smt box socket


  • Hits : 36
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • Original factory of many kinds of PCB connector
  • The best materials of connectors production
  • Manufacturing of factory standard connectors
  • You can customize any shape or dimensions you need
  • Free samples are ready for you

Product Details

2.54MM(0.1’’) PITCH PIN HEADER


SPECIFICATION


MATERIALS(CONTACTS): Copper Alloy,Gold or Tin (over Nickel) finish

MATERIALS(HOUSINGS): Standard or High Temperature Plastic,rated to UL94V-0

CURRENT: 3A per contact

MAXIMUM VOLTAGE: 800V AC, 500V DC

CONTACT RESISTANCE: 30mΩ max

INSULATION RESISTANCE: 1,000MΩ min

OPERATING TEMPERATURE: -40℃ to 105℃

DURABILITY: 300 mating cycles (gold) or 50 mating cycles(tin)



DRAWINGS


The following drawings are for reference.

We can customize the design you need. Contact us if you need any customization connectors.


YOU CAN CUSTOMIZE.jpg

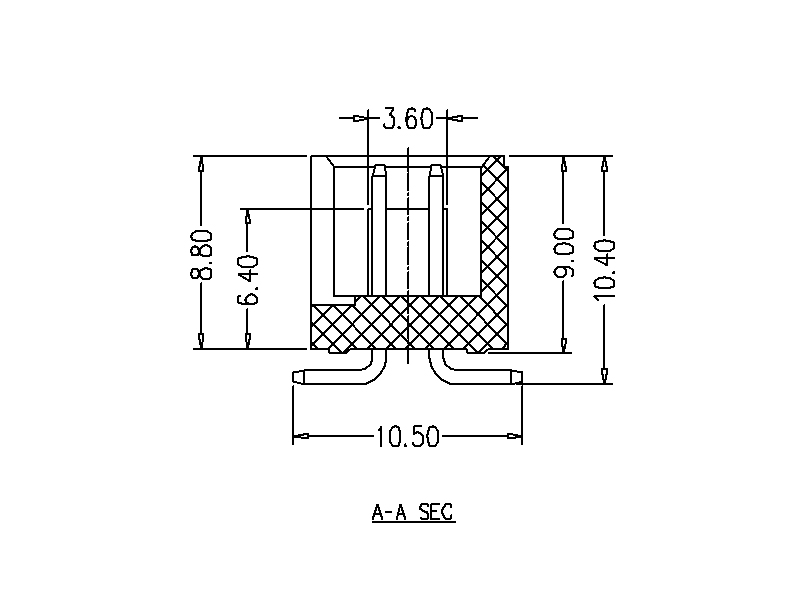

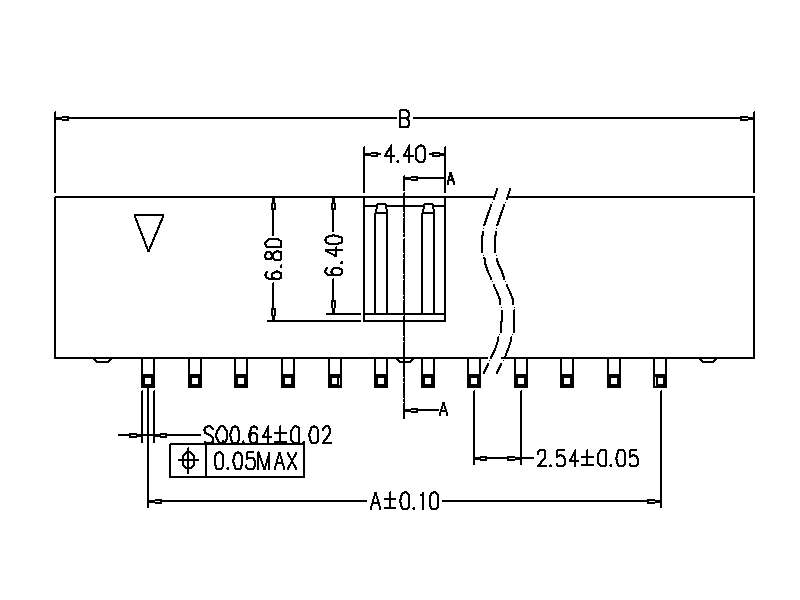

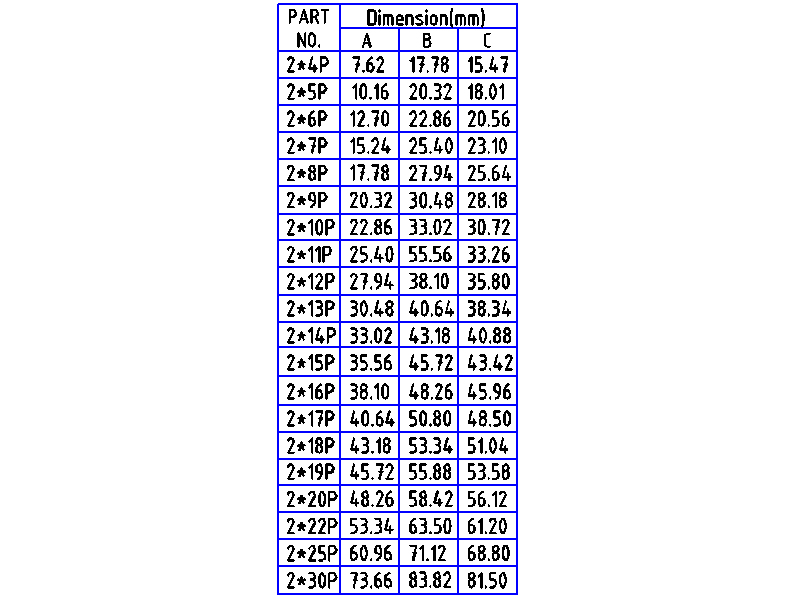

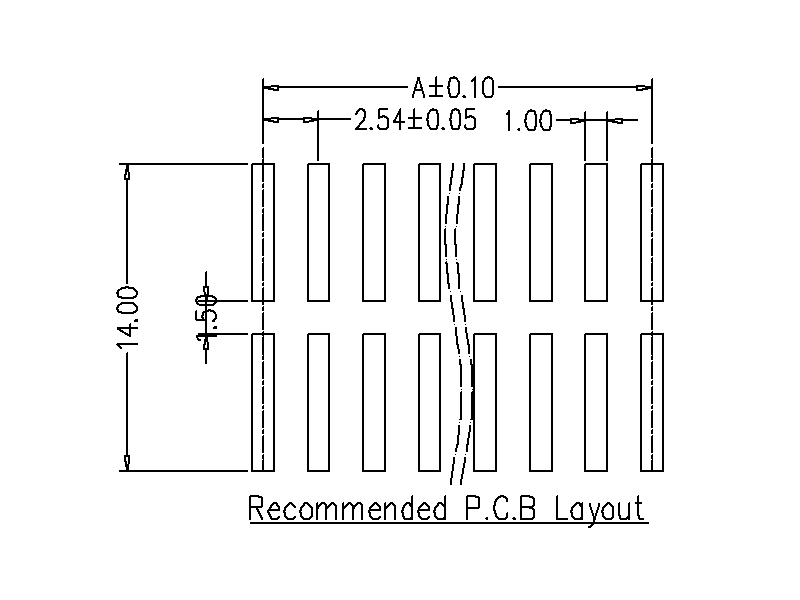

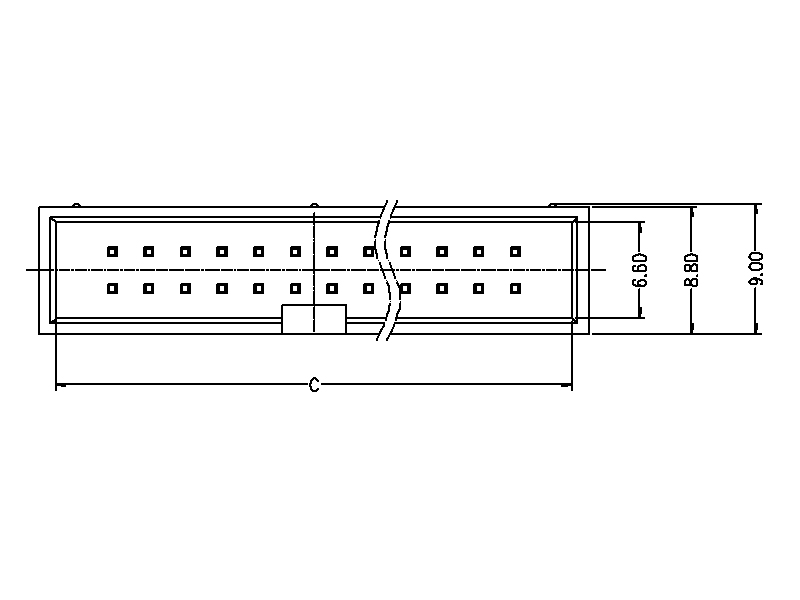

2.54mm 2x8P贴片简牛 drawing1.jpg

2.54mm 2x8P贴片简牛 drawing2.jpg

2.54mm 2x8P贴片简牛 drawing5.jpg

2.54mm 2x8P贴片简牛 drawing3.jpg

2.54mm 2x8P贴片简牛 drawing4.jpg
