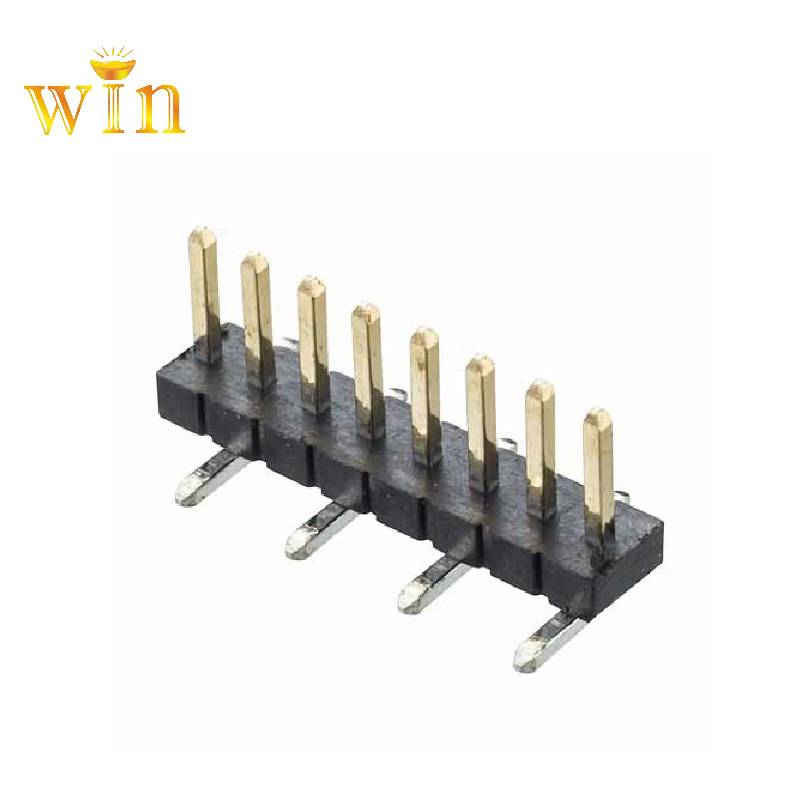

PH2.54 8P vertical SMT Pin Header connector


Keywords :

smt pin header / 2.54 pin header / 8p pin header


  • Hits : 82
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • We can design and produce products of any size and shape according to the needs of our customers.
  • We provide cost-effective and competitive price products.
  • The product quality is comparable to MOLEX, the price is better.
  • All our products are made by Future-proofed Materials - halogen-free, SVHC- free and ROHS compliant.
  • Free Sample Offer & Small batch welcomed

Product Details

2.54MM(0.1’’) PITCH PIN HEADER


SPECIFICATION

MATERIALS(CONTACTS): Copper Alloy,Gold or Tin (over Nickel) finish

MATERIALS(HOUSINGS): Standard or High Temperature Plastic,rated to UL94V-0

CURRENT: 3A per contact

MAXIMUM VOLTAGE: 800V AC, 500V DC

CONTACT RESISTANCE: 30mΩ max

INSULATION RESISTANCE: 1,000MΩ min

OPERATING TEMPERATURE: -40℃ to 105℃

DURABILITY:300 mating cycles (gold) or 50 mating cycles(tin)

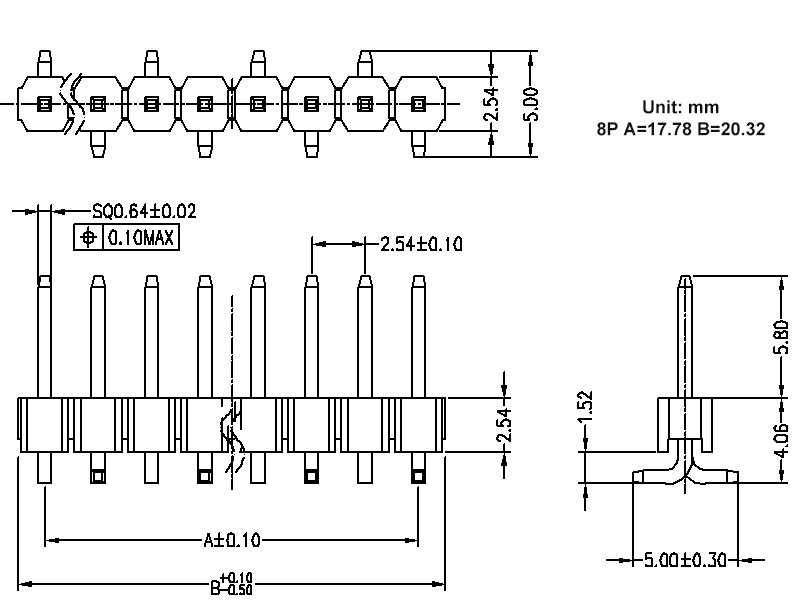

DRAWING

V-8P 1.jpg

(Contact with sales team to get more detail about the dimensions)



What's the function of pin header?

Its function is to function as a bridge between blocked or isolated circuits in the PCB board circuit, and responsible for current or signal transmission.



What are hre pin header models?

There are many types of pin headers which are classified according to the standards in the electronics industry to meet different needing. According to the space, it can be roughly divided into 2.54mm (0.1 in), 2.0mm (0.079 in), 1.27mm (0.05 in), 1.0mm (0.04 in), 0.8mm (0.03 in). The distance between pins is commonly referred as pitch in the electronic community. According to the number of rows, there are single row, double row, three rows, etc. According to the package usage, there are patches SMT (surface-mount technology version) and plug-in DIP (pin through hole devices),  among them, SMT pin headers can be divided into horizontal pin header and vertical pin header, and DIP types can be divided into straight insertion pin header and bending insertion pin header. Besides that, we divided it into three types according to their installation method, 180° installation is represented by "S", 90° installation is represented by "W", and SMT installation is represented by "T".



What's the application range of pin header?

Application range: Data processing equipment, Computer, Program control equipment, Electronic measuring equipment, Automatic control equipment, Automation equipment, Communication equipment, etc.


DONGGUAN WIN-WIN ELECTRONICS CO.,LTD

Contact Person: Haimei Liang

Department: Sales Department

Post: sales manager

Telephone: +86 18929181819

Landline: +86 0769 83450370

Company Address: No.67,Dongshen Road,Qiaotou Town,Dongguan City,China

Website: www.dgwin-win.com

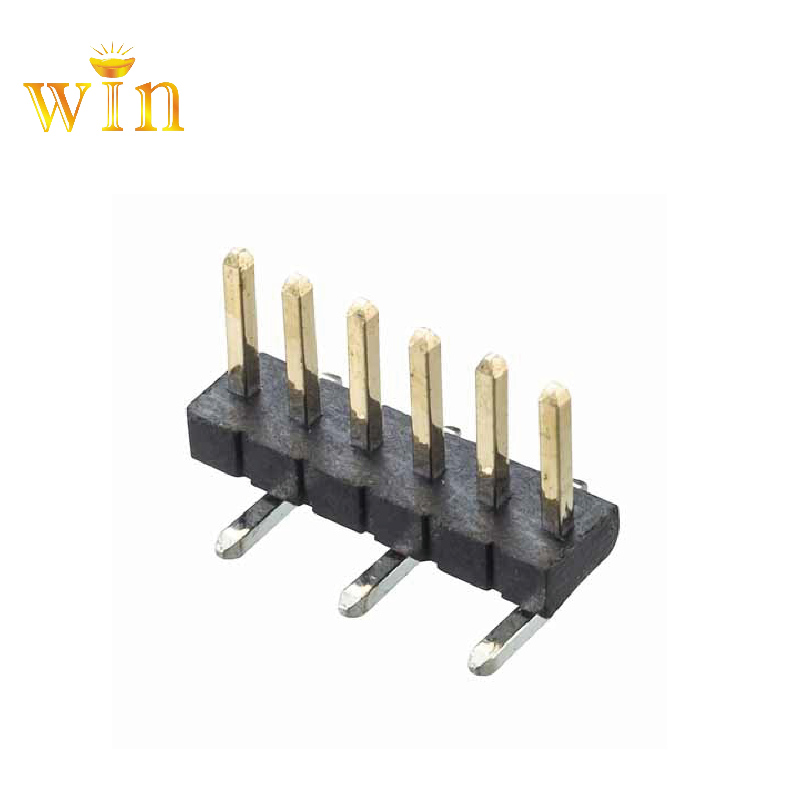

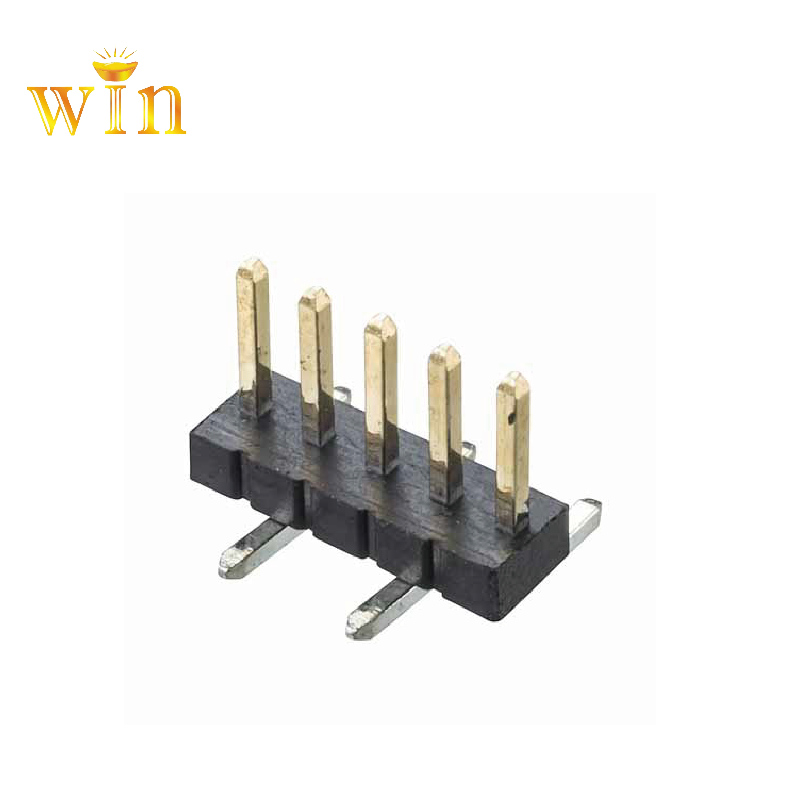

Previous: PH2.54 6P vertical SMT Pin Header...
