1x7P 180° vertical DIP pin header female socket H8.5mm


Keywords :

female socket / pin header socket / 8.5mm pin socket


  • Hits : 33
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • H8.5mm insulator height is your best choice in design
  • 2.54mm pitch standard factory socket
  • Y shape termianl inside insulator offers firming contact points in low price
  • Reliable material make the connector a longer using life
  • Directly from the original factory can receive the best price

Product Details

2.54MM(0.1’’) PITCH FEMALE HEADER


SPECIFICATION


MATERIALS(CONTACTS): Phosphor Bronze,Gold or Tin (over Nickel) finish

MATERIALS(HOUSINGS): Standard or High Temperature Plastic,rated to UL94V-0

CURRENT: 3A per contact

MAXIMUM VOLTAGE: 800V AC, 500V DC

CONTACT RESISTANCE: 30mΩ max

INSULATION RESISTANCE: 1,000MΩ min

OPERATING TEMPERATURE: -40to 105

DURABILITY: 300 mating cycles (gold) or 50 mating cycles(tin)

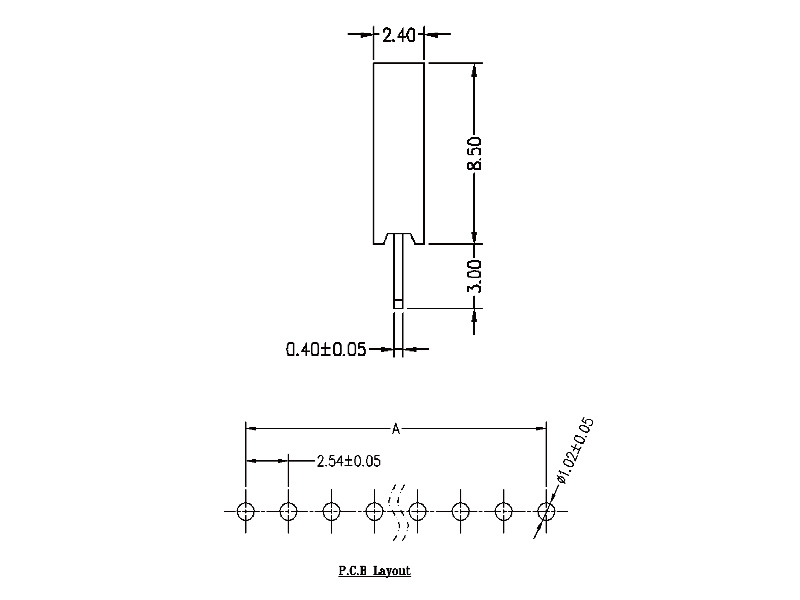

DRAWINGS


1x7P 180° vertical DIP pin header 1-01.jpg

1x7P 180° vertical DIP pin header 2-01.jpg

(Contact with sales team to get more detail about the dimensions)

Any size the shape can be customized. WIN-WIN offers the best service in products customization.


PRODUCT CATEGORY


WIN-WIN has a wide production line of connectors and cables. We can offer pin header and pin header socket, machined pin header and socket,terminal blocks, wafer, mini jumper ,cable etc. All the products can be customized. Kinldy provide us your cuztomized drawings or sample, we can make them for you.
