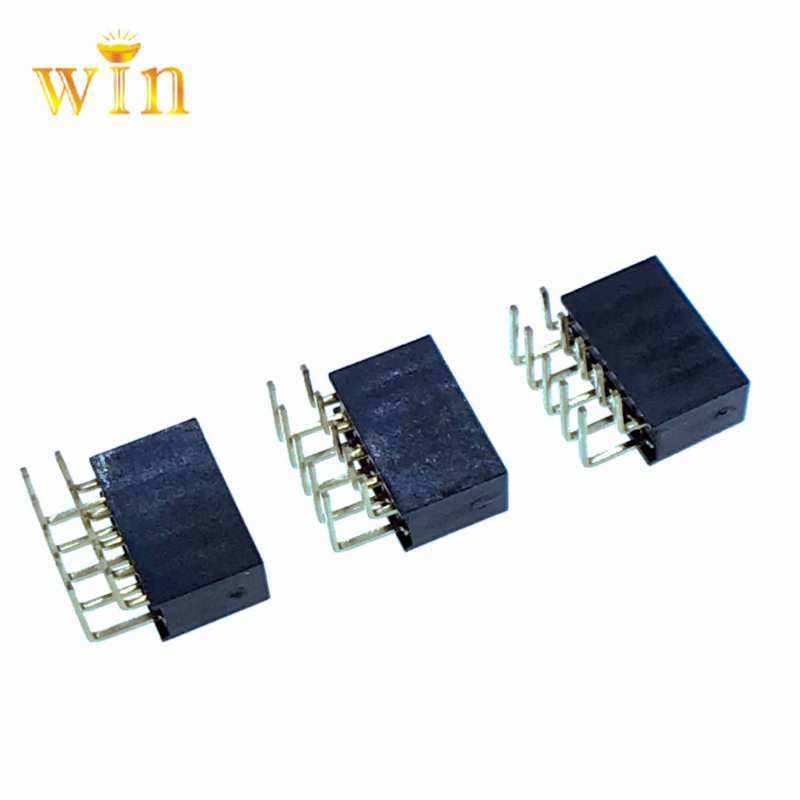

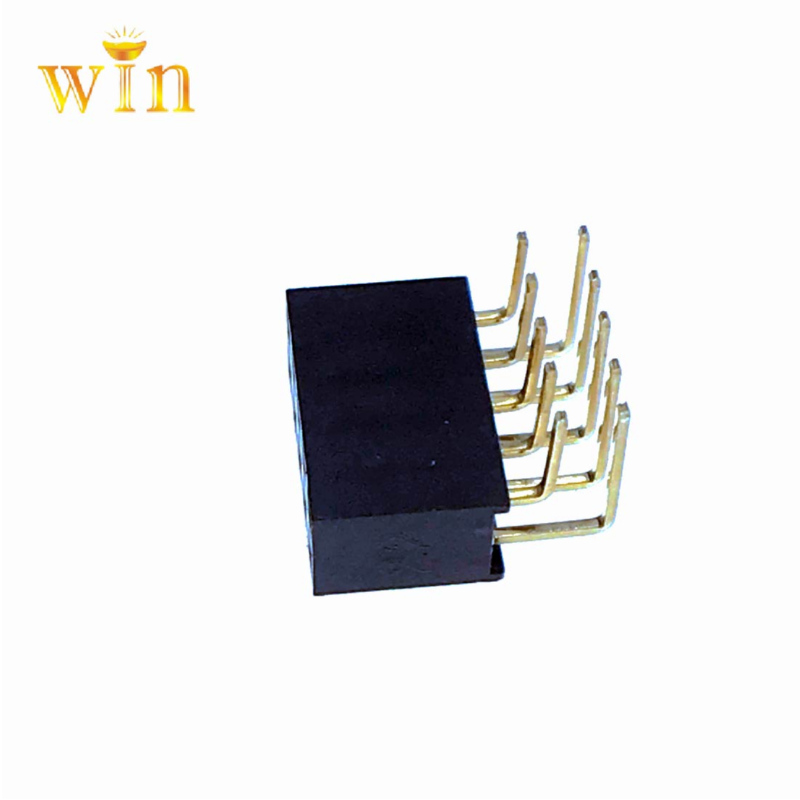

2.54mm 2x5P Right-angle DIP double row pin header female socket
Five Advantages Of Products
- We provide cost-effective and competitive price products
- Any size and shape can be customized
- All products are RoHS compliant
- Quality is our culture, full refund if any unsatisfy defective
- Free samples offered and small batch accepted
Product Details
2.54MM(0.1’’) PITCH FEMALE HEADER
SPECIFICATION
MATERIALS(CONTACTS): Phosphor Bronze,Gold or Tin (over Nickel) finish
MATERIALS(HOUSINGS): Standard or High Temperature Plastic,rated to UL94V-0
CURRENT: 3A per contact
MAXIMUM VOLTAGE: 800V AC, 500V DC
CONTACT RESISTANCE: 30mΩ max
INSULATION RESISTANCE: 1,000MΩ min
OPERATING TEMPERATURE: -40℃ to 105℃
DURABILITY: 300 mating cycles (gold) or 50 mating cycles(tin)

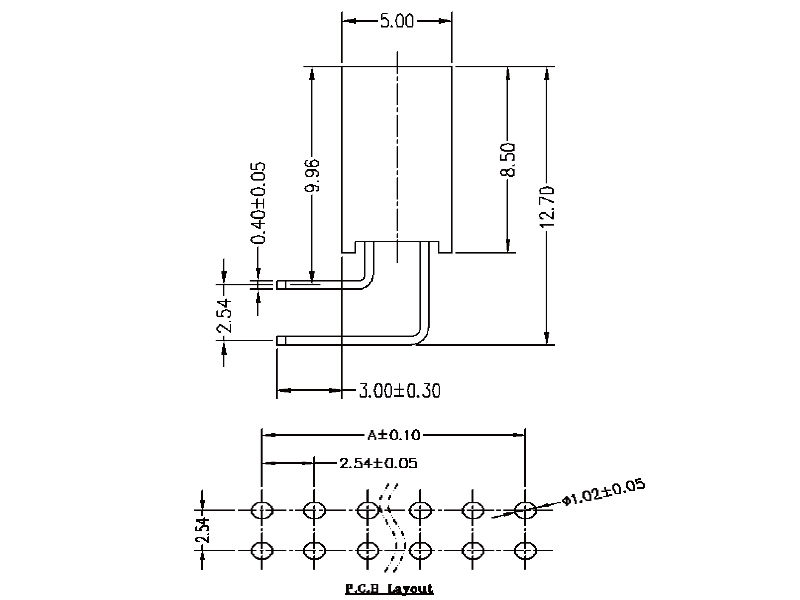

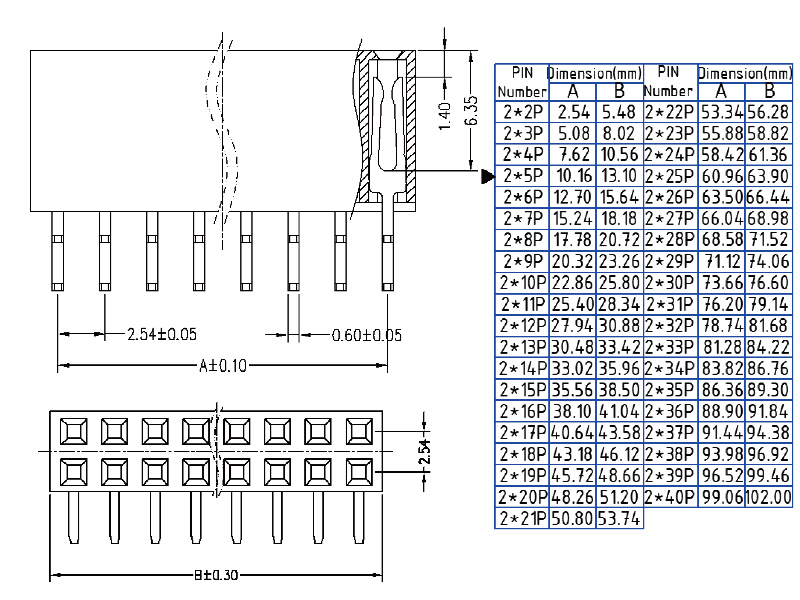

DRAWING
DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
Contact Person: Haimei Liang
Department: Sales Department
Post: sales manager
Telephone: +86 18929181819
Landline: +86 0769 83450370
Company Address: No.67,Dongshen Road,Qiaotou Town,Dongguan City,China
Website: www.dgwin-win.com
