2.54mm Two Rows with Dual Plastic Pin Header


Keywords :

2.54 pin header / double plastic pin header / two rows pin header


  • Hits : 40
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • We can design and produce products of any size and shape according to the needs of our customers.
  • The product quality is comparable to MOLEX, the price is better.
  • Our value message is Quality first, On time delivery, Perfect service and Win-Win.
  • Free Sample Offer & Small order welcomed
  • FULL REFUND in case of Bad Quality or LATE DELIVERY.

Product Details

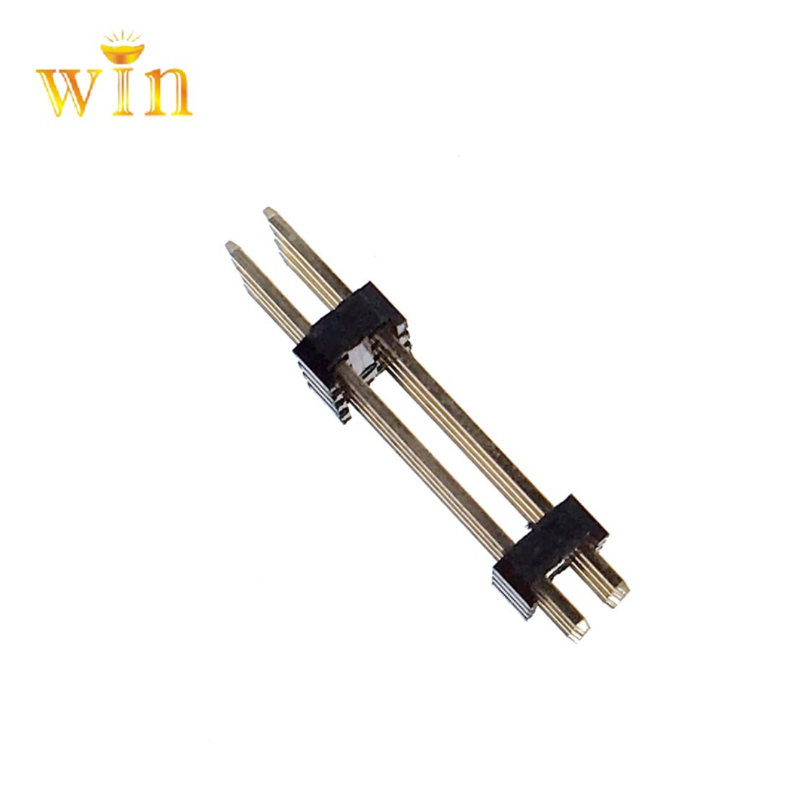

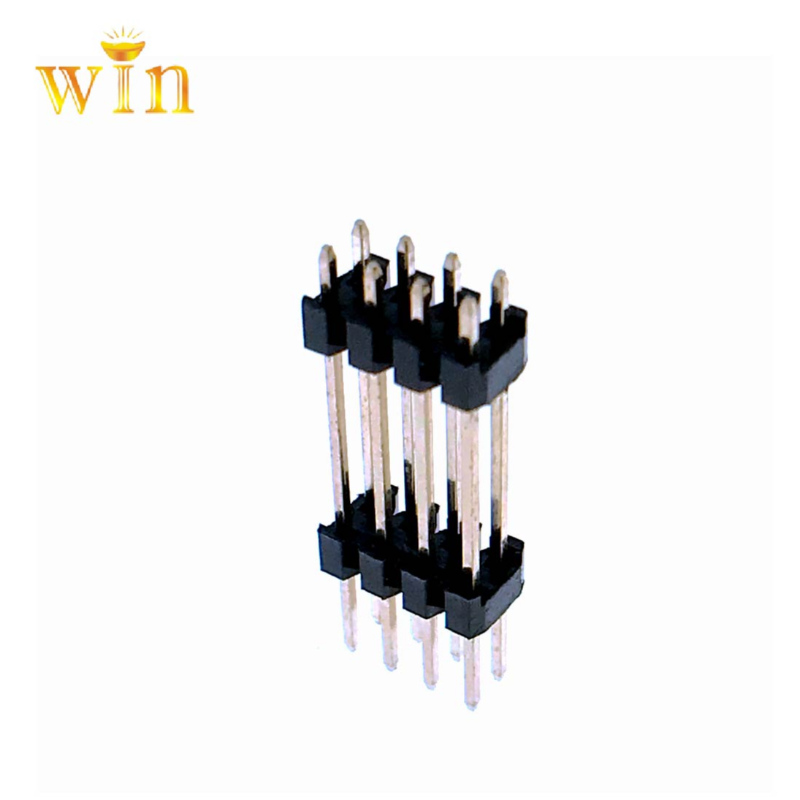

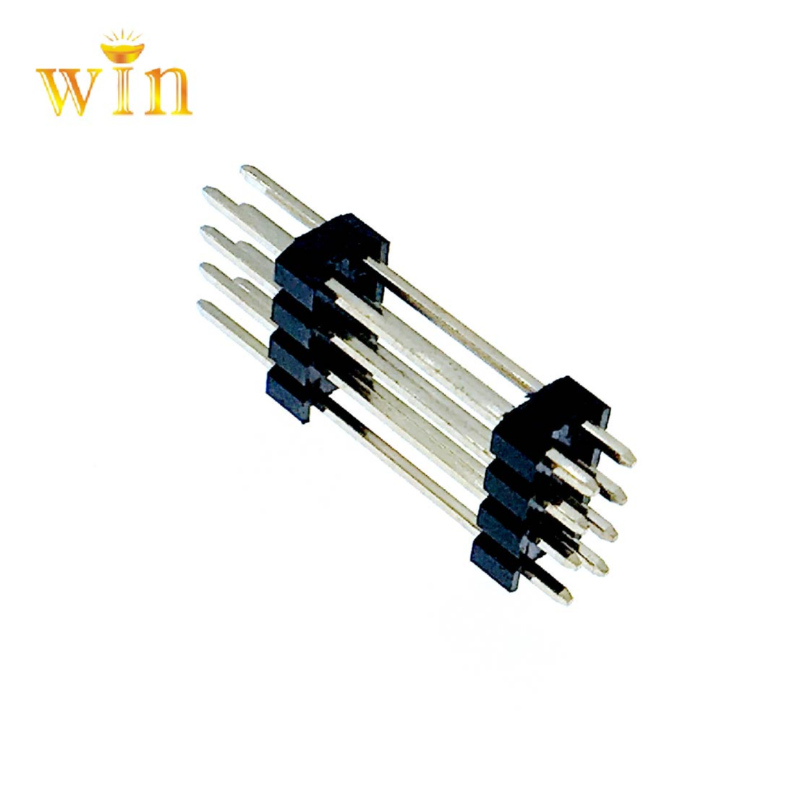

2.54MM(0.1’’) PITCH PIN HEADER


SPECIFICATION

MATERIALS(CONTACTS): Copper Alloy,Gold or Tin (over Nickel) finish

MATERIALS(HOUSINGS): Standard or High Temperature Plastic,rated to UL94V-0

CURRENT: 3A per contact

MAXIMUM VOLTAGE: 800V AC, 500V DC

CONTACT RESISTANCE: 30mΩ max

INSULATION RESISTANCE: 1,000MΩ min

OPERATING TEMPERATURE: -40℃ to 105℃

DURABILITY: 300 mating cycles (gold) or 50 mating cycles(tin)



DRAWINGS

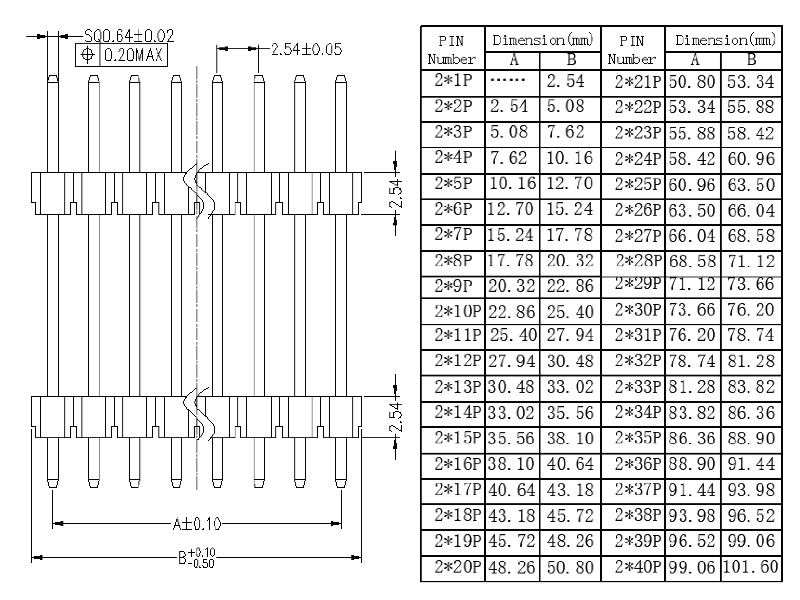

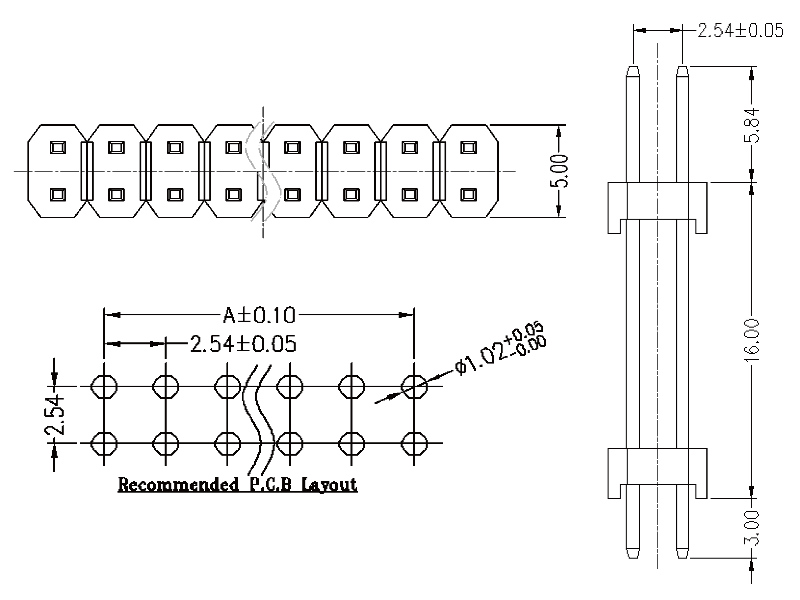

The following drawing is 2.54mm double row two plastic pin header series. Customers who want to order this model can feel free to contact with us. You can customize the dimensions of this model,too. No matter what size you need,we will offer you the best service.

2.54mm Dual Row double plastic Pin Header 2-01.jpg

2.54mm Dual Row double plastic Pin Header 1-01.jpg


WHAT WE CAN PRODUCE?

WIN-WIN ELECTRONICS can offer the following products worldwide.



Supply various SPEC. Pin Header / Female Header Series to meet different needs of customers

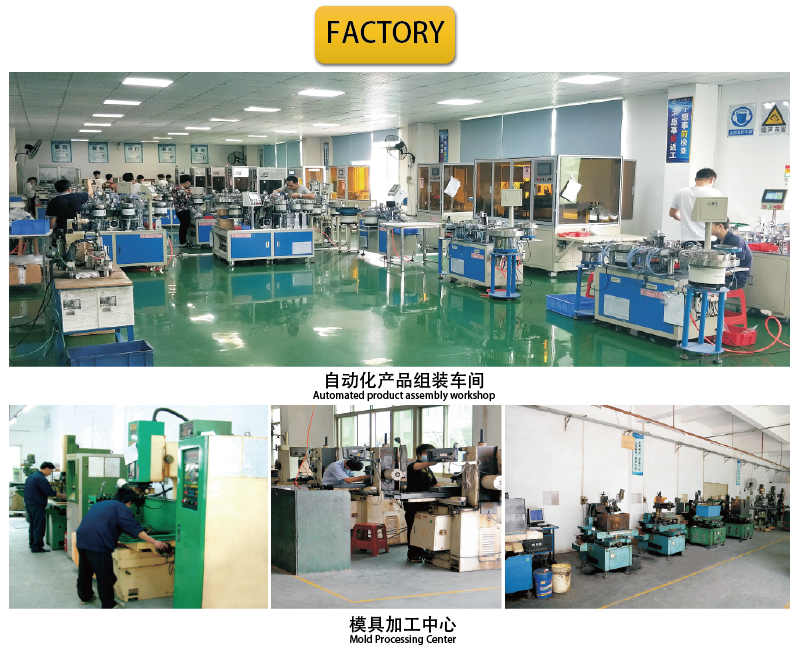

工厂展示 FACTORY 1-01.png

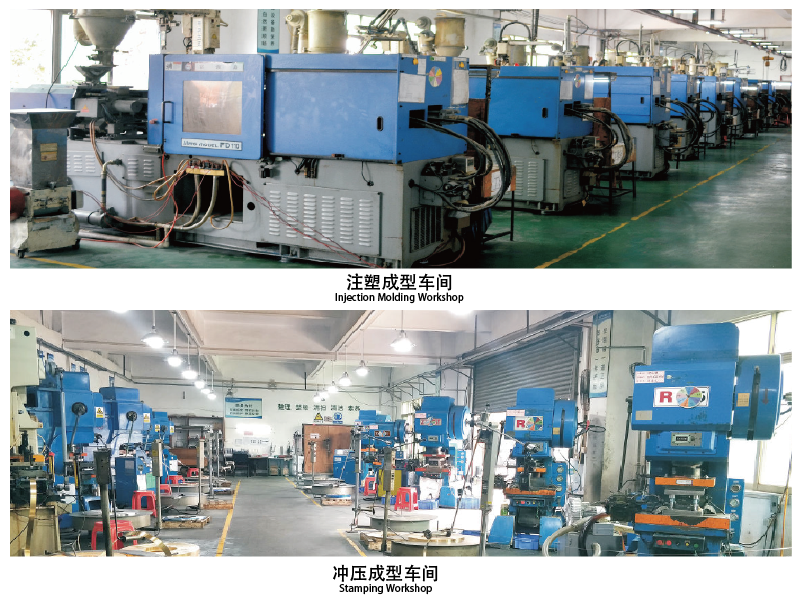

工厂展示 FACTORY 2-01.png

What's Pin Header?

Pin Header is a kind of electrical connector. We usually abbreviated it as PH or simple header, and have the reputation of universal connectors.This type of connector is widely used in PCB circuit boards in electronics, electrical appliances, and meters.


What's the function of pin header?

Its function is to function as a bridge between blocked or isolated circuits in the PCB board circuit, and responsible for current or signal transmission.


What are hre pin header models?

There are many types of pin headers which are classified according to the standards in the electronics industry to meet different needing. According to the space, it can be roughly divided into 2.54mm (0.1 in), 2.0mm (0.079 in), 1.27mm (0.05 in), 1.0mm (0.04 in), 0.8mm (0.03 in). The distance between pins is commonly referred as pitch in the electronic community. According to the number of rows, there are single row, double row, three rows, etc. According to the package usage, there are patches SMT (surface-mount technology version) and plug-in DIP (pin through hole devices),  among them, SMT pin headers can be divided into horizontal pin header and vertical pin header, and DIP types can be divided into straight insertion pin header and bending insertion pin header. Besides that, we divided it into three types according to their installation method, 180° installation is represented by "S", 90° installation is represented by "W", and SMT installation is represented by "T".


What's the application range of pin header?

Application range: Data processing equipment, Computer, Program control equipment, Electronic measuring equipment, Automatic control equipment, Automation equipment, Communication equipment, etc.
