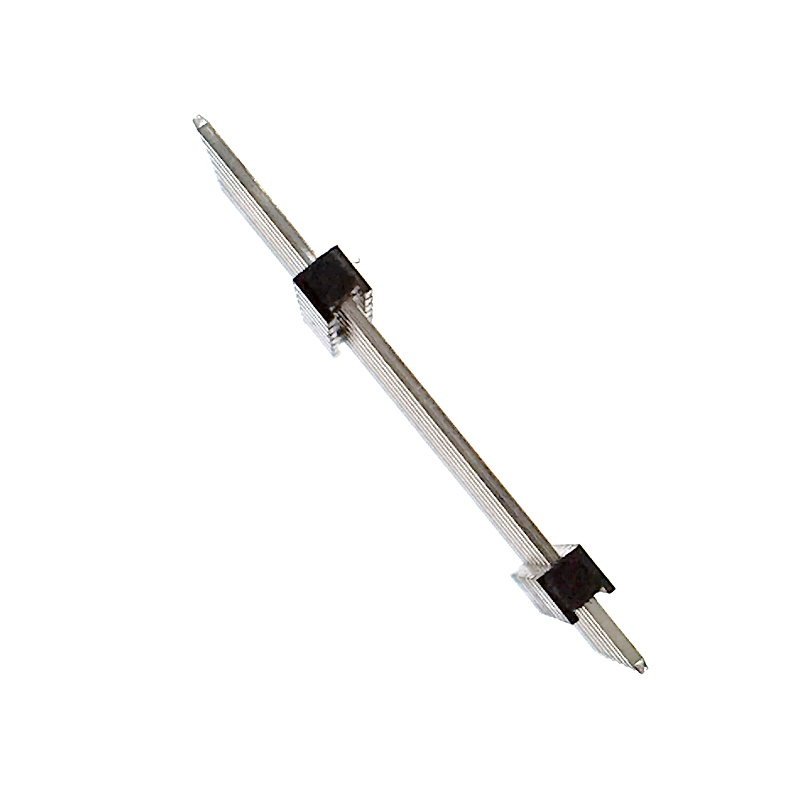

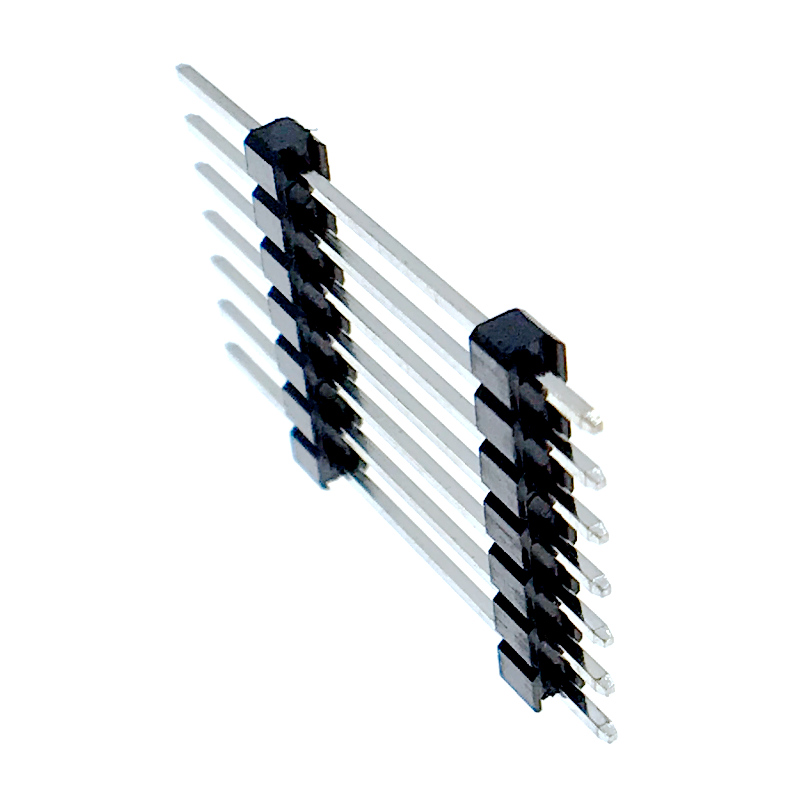

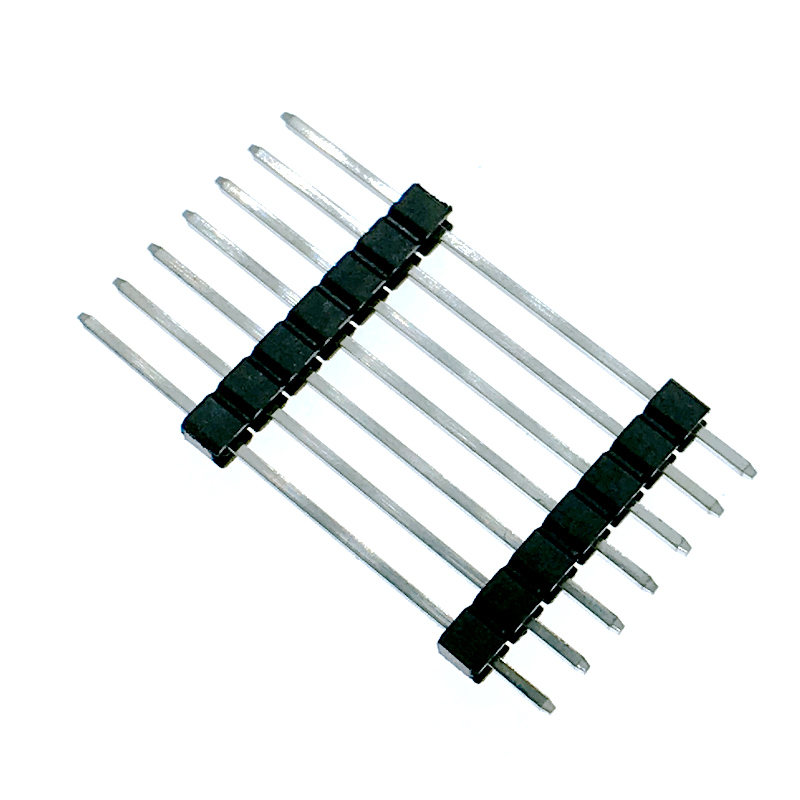

2.54mm 1x7P 180° DIP single row double plastic Pin Header 3mm-13mm-6mm


Keywords :

single row pin header / two plastic pin header / 2.54mm pin header


  • Hits : 57
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • The best PBT material UL94V-0 level
  • Tin finish over nickel,gold finished optional
  • 3mm PCB tail,6mm the upper side
  • 2.54mm pitch, all dimensions can be customized
  • Directly offer from the original factory

Product Details

2.54MM(0.1’’) PITCH PIN HEADER


SPECIFICATION


MATERIALS(CONTACTS): Copper Alloy,Gold or Tin (over Nickel) finish

MATERIALS(HOUSINGS): Standard or High Temperature Plastic,rated to UL94V-0

CURRENT: 3A per contact

MAXIMUM VOLTAGE: 800V AC, 500V DC

CONTACT RESISTANCE: 30mΩ max

INSULATION RESISTANCE: 1,000MΩ min

OPERATING TEMPERATURE: -40℃ to 105℃

DURABILITY: 300 mating cycles (gold) or 50 mating cycles(tin)

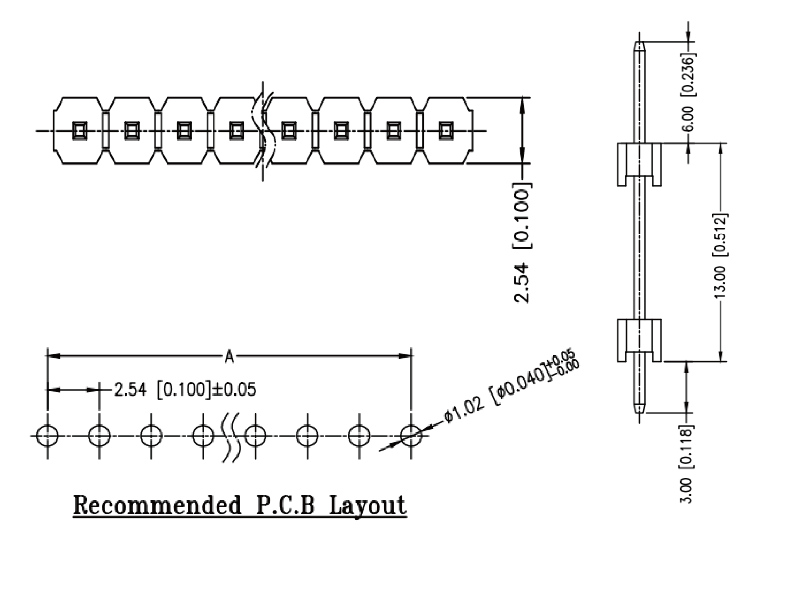

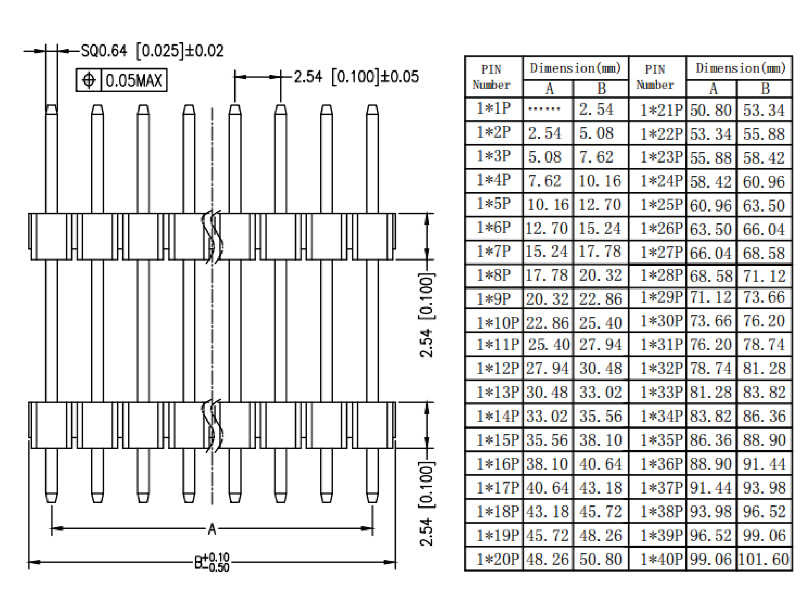

DRAWINGS


2.54mm Single Row dual plastic Pin Header 2-01.jpg

(Contact with sales team to get more detail about the dimensions)

PRODUCTS




OUR ADVANTAGE


l We provide cost-effective and competitive price products.

l We can design and produce products of any size and shape according to the needs of our customers.

l The product quality is comparable to MOLEX, the price is better.

l All our products are made by Future-proofed Materials - halogen-free, SVHC- free and ROHS compliant.

l Terminal Block passed UL/VDE/CB/CE/CQC/CB

l FULL REFUND in case of Bad Quality or LATE DELIVERY.

l Our core competence is Pin Headers &Female Header & Terminal Block

l Our value message is Quality first, On time delivery, Perfect service and Win-Win.

l Free Sample Offer & Small order welcomed


PACKAGE METHOD




Package in tape: This type of package is for SMT connectors, protect the pins from deformation
Convenient for automatic assembly and pickup processing,and save a lot of labor cost.

Package in Tube: This type of package is suitable for many types of connectors according to needs,this packaging method better protects the pins from deformation.

Package in PE bags:This is the most common packaging, suitable for products where the needle is not easily deformed, the disadvantage is that the product protection is small, the advantage is cost savings.

Package in Blister box:Commonly used packaging, a bit similar to blister tube packaging,
can better protect the product stitch.
