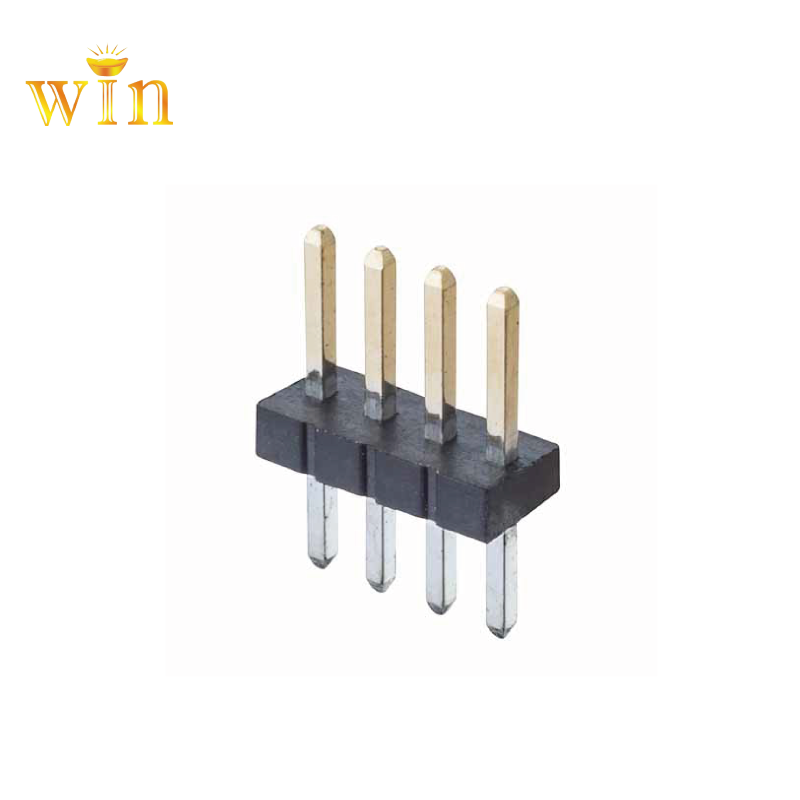

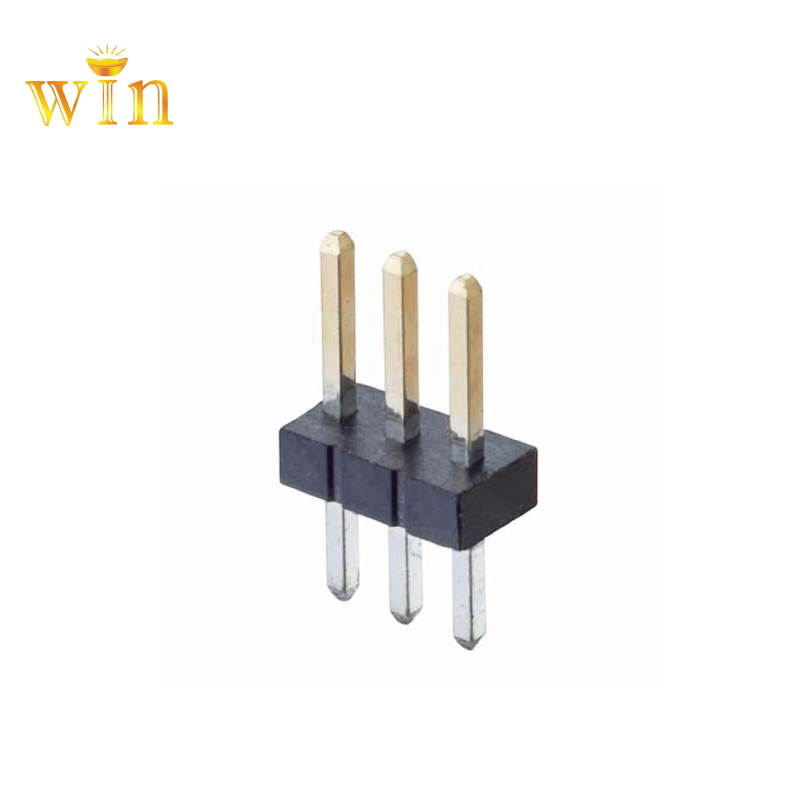

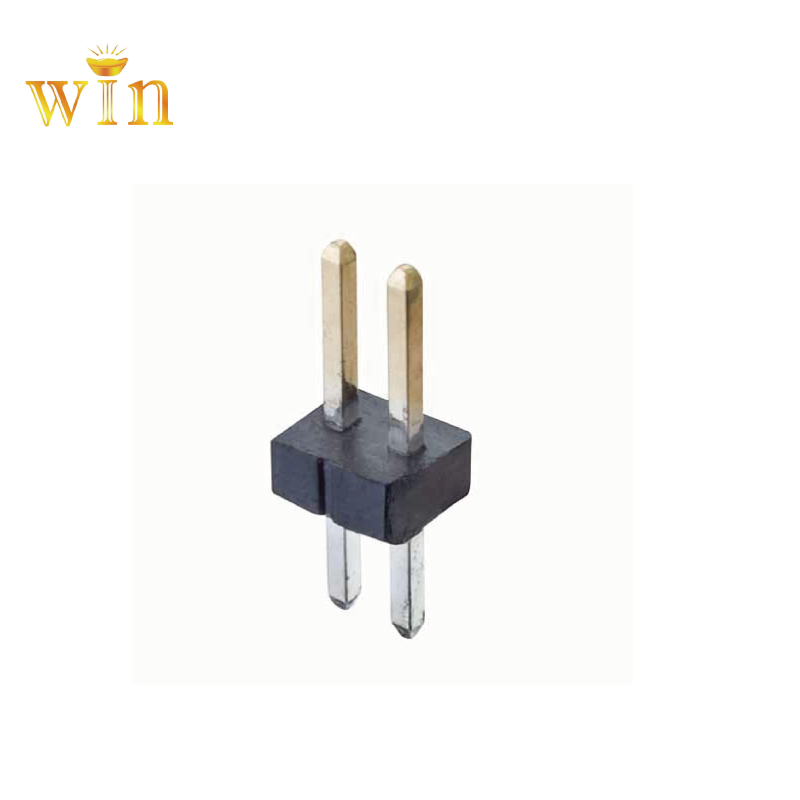

2.54mm Pitch 180° DIP Single Row 2P~40P Pin Header
Five Advantages Of Products
- Chinese Original Factory
- Quality as Molex with lower price
- Any dimensions can be customized
- High quality material last longer
- All materials are RoHS compliant
Product Details
SPECIFICATION
MATERIALS(CONTACTS): Copper Alloy,Gold or Tin (over Nickel) finish
MATERIALS(HOUSINGS): Standard or High Temperature Plastic,rated to UL94V-0
CURRENT: 3A per contact
MAXIMUM VOLTAGE: 800V AC, 500V DC
CONTACT RESISTANCE: 30mΩ max
INSULATION RESISTANCE: 1,000MΩ min
OPERATING TEMPERATURE: -40℃ to 105℃
DURABILITY: 300 mating cycles (gold) or 50 mating cycles(tin)

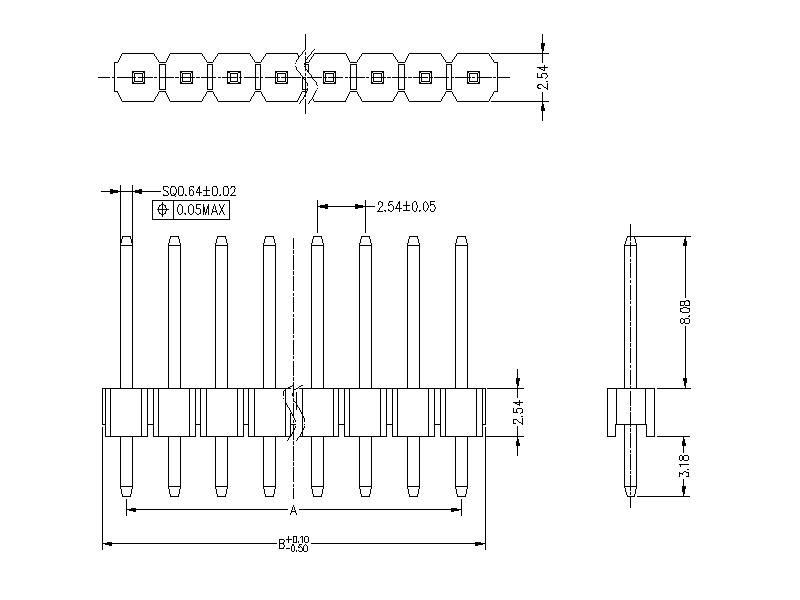

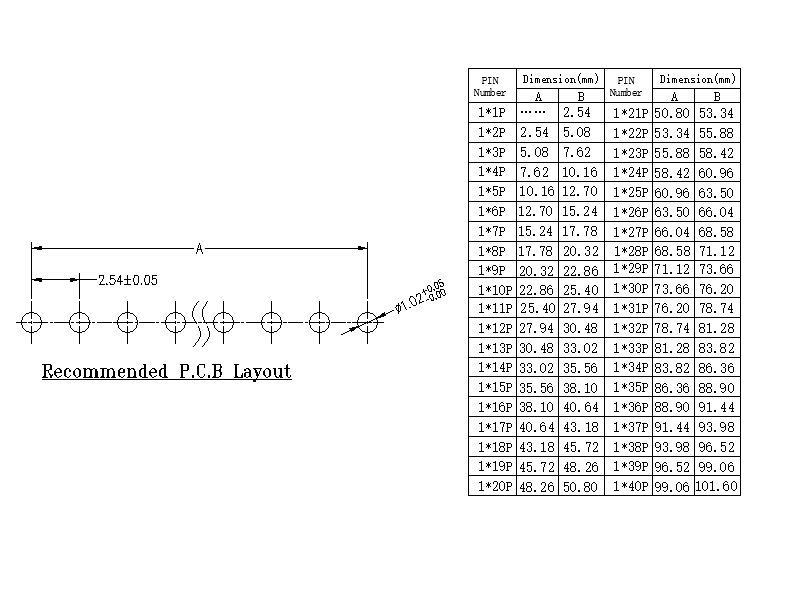

DRAWING
(Contact with sales team to get more detail about the dimensions)
OUR ADVANTAGE
l We provide cost-effective and competitive price products.
l We can design and produce products of any size and shape according to the needs of our customers.
l The product quality is comparable to MOLEX, the price is better.
l All our products are made by Future-proofed Materials - halogen-free, SVHC- free and ROHS compliant.
l Terminal Block passed UL/VDE/CB/CE/CQC/CB
l FULL REFUND in case of Bad Quality or LATE DELIVERY.
l Our core competence is Pin Headers &Female Header & Terminal Block
l Our value message is Quality first, On time delivery, Perfect service and Win-Win.
l Free Sample Offer & Small order welcomed

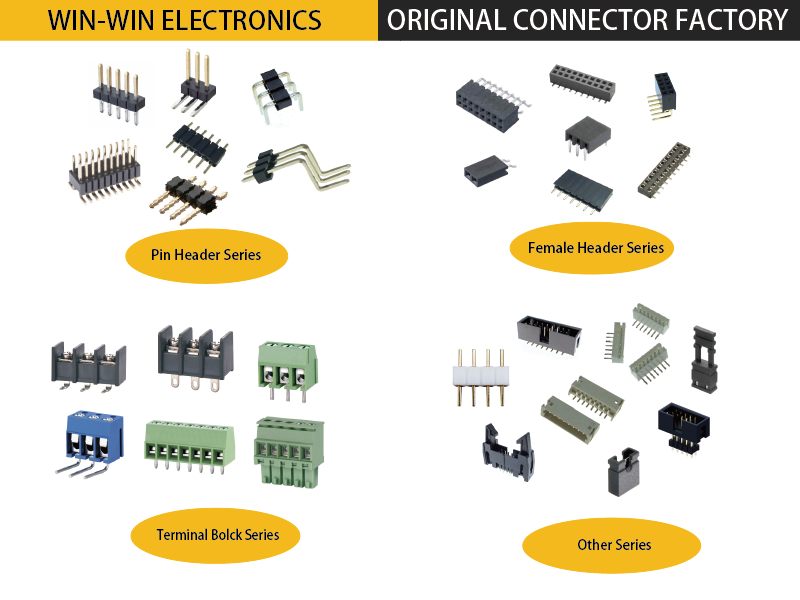

Supply various SPEC. Pin Header / Female Header Series to meet different needs of customers
APPLICATION
Application:smart meters, meters, PCB circuit boards, UPS, inverters, driving recorders,Car anti-theft devices, network switches, routers, notebooks, computers, MID. digital cameras, boards, and Smart communication products, smart home appliances, etc.
