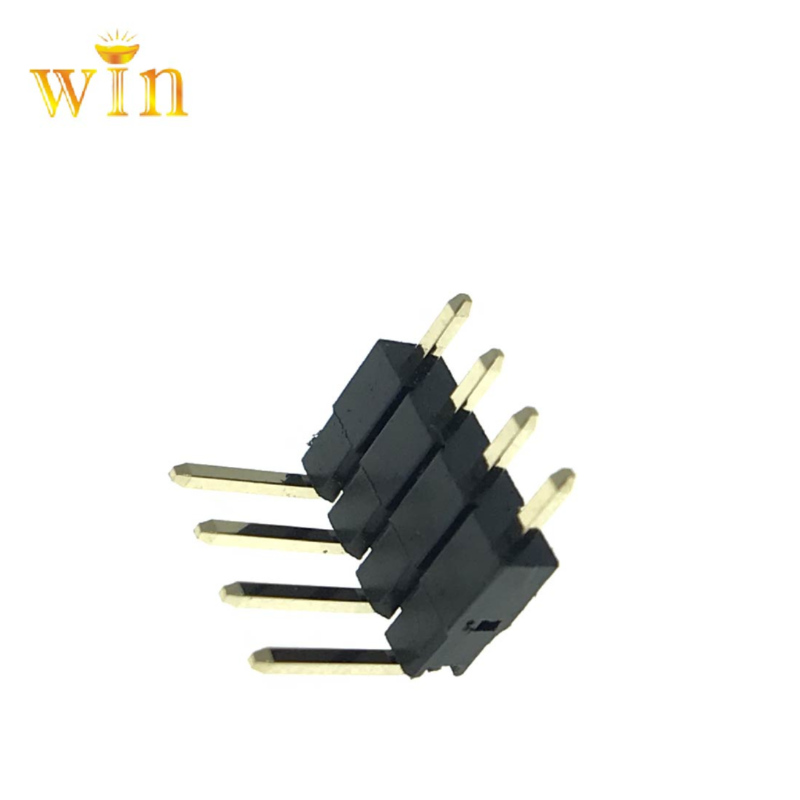

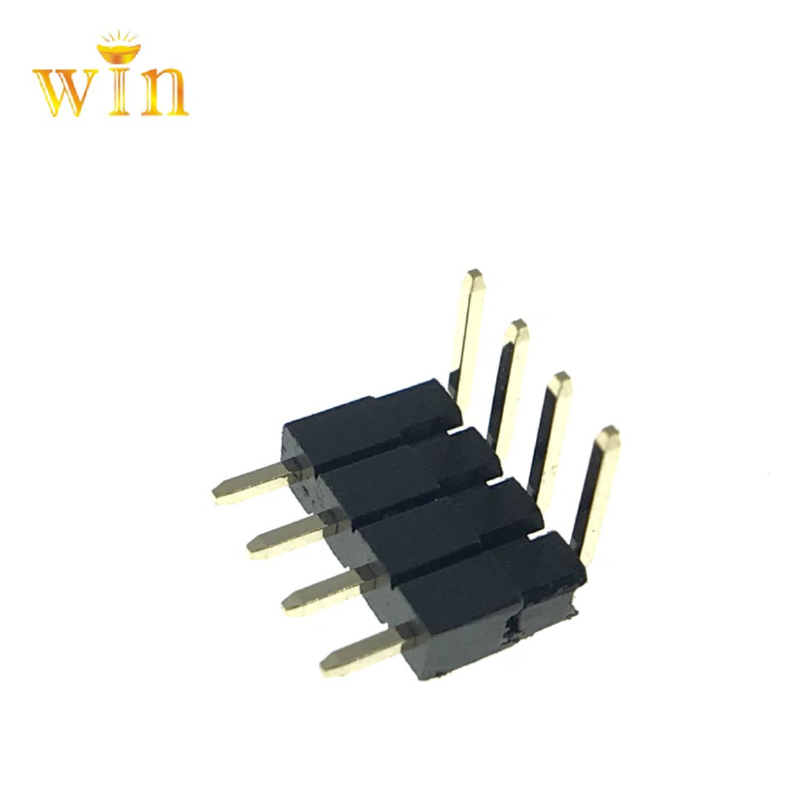

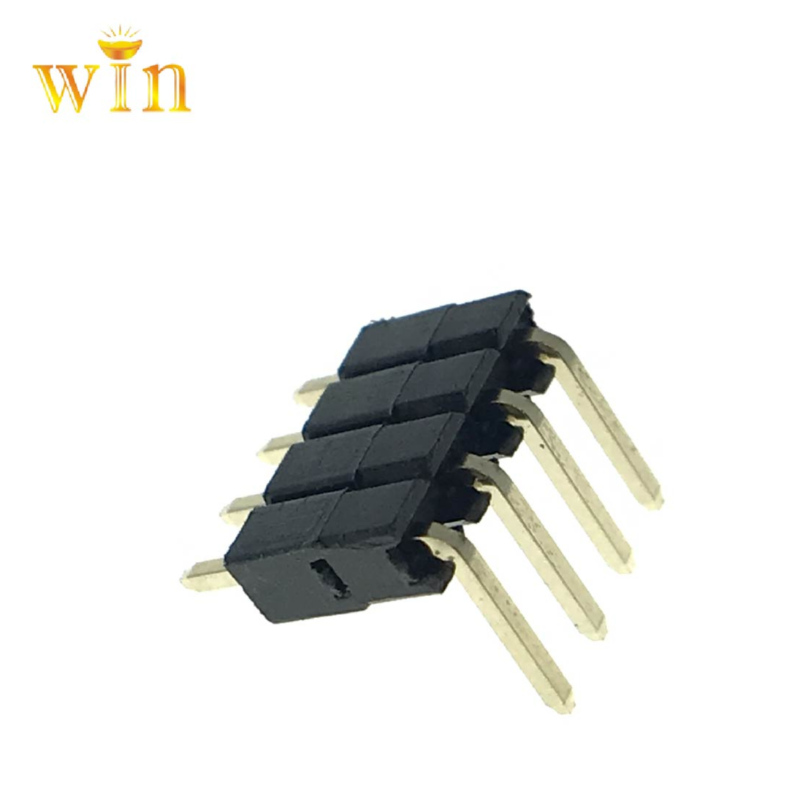

2.54mm 2P~40P 90° right angle two plastics added pin header connector


Keywords :

4p pin header / 4 pin header / 90 pin header


  • Hits : 164
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • 2P to 40P are available to order from our factory
  • dimensions of this model can be customized for your own design
  • Materials are RoHS compliant
  • We offer free samples to make a quality confirmation
  • Small batched are welcomed

Product Details

2.54MM(0.1’’) PITCH PIN HEADER

SPECIFICATION

MATERIALS(CONTACTS):Copper Alloy,Gold or Tin (over Nickel) finish

MATERIALS(HOUSINGS):Standard or High Temperature Plastic,rated to UL94V-0(Standard material PBT+30%GF RoHS)

CURRENT:3A per contact

MAXIMUM VOLTAGE:800V AC, 500V DC

CONTACT RESISTANCE:30mΩ max

INSULATION RESISTANCE:1,000MΩ min

OPERATING TEMPERATURE:-40to 105

DURABILITY:300 mating cycles (gold) or 50 mating cycles(tin)

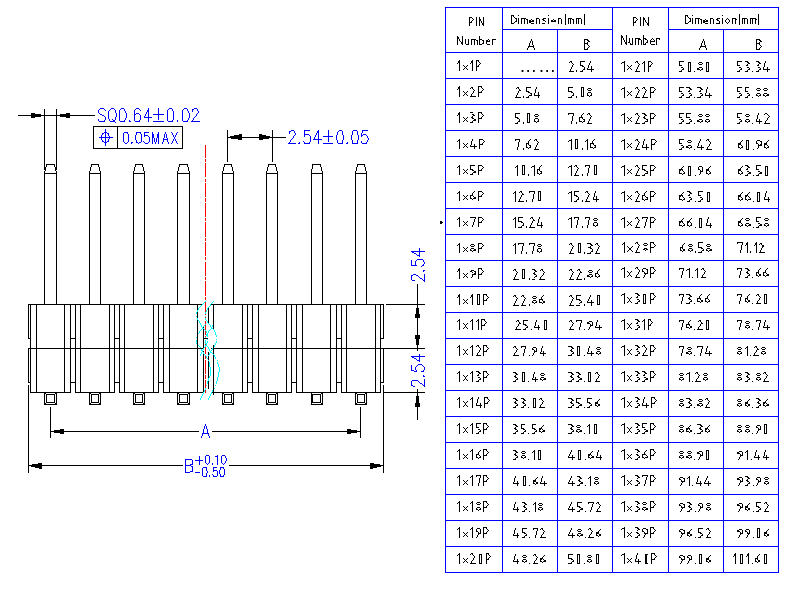

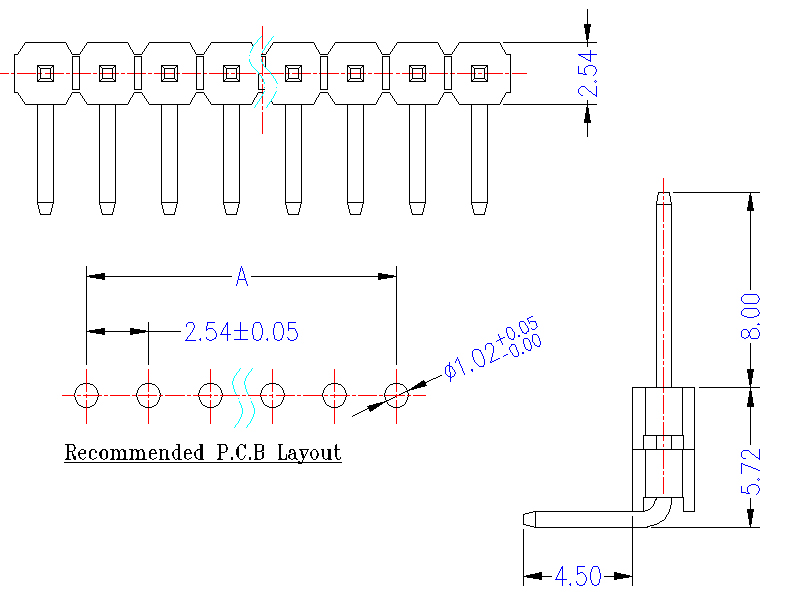

DRAWING

YOU CAN CUSTOMIZE THE DIMENSIONS YOU NEED FOR YOUR DESIGN.

4P drawing .jpg4P drawing 1.jpg

(Contact with sales team to get more detail about the dimensions)



Package in tape: This type of package is for SMT connectors, protect the pins from deformation
Convenient for automatic assembly and pickup processing,and save a lot of labor cost.

Package in Tube: This type of package is suitable for many types of connectors according to needs,this packaging method better protects the pins from deformation.

Package in PE bags:This is the most common packaging, suitable for products where the needle is not easily deformed, the disadvantage is that the product protection is small, the advantage is cost savings.

Package in Blister box:Commonly used packaging, a bit similar to blister tube packaging, can better protect the product stitch.


What's Pin Header?

Pin Header is a kind of electrical connector. We usually abbreviated it as PH or simple header, and have the reputation of universal connectors.This type of connector is widely used in PCB circuit boards in electronics, electrical appliances, and meters.



What's the function of pin header?

Its function is to function as a bridge between blocked or isolated circuits in the PCB board circuit, and responsible for current or signal transmission.



What are hre pin header models?

There are many types of pin headers which are classified according to the standards in the electronics industry to meet different needing. According to the space, it can be roughly divided into 2.54mm (0.1 in), 2.0mm (0.079 in), 1.27mm (0.05 in), 1.0mm (0.04 in), 0.8mm (0.03 in). The distance between pins is commonly referred as pitch in the electronic community. According to the number of rows, there are single row, double row, three rows, etc. According to the package usage, there are patches SMT (surface-mount technology version) and plug-in DIP (pin through hole devices),  among them, SMT pin headers can be divided into horizontal pin header and vertical pin header, and DIP types can be divided into straight insertion pin header and bending insertion pin header. Besides that, we divided it into three types according to their installation method, 180° installation is represented by "S", 90° installation is represented by "W", and SMT installation is represented by "T".



What's the application range of pin header?

Application range: Data processing equipment, Computer, Program control equipment, Electronic measuring equipment, Automatic control equipment, Automation equipment, Communication equipment, etc.
