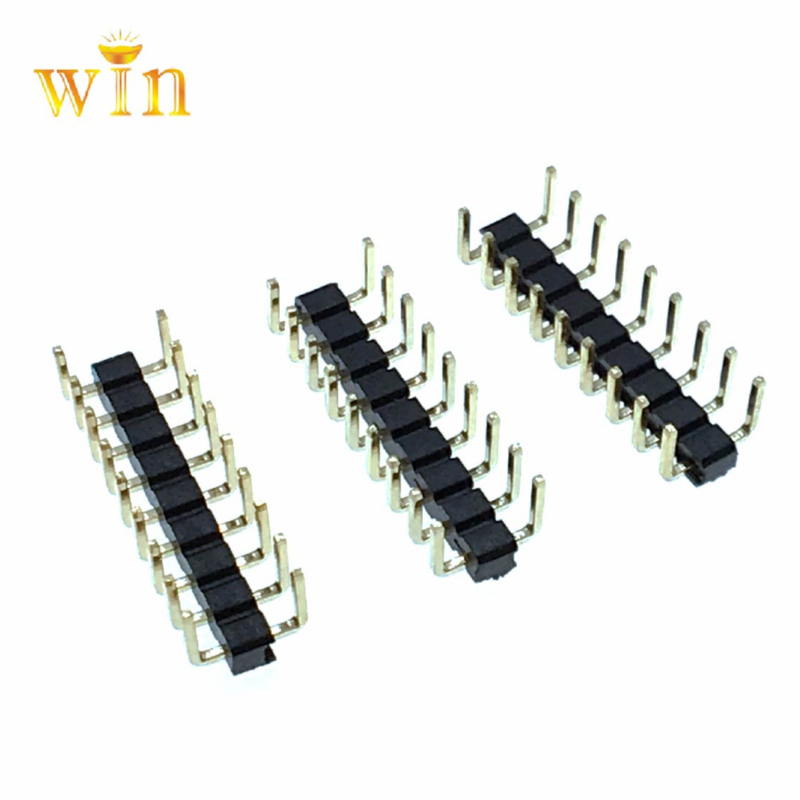

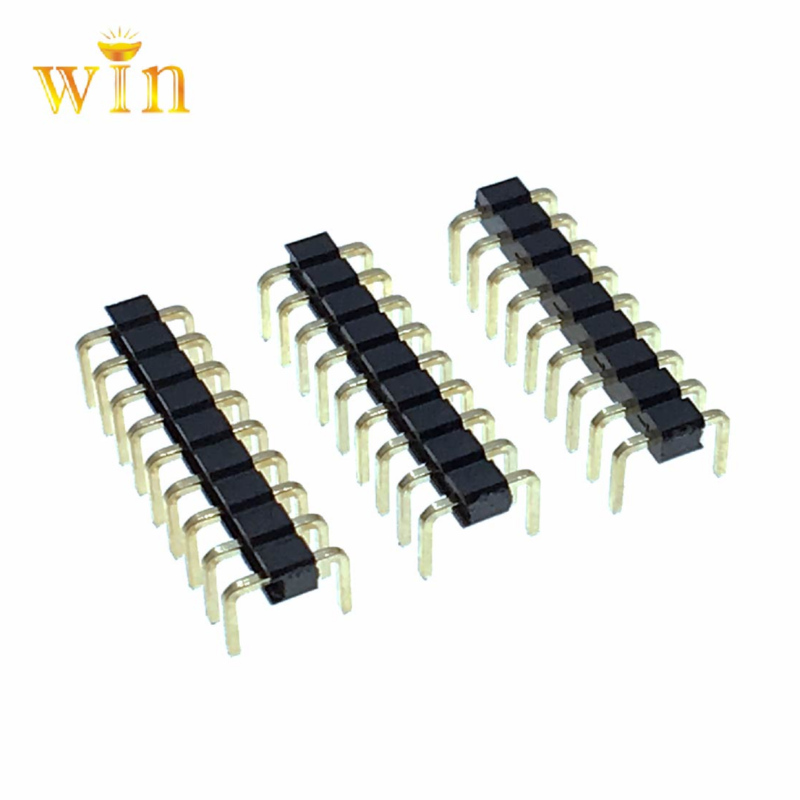

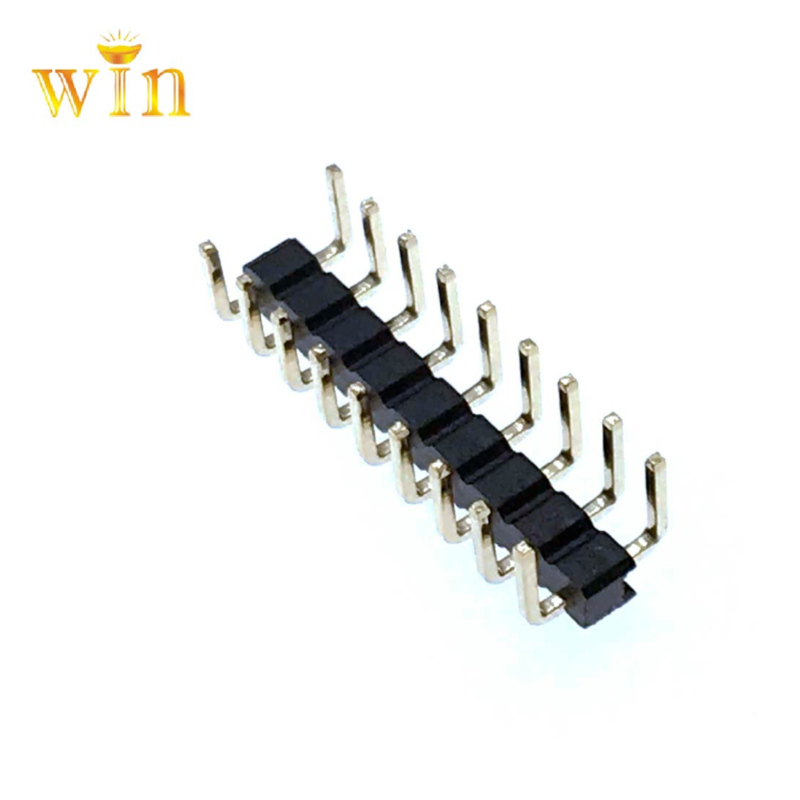

2.54MM 9P U shape pin header


Keywords :

9 pin header / 9p pin header / 9p u pin header


  • Hits : 28
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • We provide cost-effective and competitive price products.
  • We can design and produce products of any size and shape according to the needs of our customers.
  • The product quality is comparable to MOLEX, the price is better.
  • All our products are made by Future-proofed Materials - halogen-free, SVHC- free and ROHS compliant.
  • Free Sample Offer & Small batches welcomed

Product Details

2.54MM(0.1’’) PITCH PIN HEADER

SPECIFICATION

MATERIALS(CONTACTS):Copper Alloy,Gold or Tin (over Nickel) finish

MATERIALS(HOUSINGS):Standard or High Temperature Plastic,rated to UL94V-0

CURRENT:3A per contact

MAXIMUM VOLTAGE:800V AC, 500V DC

CONTACT RESISTANCE:30mΩ max

INSULATION RESISTANCE:1,000MΩ min

OPERATING TEMPERATURE:-40to 105

DURABILITY:300 mating cycles (gold) or 50 mating cycles(tin)

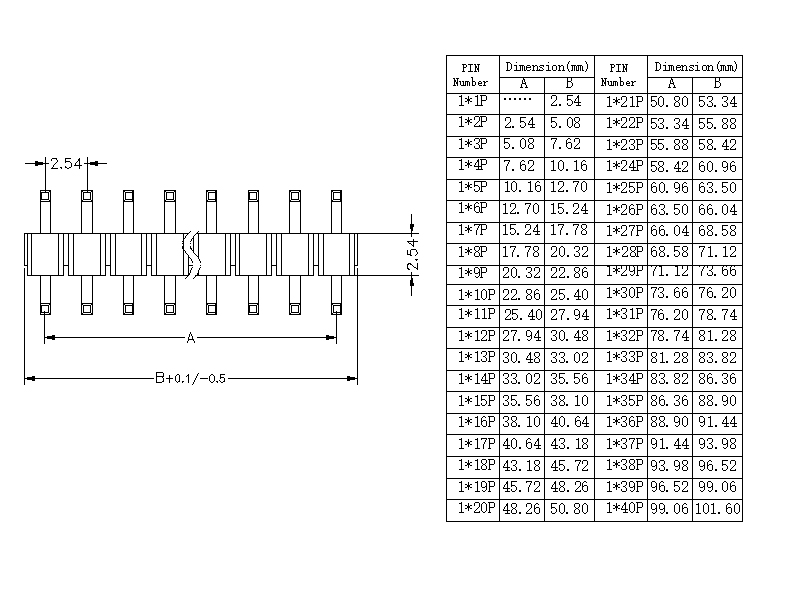

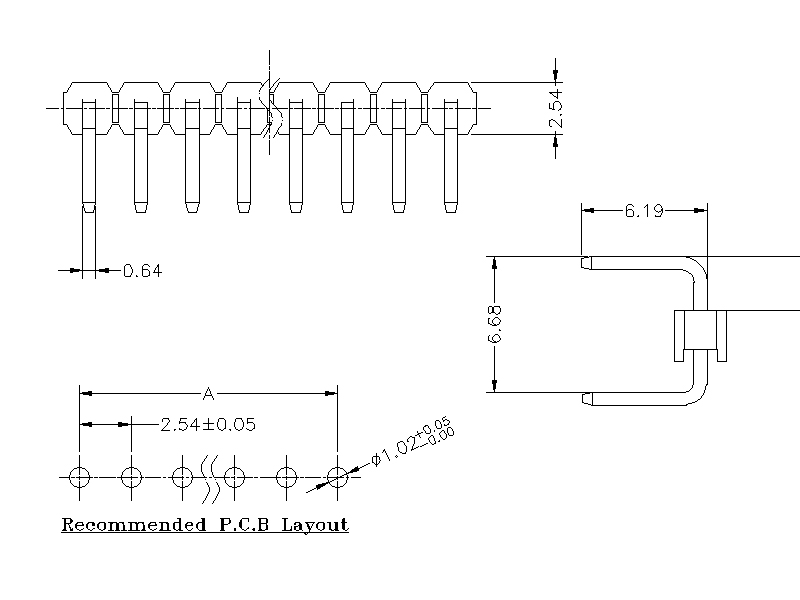

DRAWINGS


1x30 DRAWING1.JPG1x30 DRAWING2.JPG详情页1.jpg详情页2.jpg
