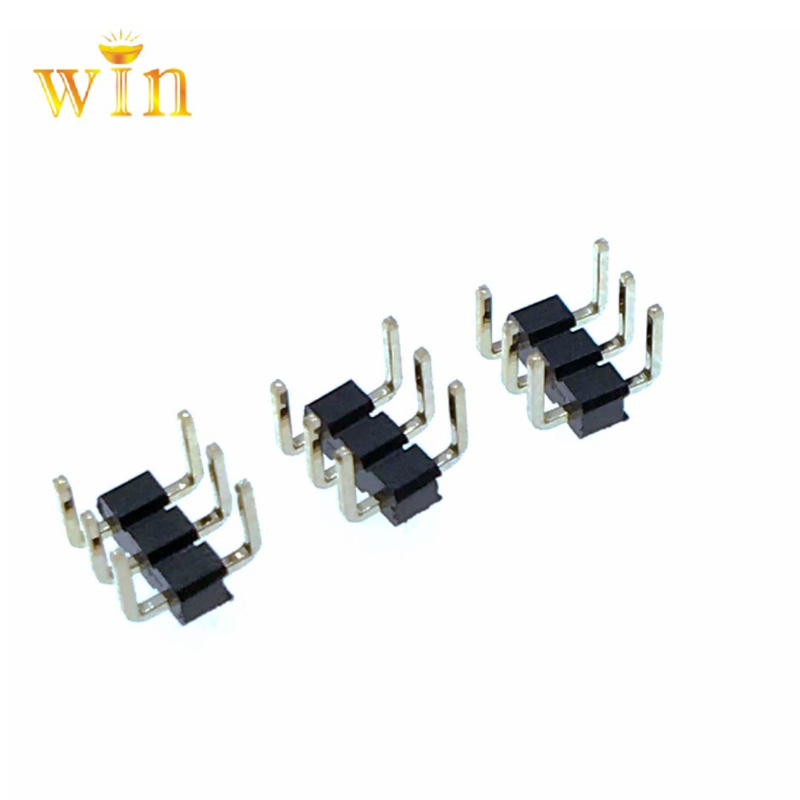

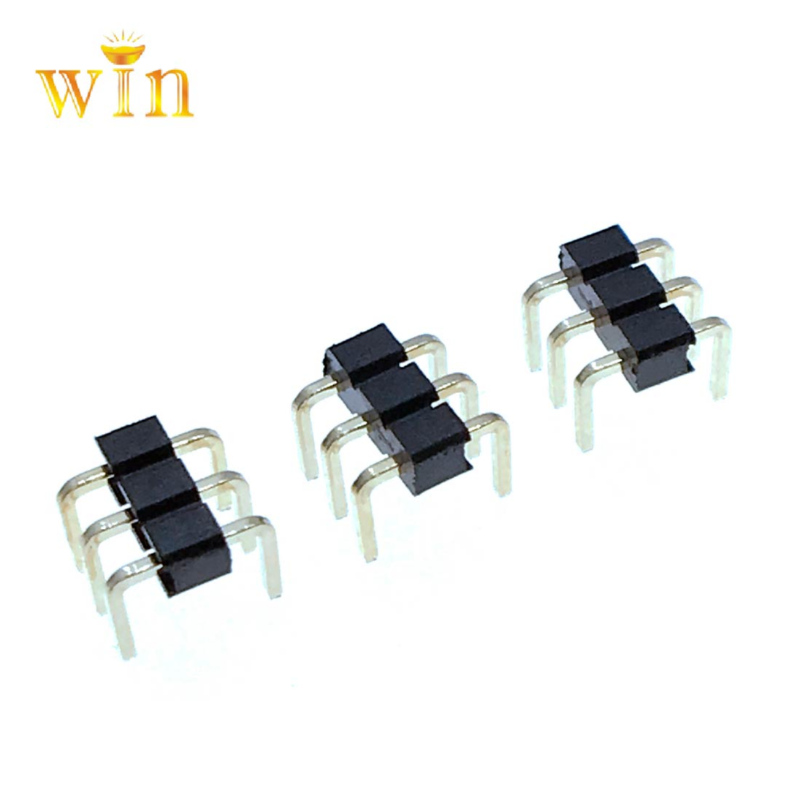

2.54mm U shape 3P single row pin header connector


Keywords :

U shape pin header / 3p pin header / 3 pin header


  • Hits : 16
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

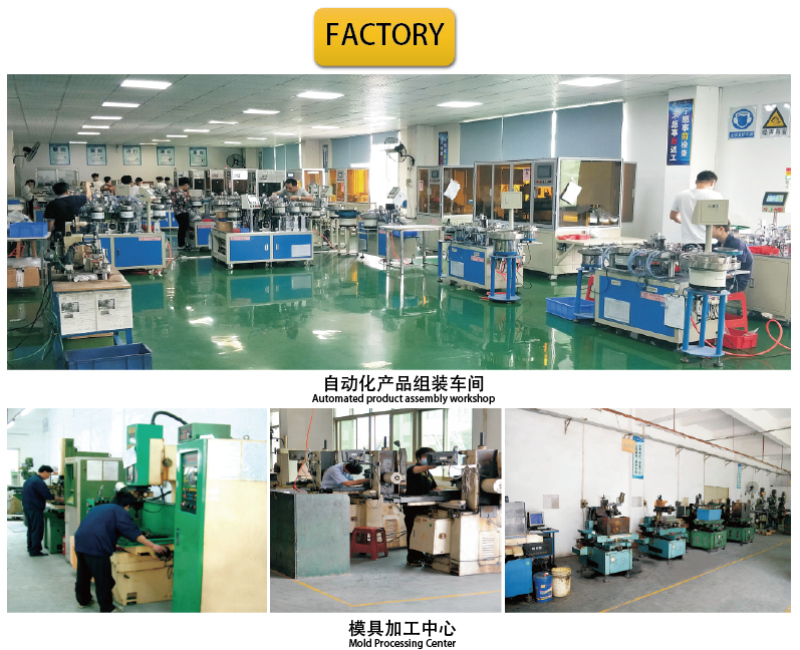

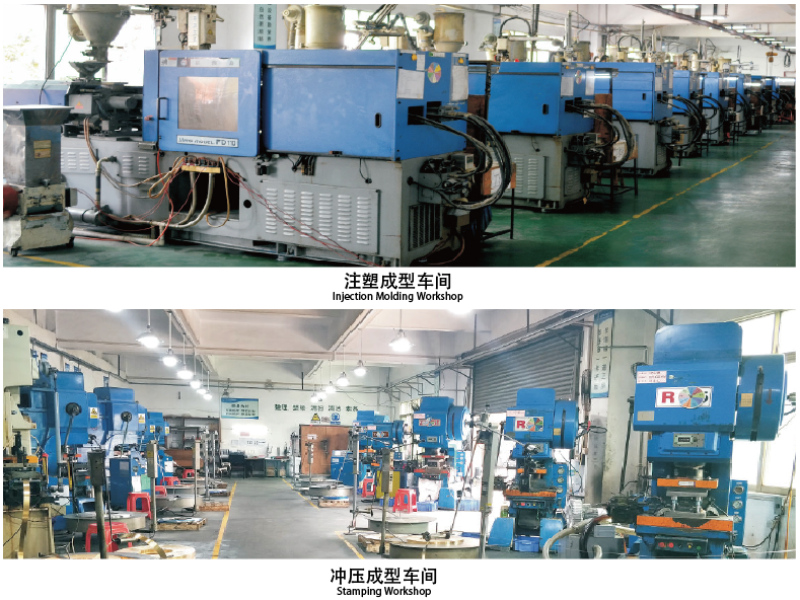

  • Original connector factory
  • The same best quality with lower price
  • Customize any shape or dimension you need
  • All material are RoHS compliant
  • Small batches are welcomed

Product Details

2.54MM(0.1’’) PITCH PIN HEADER

SPECIFICATION

MATERIALS(CONTACTS):Copper Alloy,Gold or Tin (over Nickel) finish

MATERIALS(HOUSINGS):Standard or High Temperature Plastic,rated to UL94V-0

CURRENT:3A per contact

MAXIMUM VOLTAGE:800V AC, 500V DC

CONTACT RESISTANCE:30mΩ max

INSULATION RESISTANCE:1,000MΩ min

OPERATING TEMPERATURE:-40to 105

DURABILITY:300 mating cycles (gold) or 50 mating cycles(tin)

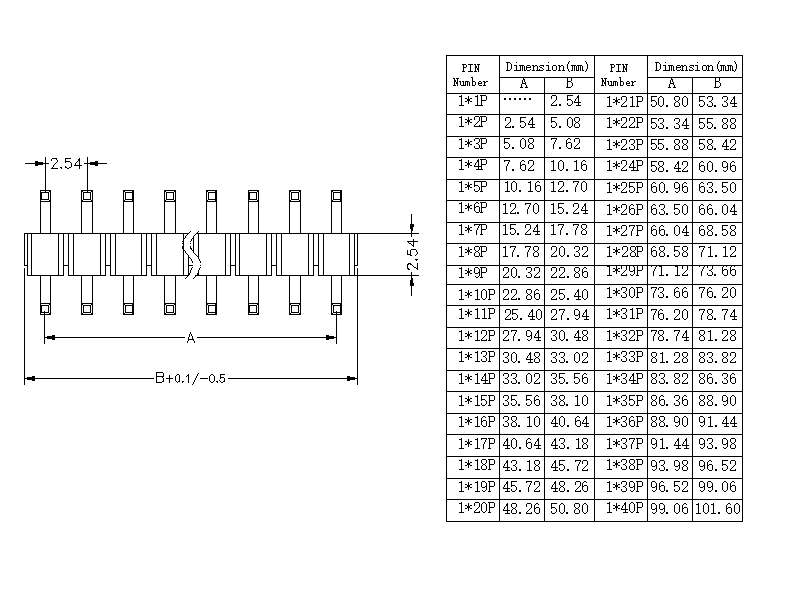

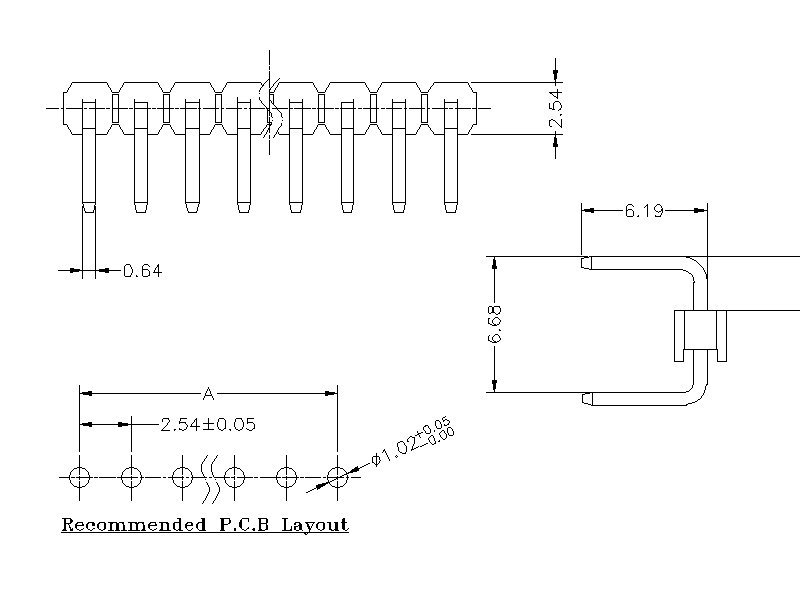

DRAWINGS


1x30 DRAWING1.JPG

1x30 DRAWING2.JPG
