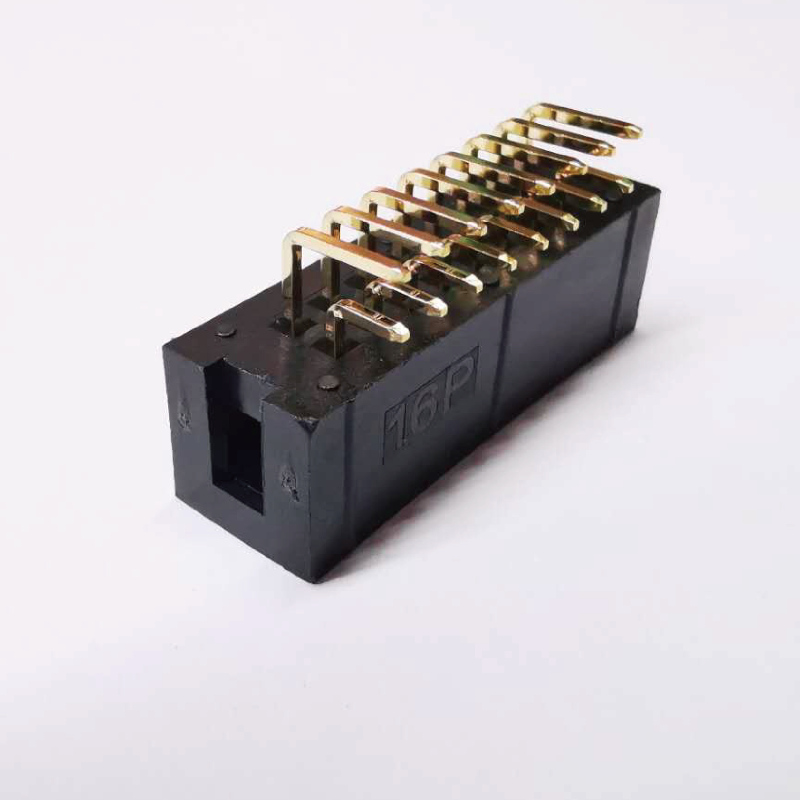

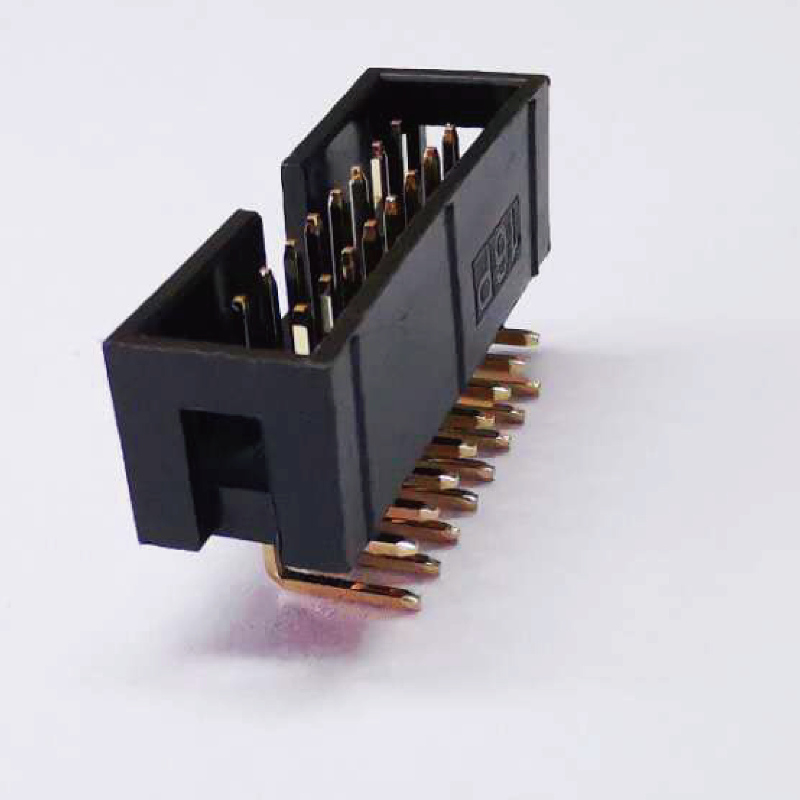

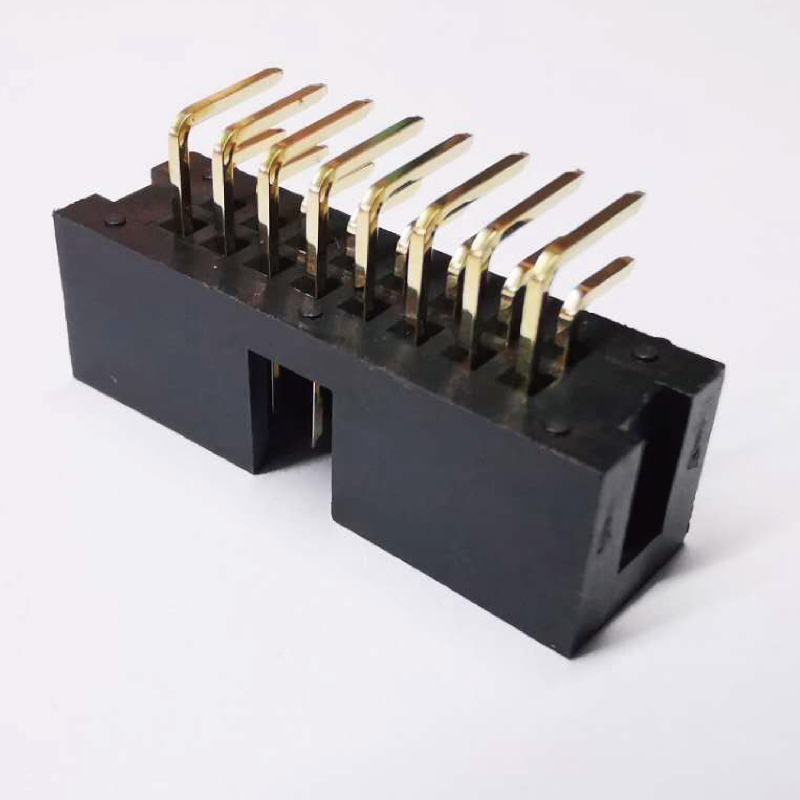

2x8P 2.54mm pitch right-angle DIP box header female socket


Keywords :

16P box header / 2X8P female socket / pin header socket


  • Hits : 7
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • We provide cost-effective and competitive price products.
  • We can design and produce products of any size and shape according to the needs of our customers.
  • The product quality is comparable to MOLEX, the price is better.
  • All our products are made by Future-proofed Materials - halogen-free, SVHC- free and ROHS compliant.
  • Free Sample Offer & Small order welcomed

Product Details

2.54MM(0.1’’) PITCH BOX HEADER

SPECIFICATION

MATERIALS(CONTACTS):Copper Alloy,Gold or Tin (over Nickel) finish

MATERIALS(HOUSINGS):Standard or High Temperature Plastic,rated to UL94V-0

CURRENT:3A per contact

MAXIMUM VOLTAGE:800V AC, 500V DC

CONTACT RESISTANCE:30mΩ max

INSULATION RESISTANCE:1,000MΩ min

OPERATING TEMPERATURE:-40to 105

DURABILITY:300 mating cycles (gold) or 50 mating cycles(tin)

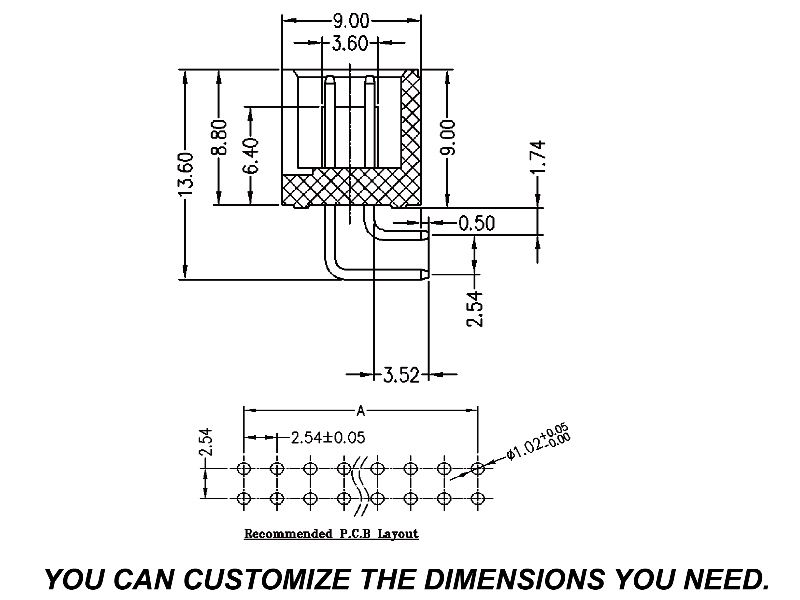

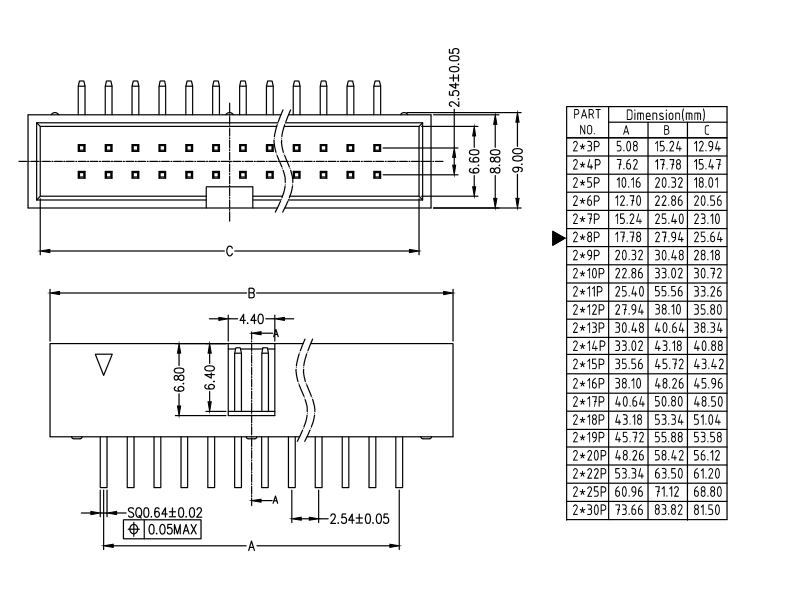

DRAWING

2x8P 2.54mm right-angle box header1.jpg

2x8P 2.54mm right-angle box header2.jpg

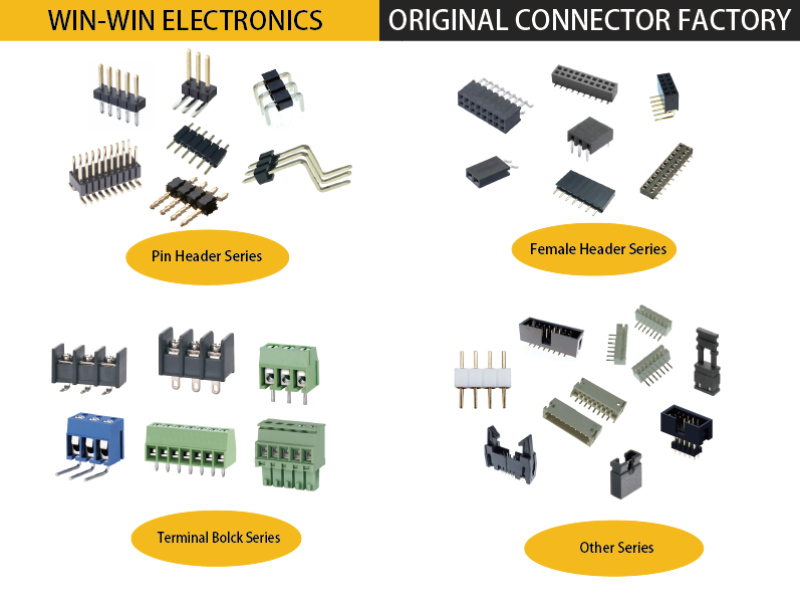

Supply various SPEC. Pin Header / Female Header Series to meet different needs of customers



What are raw materials for pcb connector production?

pcb connector is fabricated from superior materials employing modern technology. The specific raw materials vary with projects. The very first step in a procedure is frequently the most essential. Thus manufacturers in this industry highlight much on raw materials. The quality variant of the raw materials used at the production will frequently result in variation in the character of the final products.


What properties are needed in pin header raw materials?

A finest-quality pin header can not be produced without well-selected raw materials. Different raw materials also determine different performance of products. Varied materials are used for the production of varied types of it. Because of different performance required by products, varied raw materials are also needed. Raw materials play an important role in designing products. A great and unique raw materials selection also determines an excellent and unique product.


Any good manufacturers for pin header set ?
Manufacturers have capacity that is comprehensive and powerful. pin header is broadly implemented in the entire world. Its manufacture in China is of fantastic significance. There are lots of businesses at producing this item. All of them have strong manufacturing capacity and excellent services. Please bear in mind the demands throughout the hunt for great producers. A trusted partner could possibly be found.


Is Win-Win Electronics an OBM?

Win-Win Electronics is a factory who produce many kinds of factory standard connectors. We do not have OBM by now, but our products are as the same quality as many other known brands. For these parts, we are responsible for everything from production and development, supply chain, delivery, and marketing. Our company is a company worthy of attention, dedicated to producing world-class products and providing customized services. We provide our customers with the highest quality products in an uncompromising manner, which helps us establish a solid foothold in the domestic and global markets.
