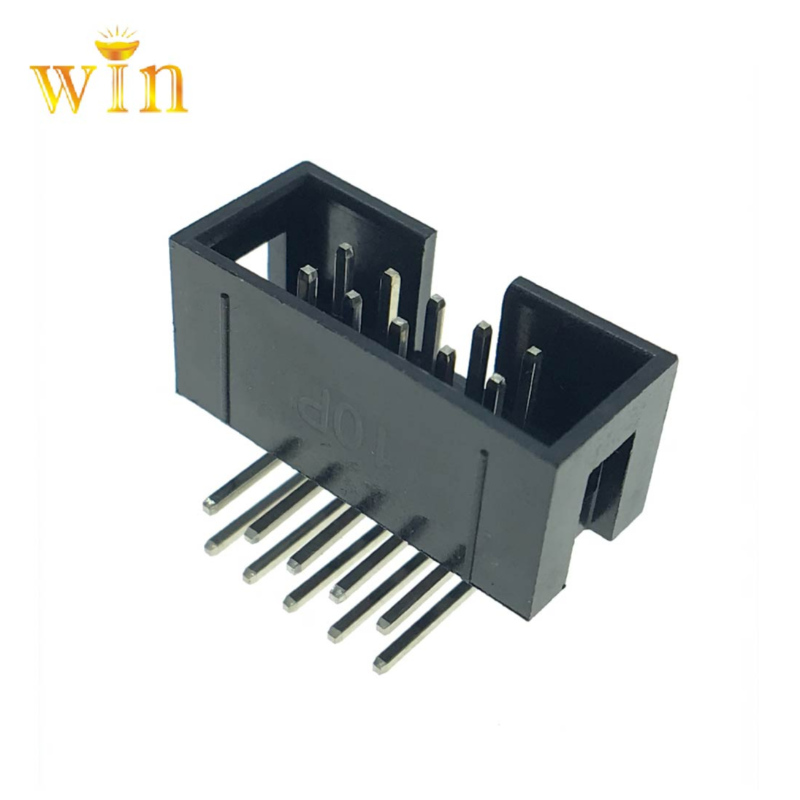

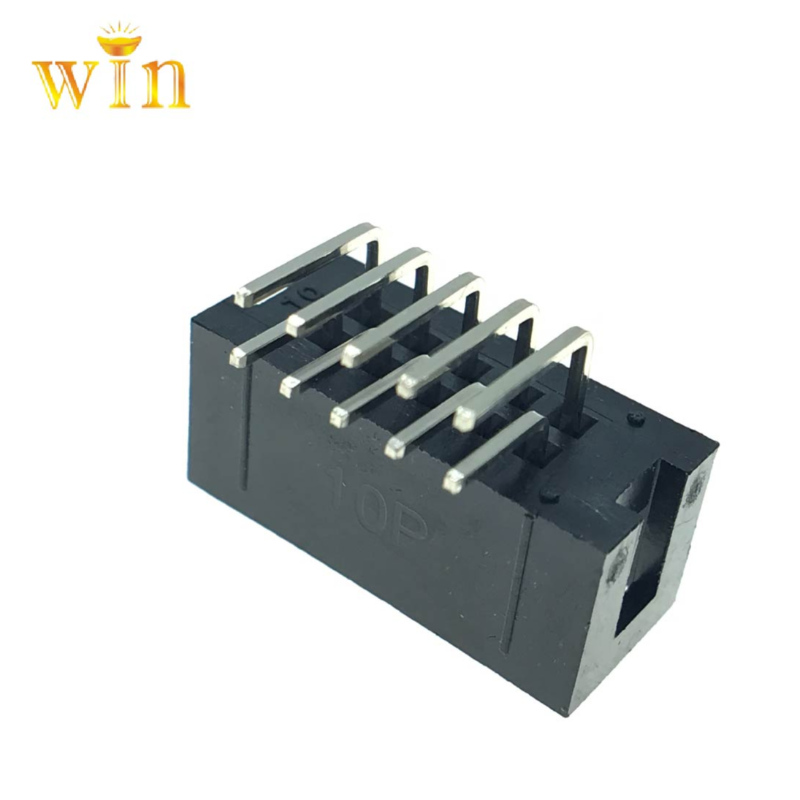

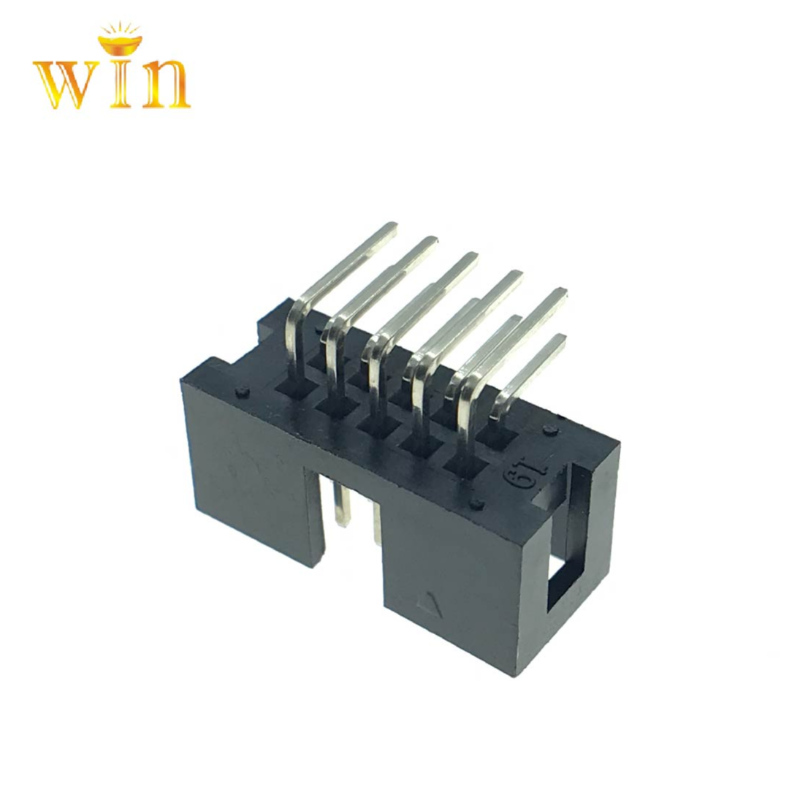

2x5P 2.54mm pitch right-angle DIP box header socket
Five Advantages Of Products
- We provide cost-effective and competitive price products.
- We can design and produce products of any size and shape according to the needs of our customers.
- The product quality is comparable to MOLEX, the price is better.
- All our products are made by Future-proofed Materials - halogen-free, SVHC- free and ROHS compliant
- Free Sample Offer & Small order welcomed
Product Details
2.54MM(0.1’’) PITCH BOX HEADER
SPECIFICATION
MATERIALS(CONTACTS):Copper Alloy,Gold or Tin (over Nickel) finish
MATERIALS(HOUSINGS):Standard or High Temperature Plastic,rated to UL94V-0
CURRENT:3A per contact
MAXIMUM VOLTAGE:800V AC, 500V DC
CONTACT RESISTANCE:30mΩ max
INSULATION RESISTANCE:1,000MΩ min
OPERATING TEMPERATURE:-40℃ to 105℃
DURABILITY:300 mating cycles (gold) or 50 mating cycles(tin)

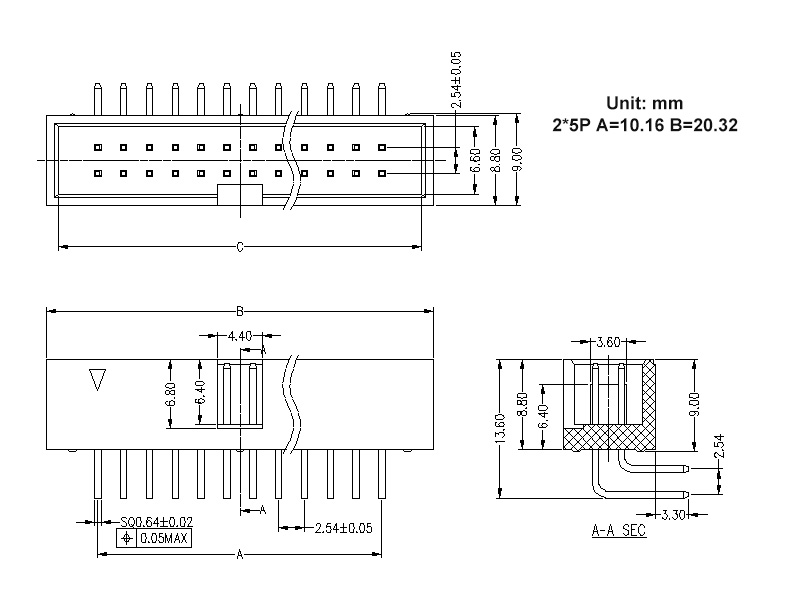

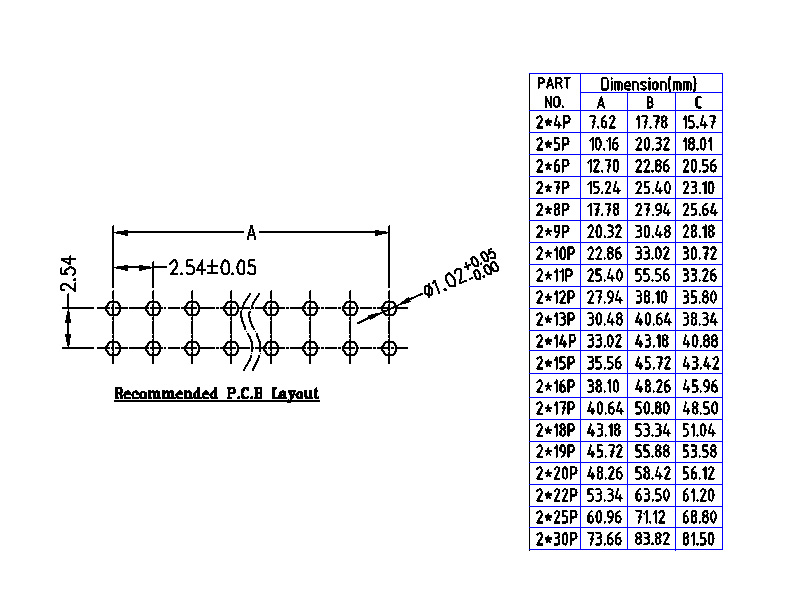

DRAWING
