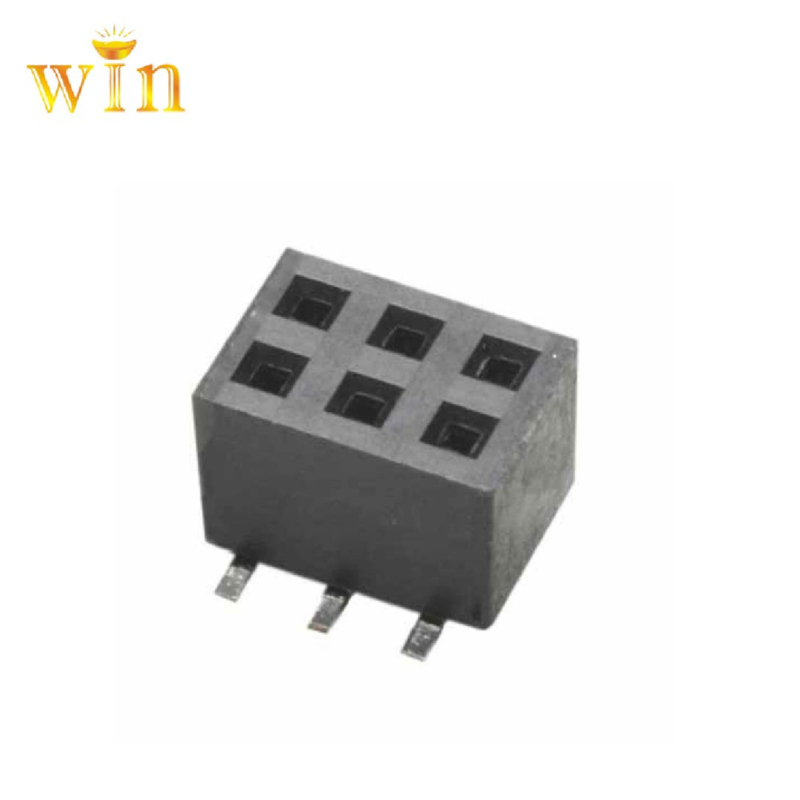

2.0mm 2x3P SMT vertical model female header pin header socket


Keywords :

female header / pin header socket / 2x3P pin header socket


  • Hits : 6
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • Original factory of all kinds of factory standard connector
  • All dimension can be customized
  • You can customize the shape you need accoring to your design
  • The product quality is comparable to MOLEX, the price is better.
  • Free Sample Offer & Small batches order welcomed

Product Details

2.54MM(0.1’’) PITCH FEMALE HEADER

SPECIFICATION
Current Rating:           2 Amp
Insulator Resistance:     1000 MΩ MIN
Dielectric Withstanding:  AC 500V
Contact resistance:       20mΩ MAX.
Operating Temp.:          -40℃ to +105℃
Max processing Temp:      230℃ for 30 to 60 seconds  (260℃for 10 seconds)
Insulator Material:       PA6T+30% UL94V-0 ROHS
Contact Material:         Phosphor Bronze
Plated(*Standard):        Gold flash all over

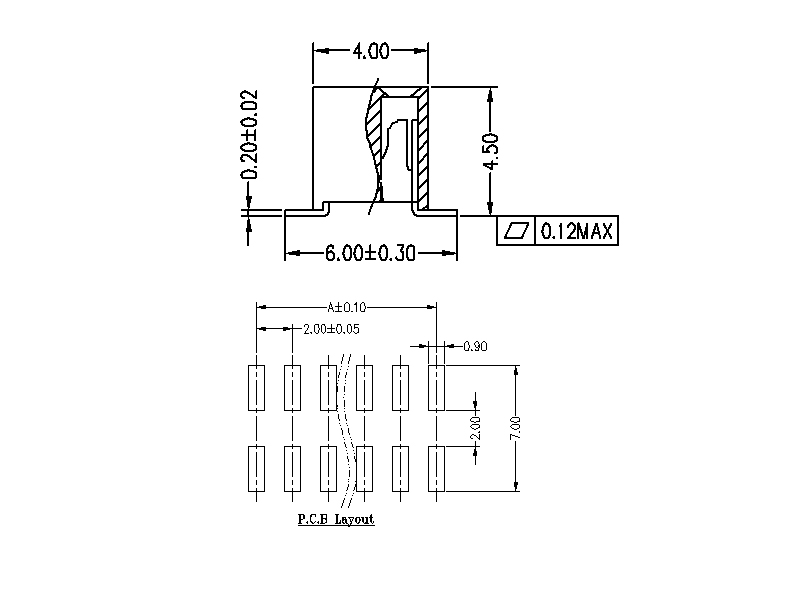

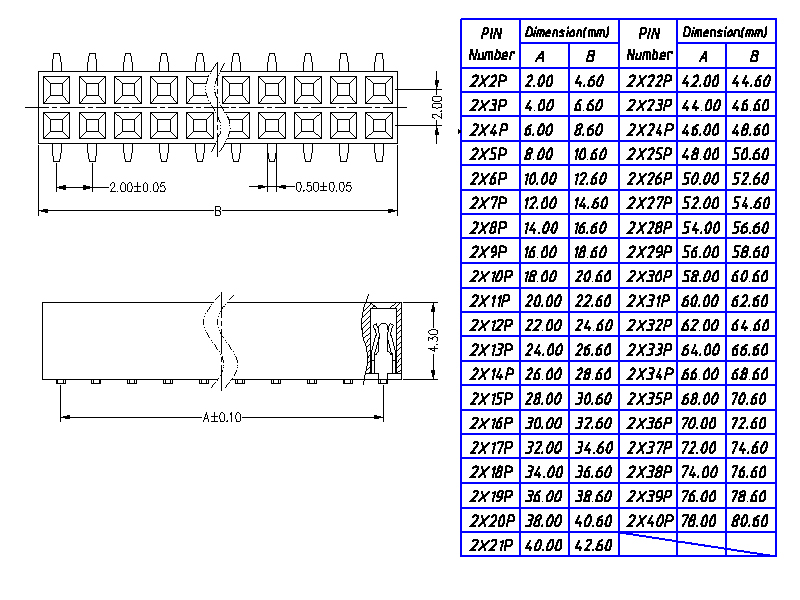

DRAWING

The dimension of this model are listed as below. You can select the available deimension according to your design.

2.0mm SMT vertical model female header pin header socket 1.jpg2.0mm SMT vertical model female header pin header socket 2.jpg详情页1.jpg详情页2.jpg详情页3.jpg详情页4.jpg
