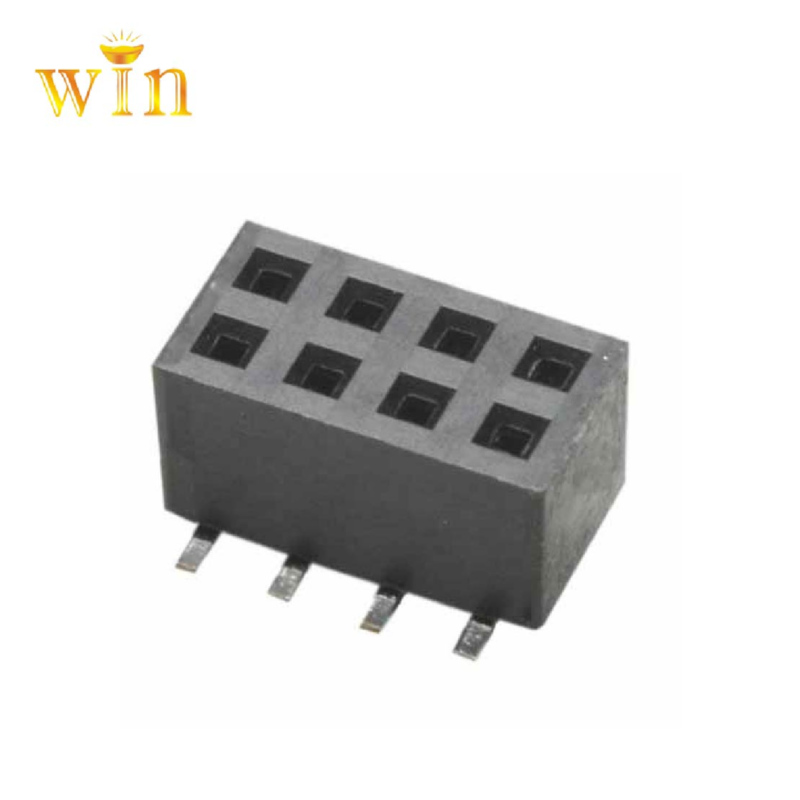

2.0mm 2x4P SMT vertical model female header pin header socket


Keywords :

2x4P pin header socket / 8P pin header socket / 2x4P female header


  • Hits : 1233
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • We provide cost-effective and competitive price products.
  • We can design and produce products of any size and shape according to the needs of our customers.
  • The product quality is comparable to MOLEX, the price is better.
  • All our products are made by Future-proofed Materials - halogen-free, SVHC- free and ROHS compliant.
  • Free Sample Offer & Small batches welcomed

Product Details


2.0 MM(0.079’’) PITCH FEMALE HEADER


SPECIFICATIONS

Current Rating:           2 Amp
Insulator Resistance:     1000 MΩ MIN
Dielectric Withstanding:  AC 500V
Contact resistance:       20mΩ MAX.
Operating Temp.:          -40℃ to +105℃
Max processing Temp:      230℃ for 30 to 60 seconds  (260℃for 10 seconds)
Insulator Material:       PA6T+30% UL94V-0 ROHS
Contact Material:         Phosphor Bronze
Plated(*Standard):        Gold flash all over

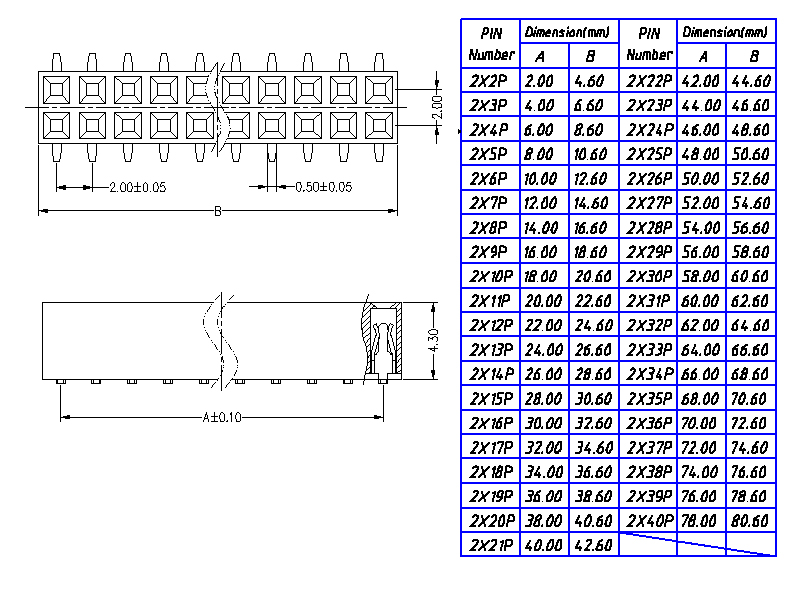

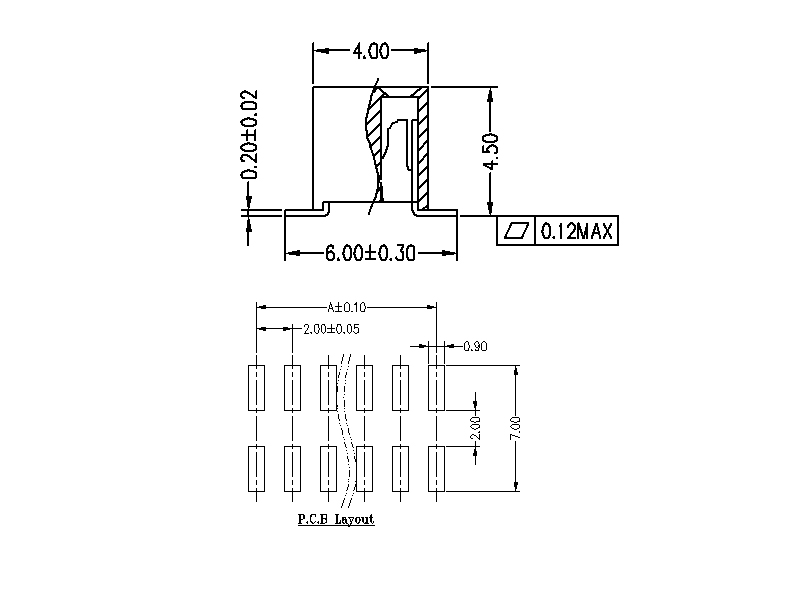

DRAWING

The dimension of this model are listed as below. You can select the available deimension according to your design.

2.0mm SMT vertical model female header pin header socket 1.jpg2.0mm SMT vertical model female header pin header socket 2.jpg
