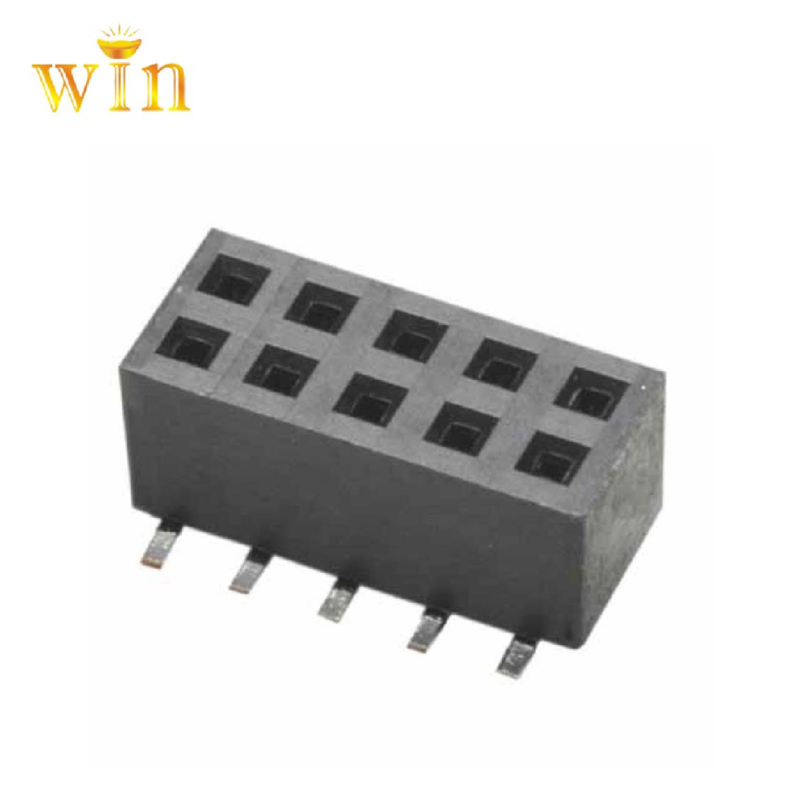

2.0mm 2x5P SMT vertical model female header pin header socket


Keywords :

10P pin heade socket / 10P female header / 2x5p pin header socket


  • Hits : 8
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • All our products are made by Future-proofed Materials - halogen-free, SVHC- free and ROHS compliant.
  • We can design and produce products of any size and shape according to the needs of our customers.
  • The product quality is comparable to MOLEX, the price is better.
  • FULL REFUND in case of Bad Quality or LATE DELIVERY.
  • Free Sample Offer & Small batches welcomed

Product Details

2.0MM(0.079’’) PITCH FEMALE HEADER

SPECIFICATION

Current Rating:           2 Amp
Insulator Resistance:     1000 MΩ MIN
Dielectric Withstanding:  AC 500V
Contact resistance:       20mΩ MAX.
Operating Temp.:          -40℃ to +105℃
Max processing Temp:      230℃ for 30 to 60 seconds  (260℃for 10 seconds)
Insulator Material:       PA6T+30% UL94V-0 ROHS
Contact Material:         Phosphor Bronze
Plated(*Standard):        Gold flash all over

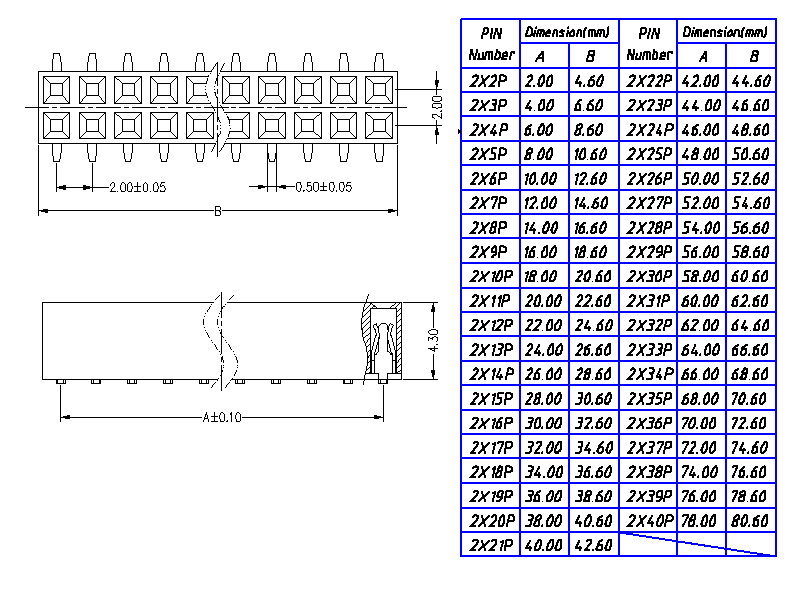

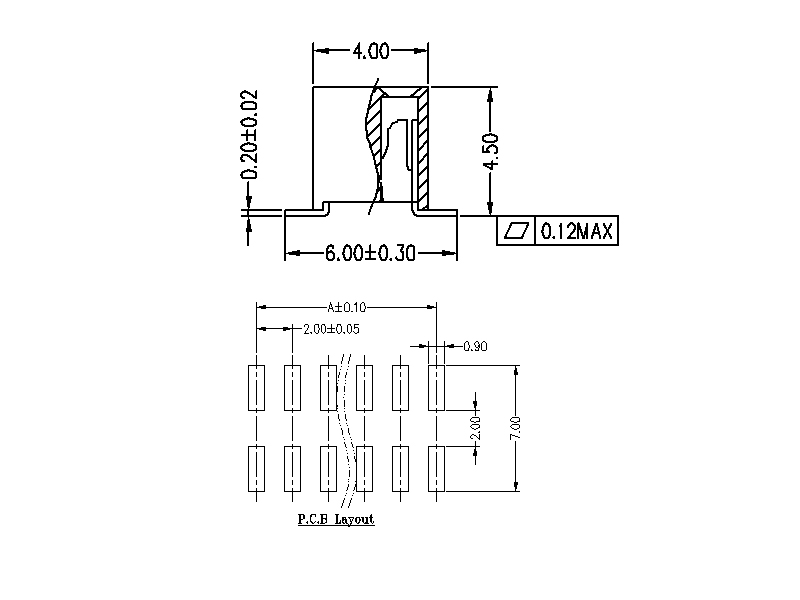

DRAWING

2.0mm SMT vertical model female header pin header socket 1.jpg2.0mm SMT vertical model female header pin header socket 2.jpg详情页1.jpg详情页2.jpg详情页3.jpg详情页4.jpg
