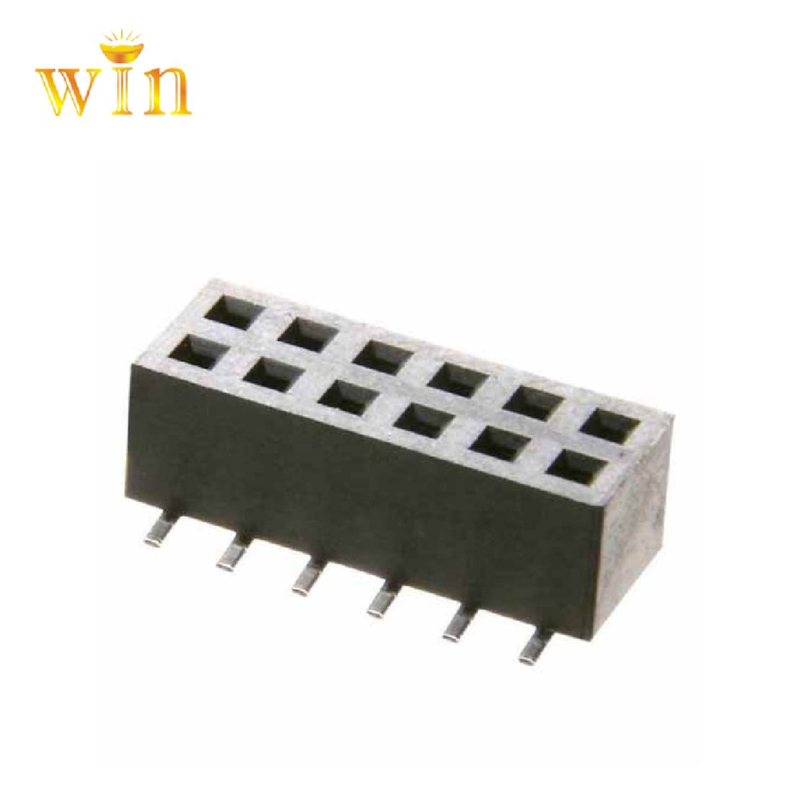

2.0mm 2x6P SMT vertical model female header pin header socket


Keywords :

12p pin header socket / 2x6p pin header socket / 12p female header


  • Hits : 280
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • We provide cost-effective and competitive price products.
  • We can design and produce products of any size and shape according to the needs of our customers.
  • The product quality is comparable to MOLEX, the price is better.
  • All our products are made by Future-proofed Materials - halogen-free, SVHC- free and ROHS compliant.
  • Free Sample Offer & Small batches welcomed

Product Details

2.0MM(0.079’’) PITCH FEMALE HEADER

SPECIFICATION

Current Rating:           2 Amp
Insulator Resistance:     1000 MΩ MIN
Dielectric Withstanding:  AC 500V
Contact resistance:       20mΩ MAX.
Operating Temp.:          -40℃ to +105℃
Max processing Temp:      230℃ for 30 to 60 seconds  (260℃for 10 seconds)
Insulator Material:       PA6T+30% UL94V-0 ROHS
Contact Material:         Phosphor Bronze

Plated(*Standard):        Gold flash all over

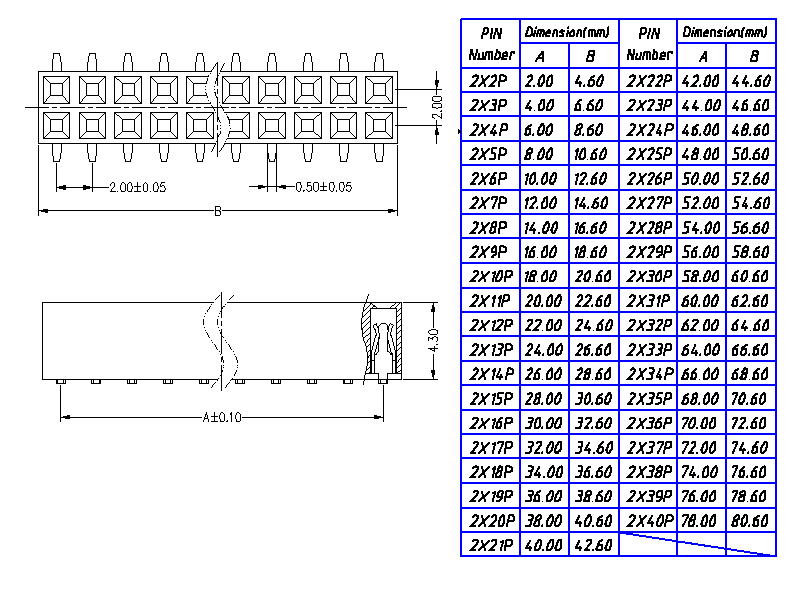

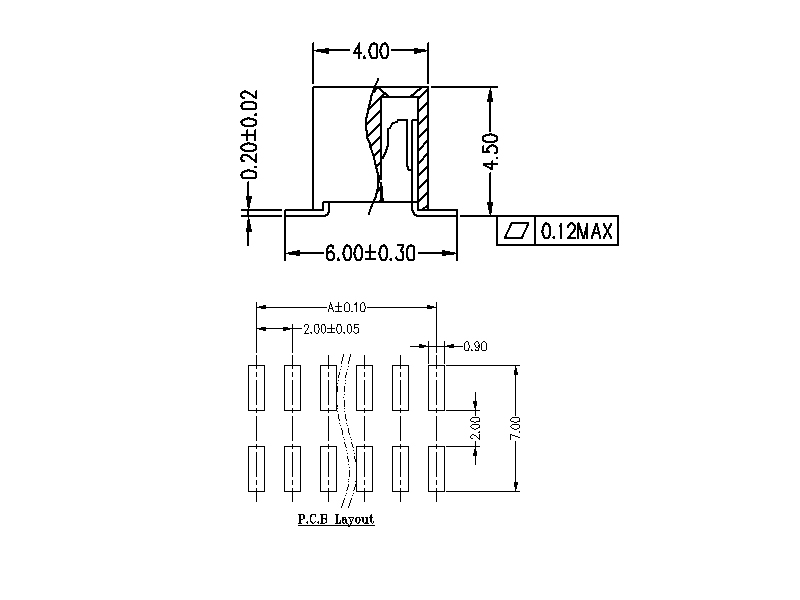

DRAWING

2.0mm SMT vertical model female header pin header socket 1.jpg2.0mm SMT vertical model female header pin header socket 2.jpg

(Contact with sales team if any query about the dimensions)



What's the minimum order quantity ?

For the minimum purchase amount for products, please consult with our customer services.


Does SMT connector headers have warranty period?

Each headers has the warranty period. During the warranty period, the product could be maintained and repaired for free. The warranty period may be extended if it is required by you. You could have the confidence that our products are of high quality and are almost in no need of repair during the warranty period.


Any discount for large order of each modeo connectors ?

By buying connectors in big amounts, you will get a much better price than exhibited on our site. In the event the costs for bulk volume or wholesale purchases aren't listed on the website, please contact our customer Support to get an easy and easy discount petition.
