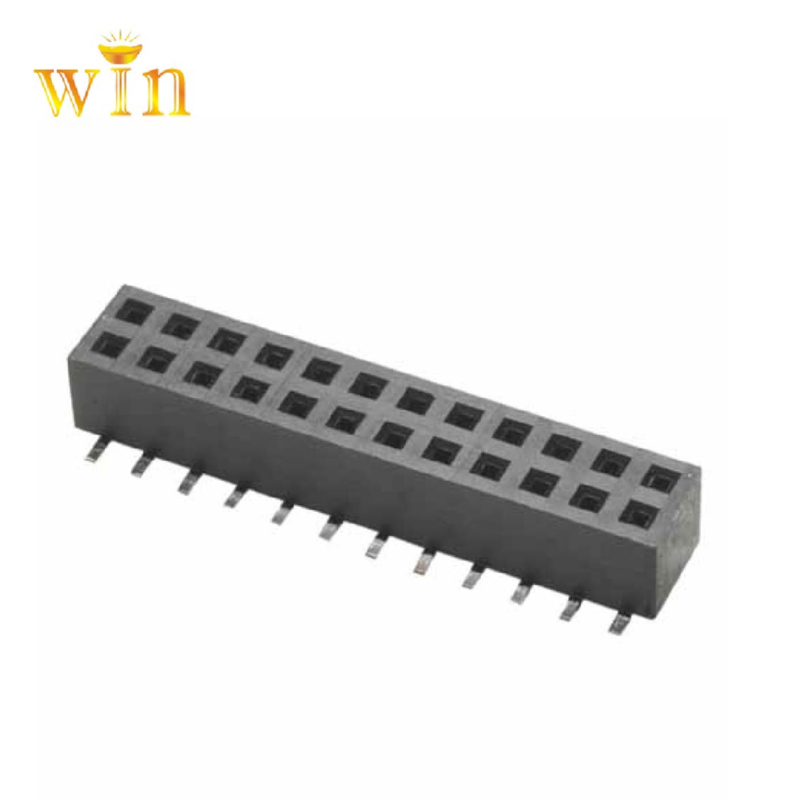

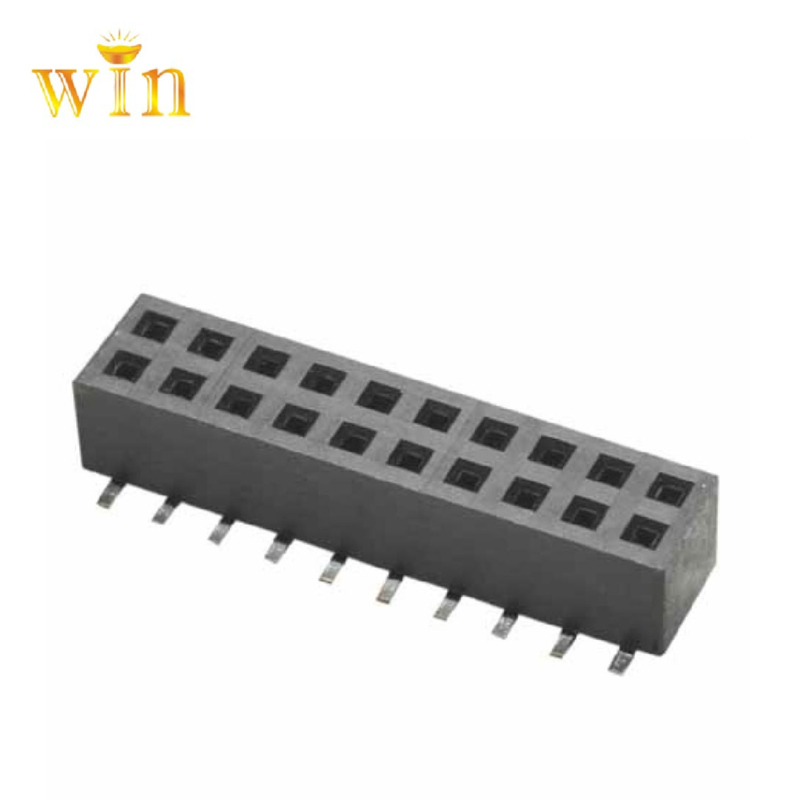

2.0mm 2x10P SMT vertical model female header pin header socket
Five Advantages Of Products
- We can design and produce products of any size and shape according to the needs of our customers.
- All our products are made by Future-proofed Materials - halogen-free, SVHC- free and ROHS compliant.
- We provide cost-effective and competitive price products.
- We provide cost-effective and competitive price products.
- Free Sample Offer & Small batches welcomed
Product Details
2.0MM(0.079’’) PITCH FEMALE HEADER
SPECIFICATION
Current Rating: 2 AmpInsulator Resistance: 1000 MΩ MIN
Dielectric Withstanding: AC 500V
Contact resistance: 20mΩ MAX.
Operating Temp.: -40℃ to +105℃
Max processing Temp: 230℃ for 30 to 60 seconds (260℃for 10 seconds)
Insulator Material: PA6T+30% UL94V-0 ROHS
Contact Material: Phosphor Bronze
Plated(*Standard): Gold flash all over

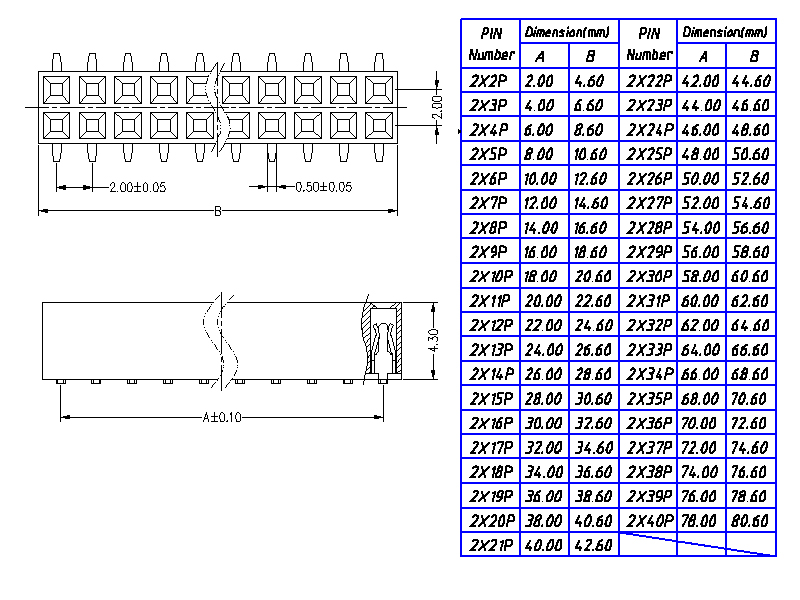

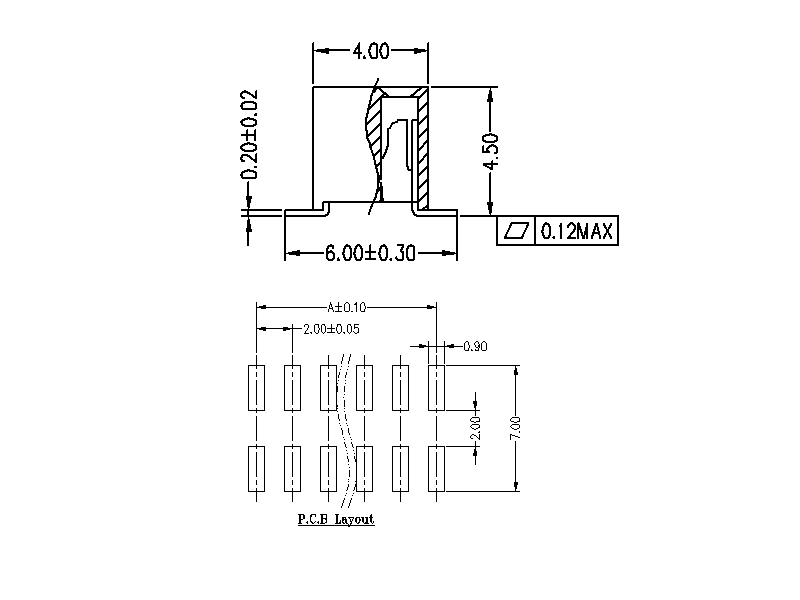

DRAWING
(Contact with sales team if any query about the dimensions)
