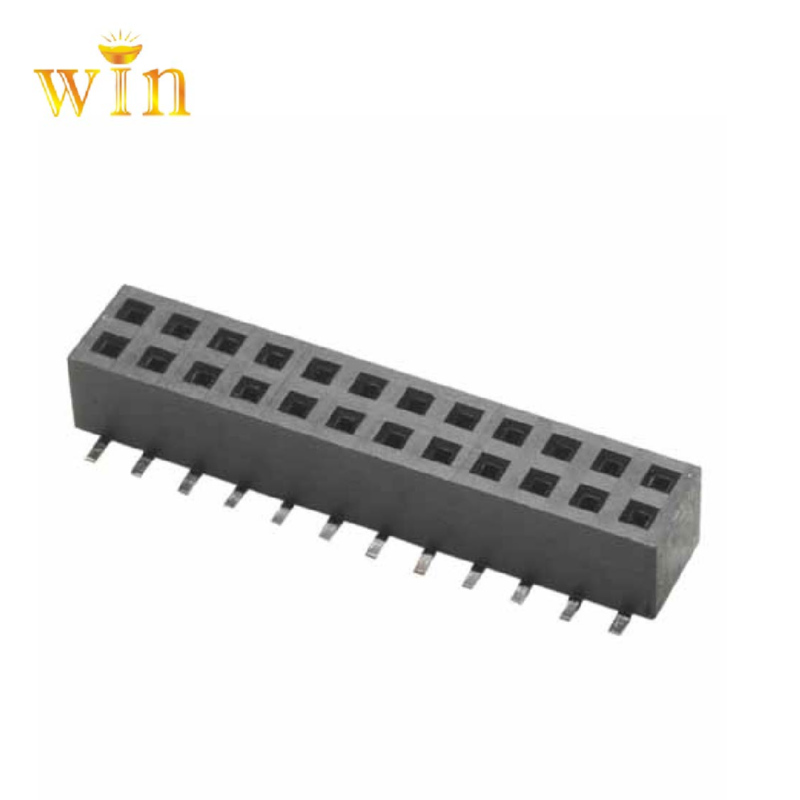

2.0mm 2x12P SMT vertical model female header pin header socket


Keywords :

24p female header / 24p pin heade socket / 2x12p pin header socket


  • Hits : 123
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • We provide cost-effective and competitive price products.
  • We can design and produce products of any size and shape according to the needs of our customers.
  • All our products are made by Future-proofed Materials - halogen-free, SVHC- free and ROHS compliant.
  • FULL REFUND in case of Bad Quality or LATE DELIVERY.
  • Free Sample Offer & Small batches welcomed

Product Details

2.0MM(0.079’’) PITCH FEMALE HEADER

SPECIFICATION

Current Rating:           2 Amp
Insulator Resistance:     1000 MΩ MIN
Dielectric Withstanding:  AC 500V
Contact resistance:       20mΩ MAX.
Operating Temp.:          -40℃ to +105℃
Max processing Temp:      230℃ for 30 to 60 seconds(260℃for 10 seconds)
Insulator Material:       PA6T+30% UL94V-0 ROHS
Contact Material:         Phosphor Bronze

Plated(*Standard):        Gold flash all over

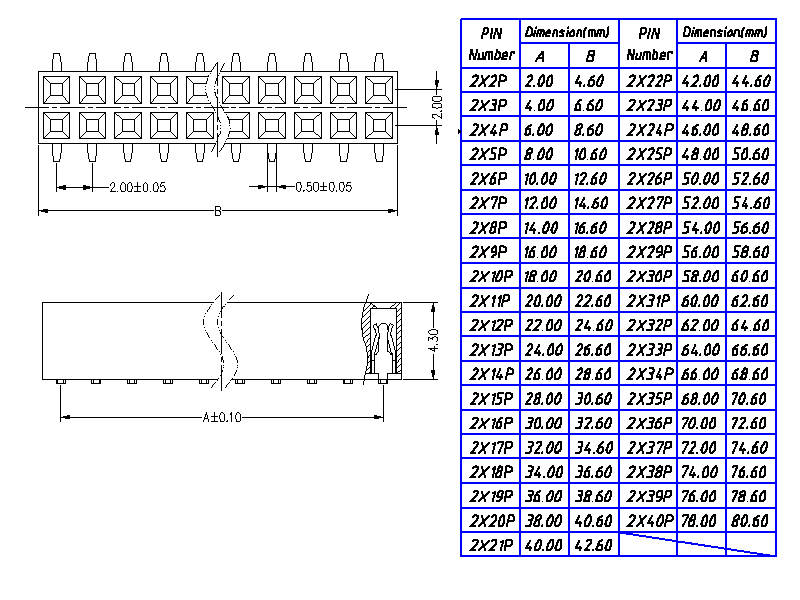

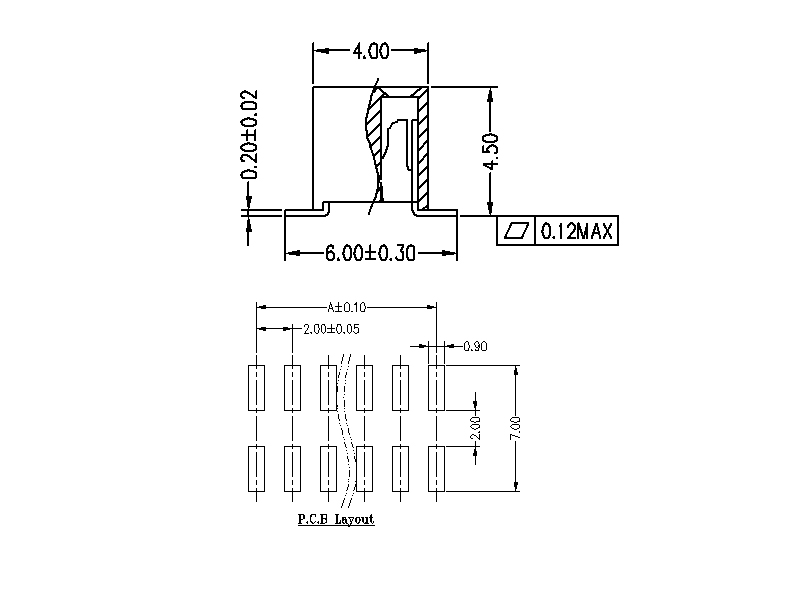

DRAWING

2.0mm SMT vertical model female header pin header socket 1.jpg2.0mm SMT vertical model female header pin header socket 2.jpg

(Contact with sales team if any query about the dimensions)
