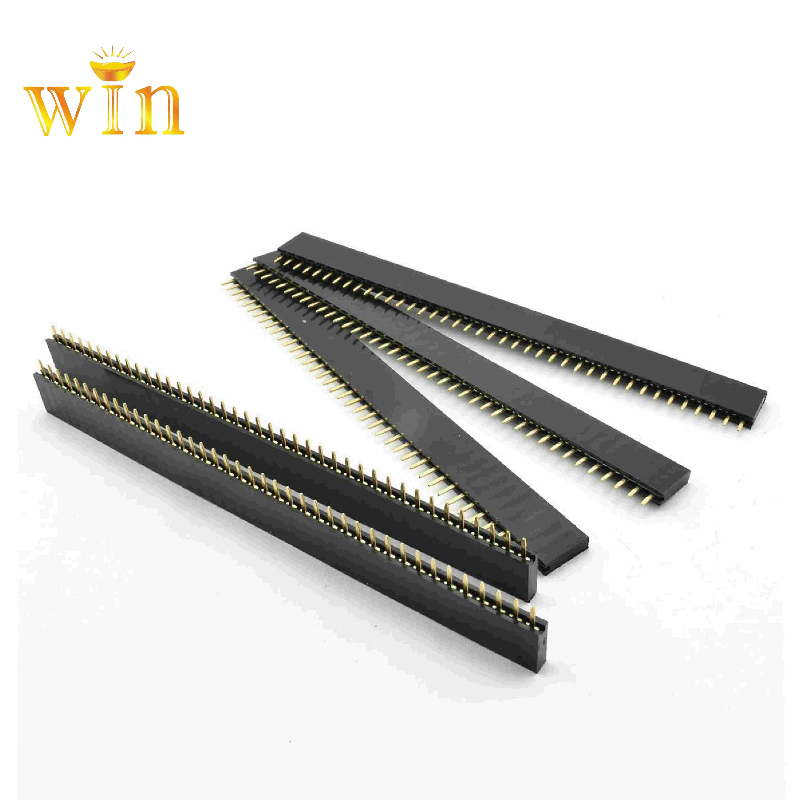

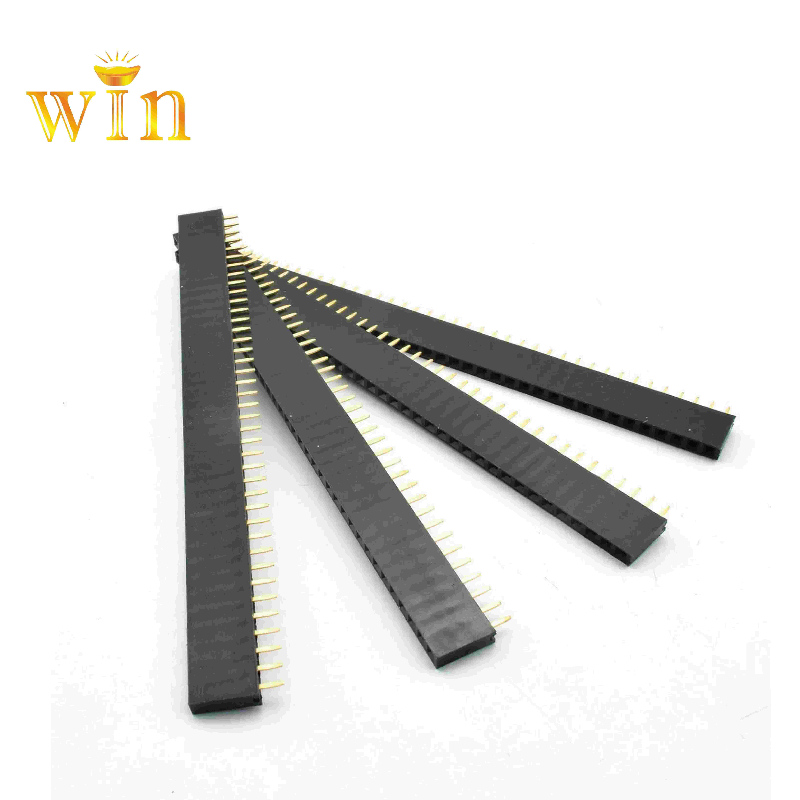

1x 40P 2.54mm Female Header Y shape contact model


Keywords :

40P Pin header socket / 40P female header / 40p


  • Hits : 20
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • We can customize all dimension of female header you need
  • All the material are RoHS compliant
  • Our quality is as the same as many well known brands
  • FULL REFUND in case of Bad Quality or LATE DELIVERY.
  • Free Sample Offer & Small batches welcomed

Product Details

2.54MM(0.1’’) PITCH FEMALE HEADER

SPECIFICATION

Current Rating:           3 Amp
Insulator Resistance:     1000 MΩ MIN
Dielectric Withstanding:  AC 500V
Contact resistance:       20mΩ MAX.
Operating Temp.:          -40℃ to +105℃
Max Processing Temp.:     230℃for 30 to 60 seconds
Insulator Material:       PBT+30% UL94V-0 ROHS
Contact Material:         Brass
Plated(*Standard):        Gold flash all over

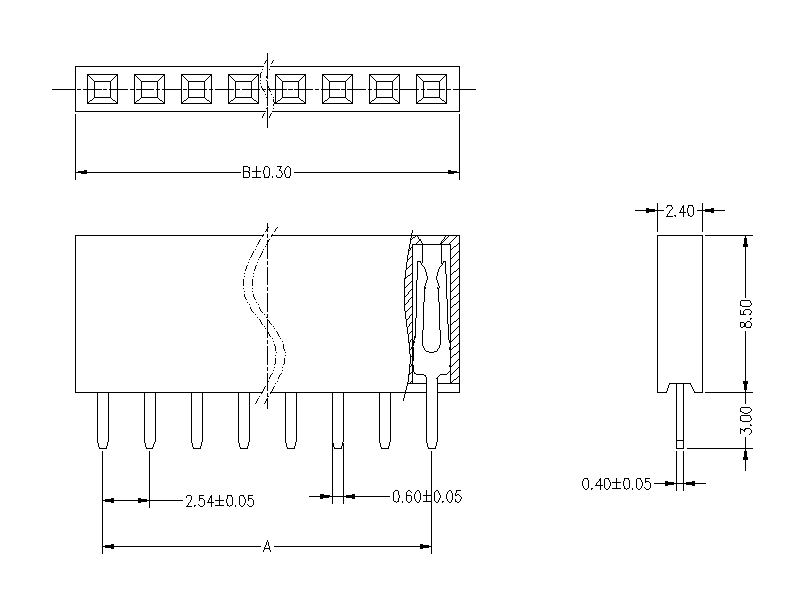

DRAWING


1x40P A=99.06mm & B=102.00mm

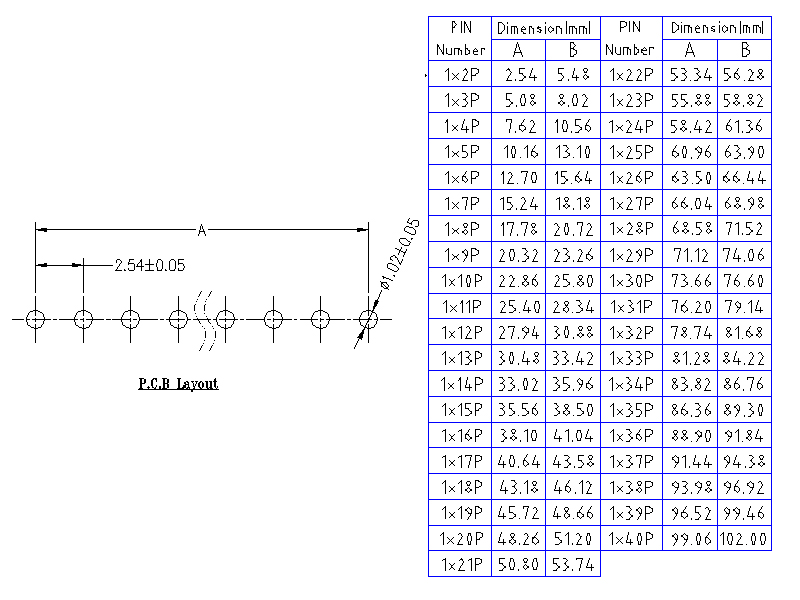

If you need other pins about this model, please match with the following dimension according to your design. Or you can send us an email.Our sales team will reply you all information as soon as possible.
