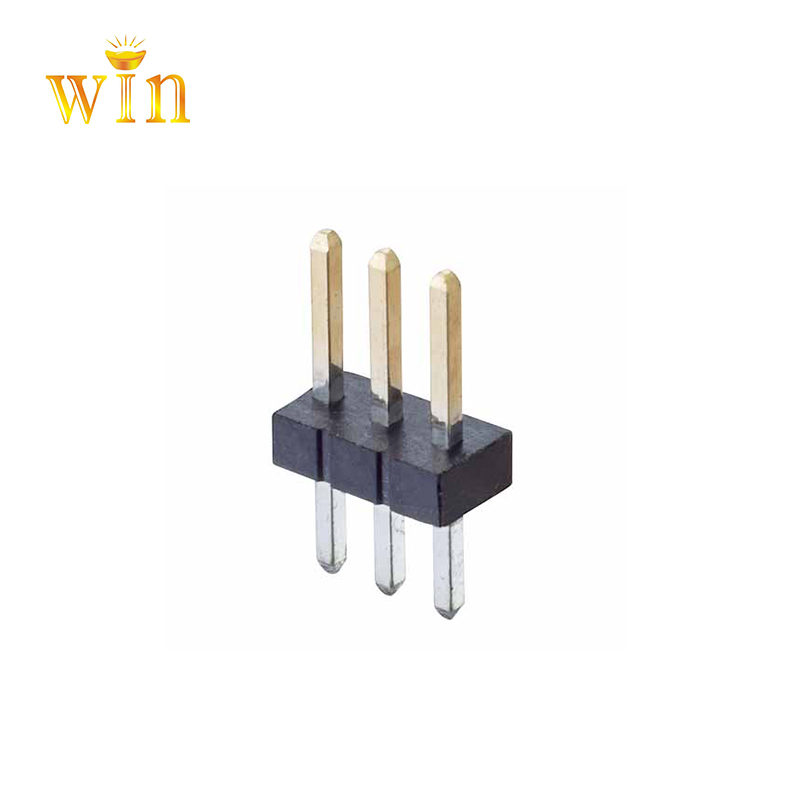

2.54mm 1x3P 180° pin header PCB connector


Keywords :

3P pin header / 4p pin header / 5p pin header


  • Hits : 15
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • We offer this model from 2P to 40P
  • You can customize the dimension of pin length
  • The best price and the quality is as the same as many well-known brands
  • All materials of Win-Win's connectors are RoHS compliant
  • Free sample offer and small batches are welcomed

Product Details

2.54MM(0.1’’) PITCH PIN HEADER

SPECIFICATION

MATERIALS(CONTACTS):Copper Alloy,Gold or Tin (over Nickel) finish

MATERIALS(HOUSINGS):Standard or High Temperature Plastic,rated to UL94V-0

CURRENT:3A per contact

MAXIMUM VOLTAGE:800V AC, 500V DC

CONTACT RESISTANCE:30mΩ max

INSULATION RESISTANCE:1,000MΩ min

OPERATING TEMPERATURE:-40to 105

DURABILITY:300 mating cycles (gold) or 50 mating cycles(tin)

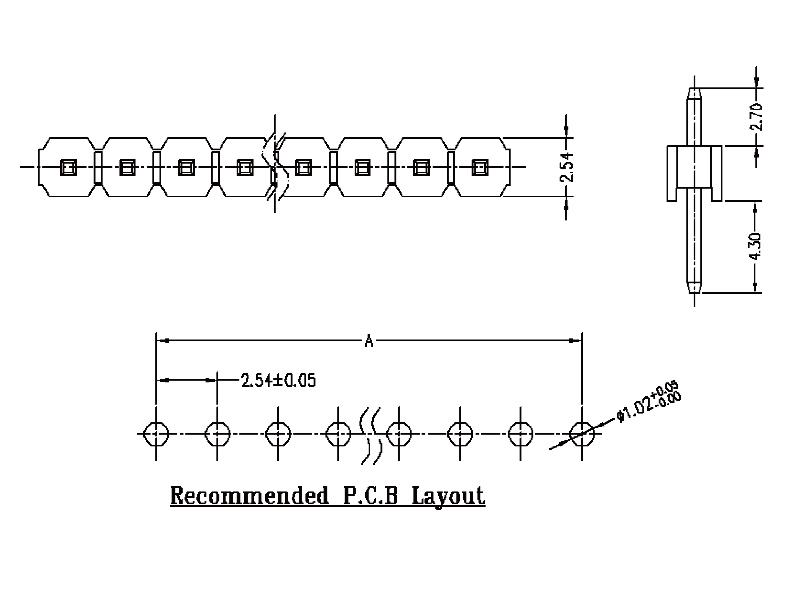

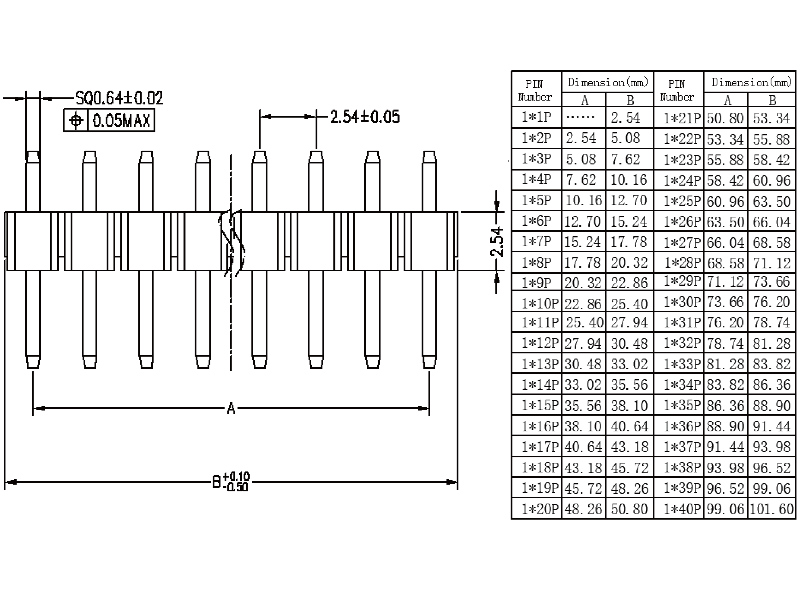

DRAWING



2.54mm Single Row Pin Header 1.jpg2.54mm Single Row Pin Header 2.jpg

(Contact with sales team to get more detail about the dimensions)
