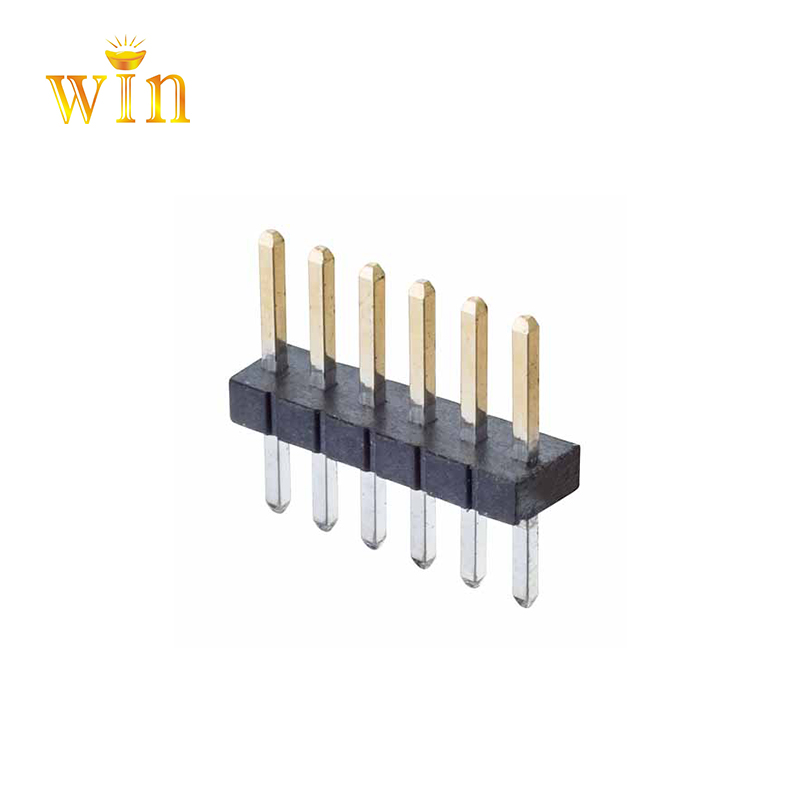

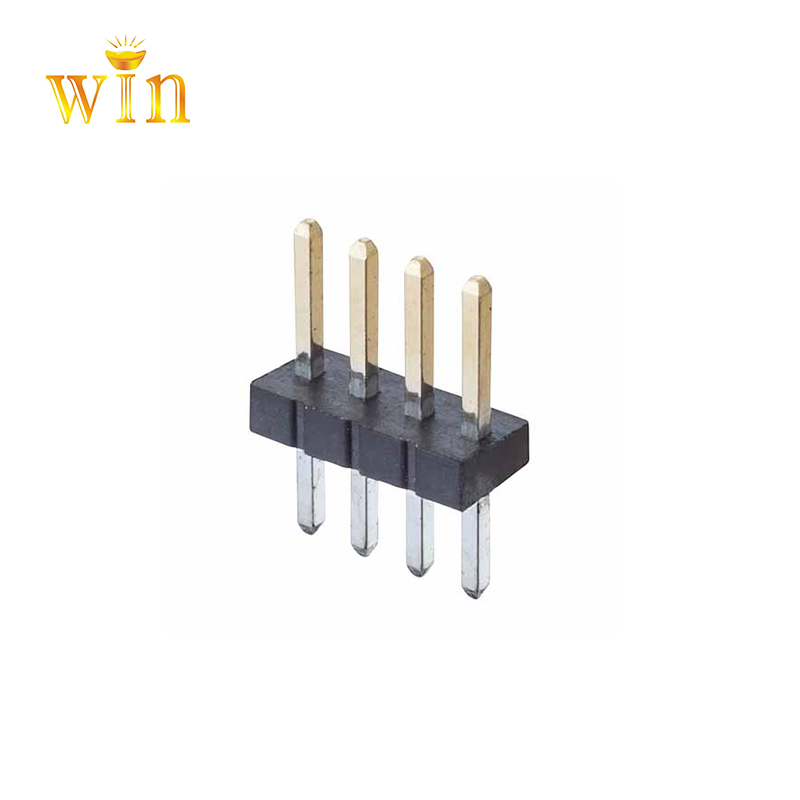

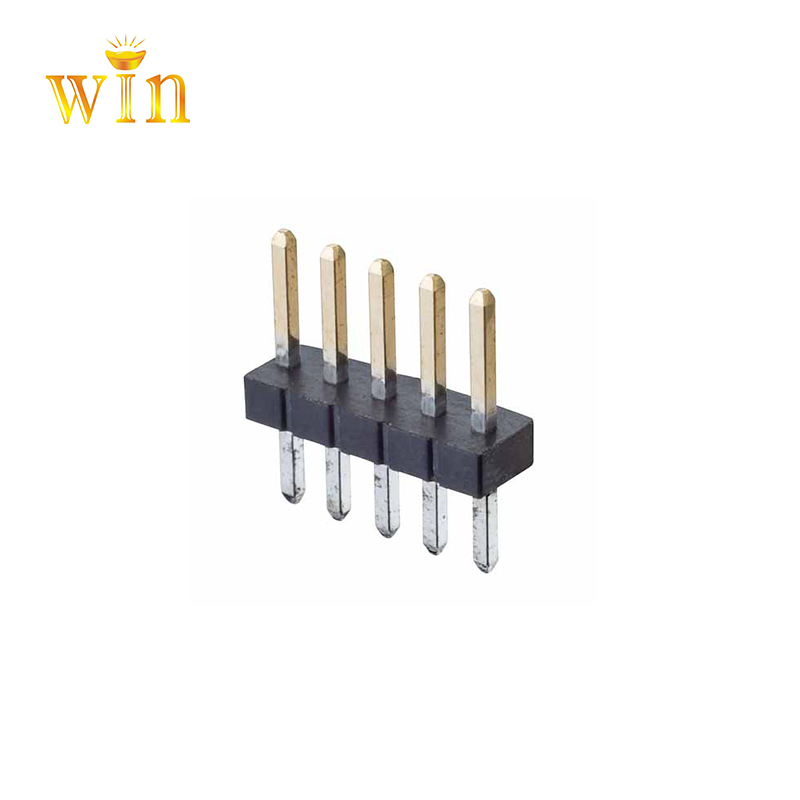

2.54mm 2P~40P 180° DIP pin header connector


Keywords :

4p pin header / 180° pin header / 5p dip pin header


  • Hits : 21
  • Company : DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
  • Telephone : +86 18929181819
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • We provide cost-effective and competitive price products.
  • We can design and produce products of any size and shape according to the needs of our customers.
  • The product quality is comparable to MOLEX, the price is better.
  • FULL REFUND in case of Bad Quality or LATE DELIVERY.
  • Free Sample Offer & Small batches welcomed

Product Details

2.54MM(0.1’’) PITCH PIN HEADER

SPECIFICATION

MATERIALS(CONTACTS):Copper Alloy,Gold or Tin (over Nickel) finish

MATERIALS(HOUSINGS):Standard or High Temperature Plastic,rated to UL94V-0

CURRENT:3A per contact

MAXIMUM VOLTAGE:800V AC, 500V DC

CONTACT RESISTANCE:30mΩ max

INSULATION RESISTANCE:1,000MΩ min

OPERATING TEMPERATURE:-40to 105

DURABILITY:300 mating cycles (gold) or 50 mating cycles(tin)

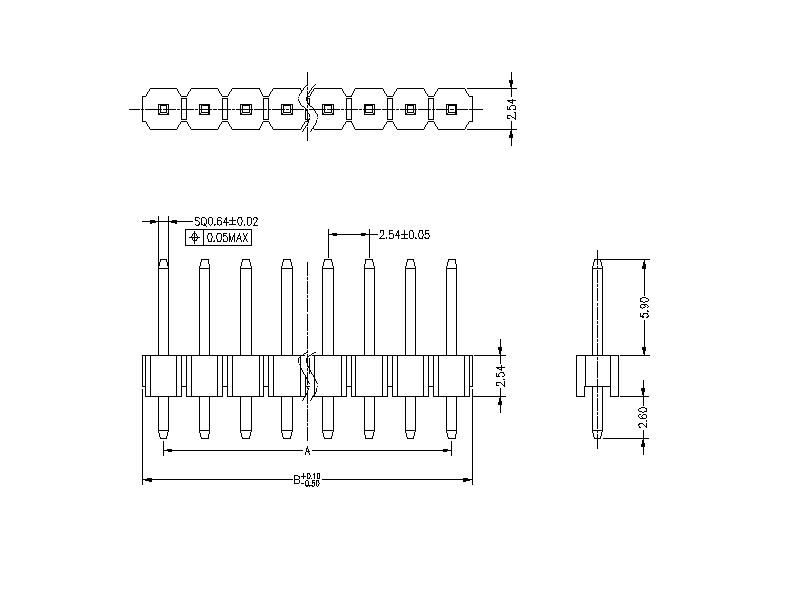

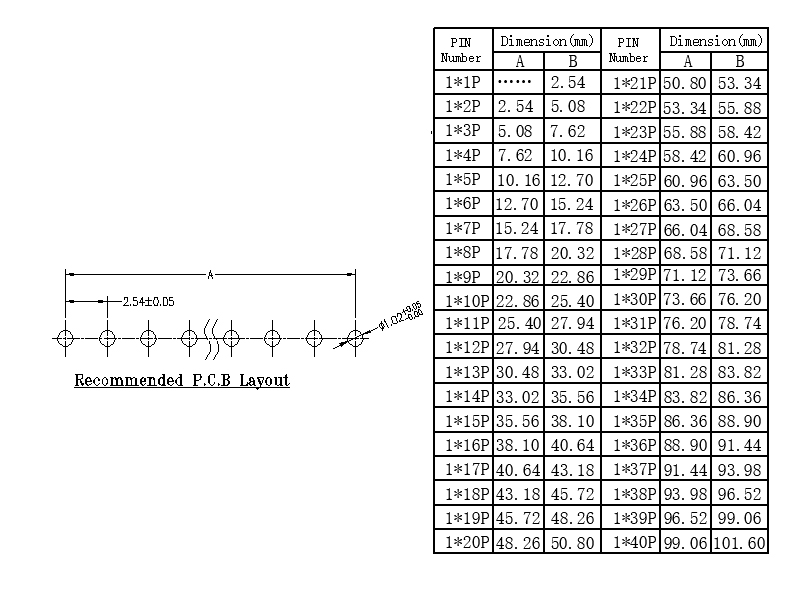

DRAWING

2.54mm 2.6-2.5-5.9 pin header-1.jpg2.54mm 2.6-2.5-5.9 pin header-2.jpg

(Contact with sales team to get more detail about the dimensions)
