Five Advantages Of Products
- We can design and produce products of any size and shape according to the needs of our customers.
- The product quality is comparable to MOLEX, the price is better.
- We provide cost-effective and competitive price products.
- All our products are made by Future-proofed Materials - halogen-free, SVHC- free and ROHS compliant.
- Free Sample Offer & Small order welcomed

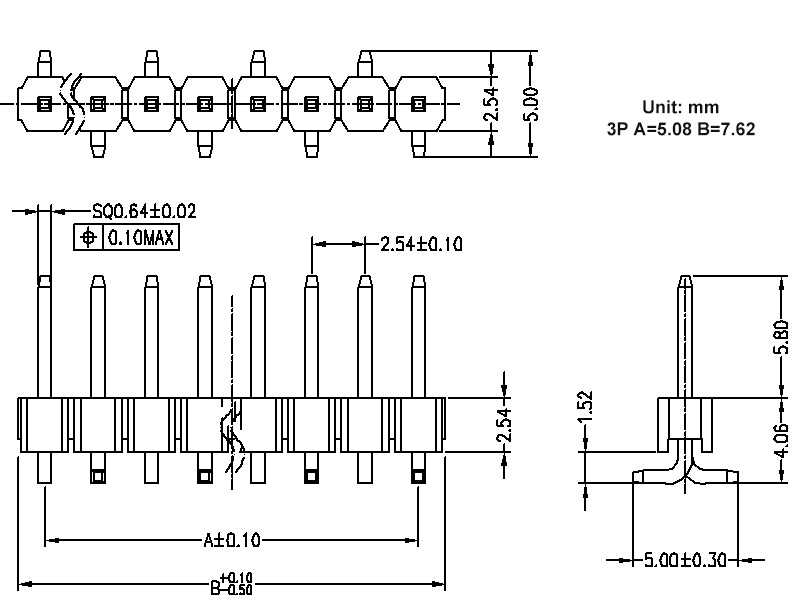

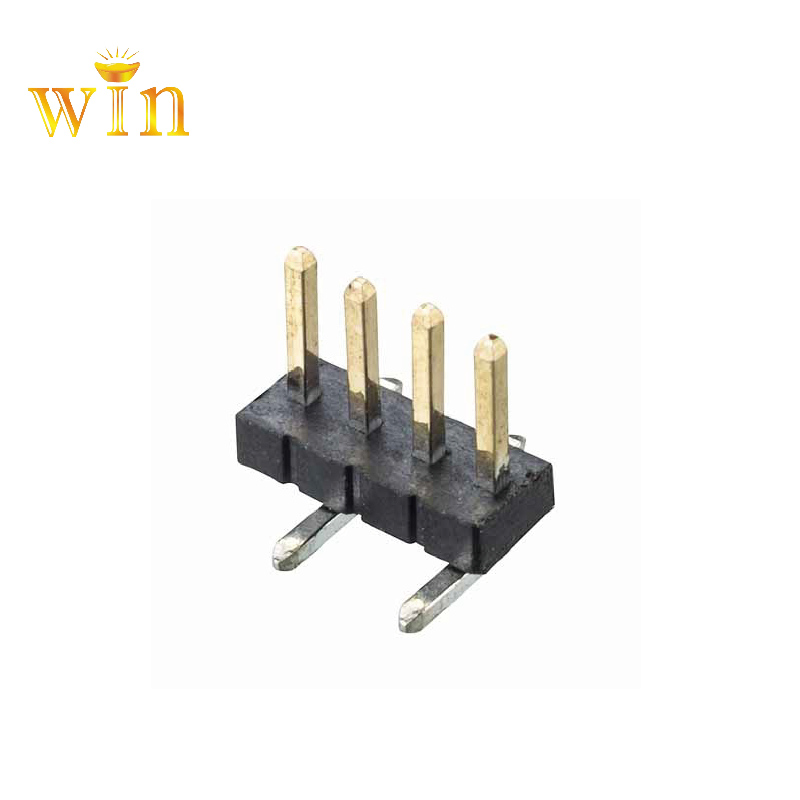

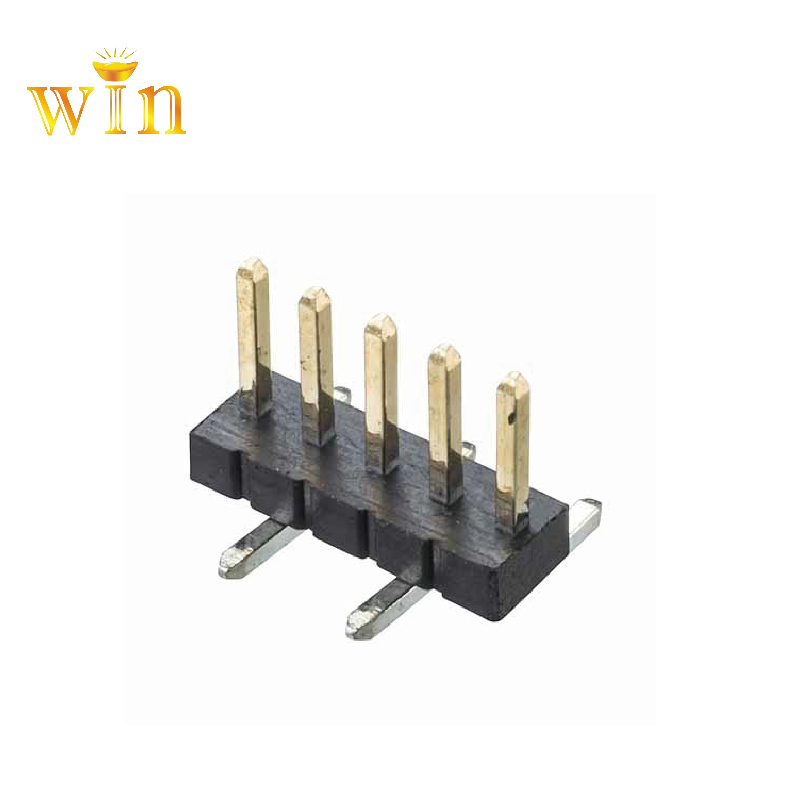

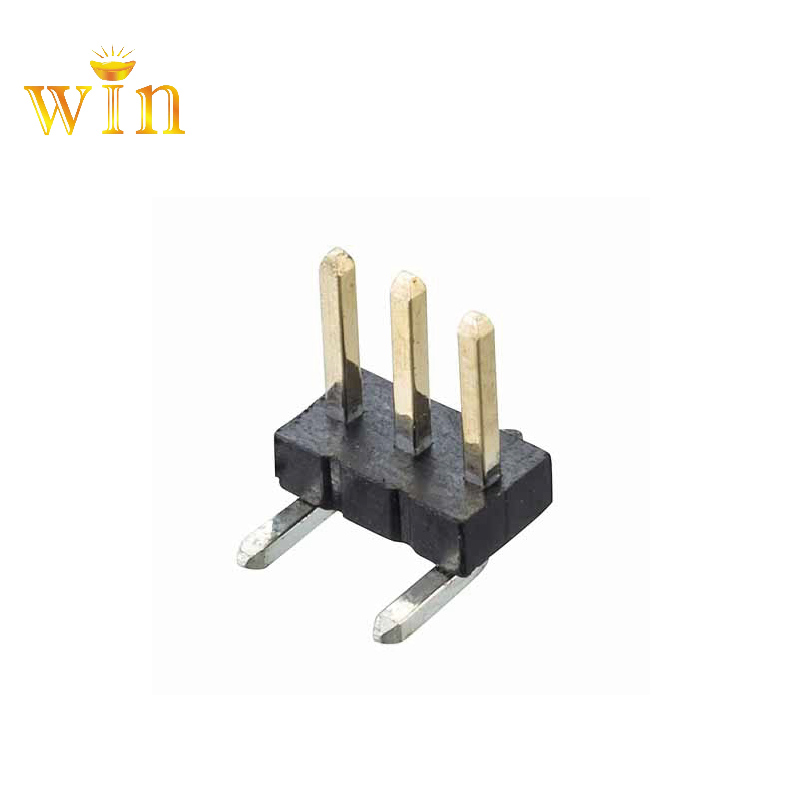

2.54MM(0.1’’) PITCH PIN HEADER
MATERIALS(CONTACTS): Copper Alloy,Gold or Tin (over Nickel) finish
MATERIALS(HOUSINGS): Standard or High Temperature Plastic,rated to UL94V-0
CURRENT: 3A per contact
MAXIMUM VOLTAGE: 800V AC, 500V DC
CONTACT RESISTANCE: 30mΩ max
INSULATION RESISTANCE:1,000MΩ min
OPERATING TEMPERATURE: -40℃ to 105℃
DURABILITY:300 mating cycles (gold) or 50 mating cycles(tin)
What's the function of pin header?
Its function is to function as a bridge between blocked or isolated circuits in the PCB board circuit, and responsible for current or signal transmission.
What are hre pin header models?
There are many types of pin headers which are classified according to the standards in the electronics industry to meet different needing. According to the space, it can be roughly divided into 2.54mm (0.1 in), 2.0mm (0.079 in), 1.27mm (0.05 in), 1.0mm (0.04 in), 0.8mm (0.03 in). The distance between pins is commonly referred as pitch in the electronic community. According to the number of rows, there are single row, double row, three rows, etc. According to the package usage, there are patches SMT (surface-mount technology version) and plug-in DIP (pin through hole devices), among them, SMT pin headers can be divided into horizontal pin header and vertical pin header, and DIP types can be divided into straight insertion pin header and bending insertion pin header. Besides that, we divided it into three types according to their installation method, 180° installation is represented by "S", 90° installation is represented by "W", and SMT installation is represented by "T".
What's the application range of pin header?
Application range: Data processing equipment, Computer, Program control equipment, Electronic measuring equipment, Automatic control equipment, Automation equipment, Communication equipment, etc.
