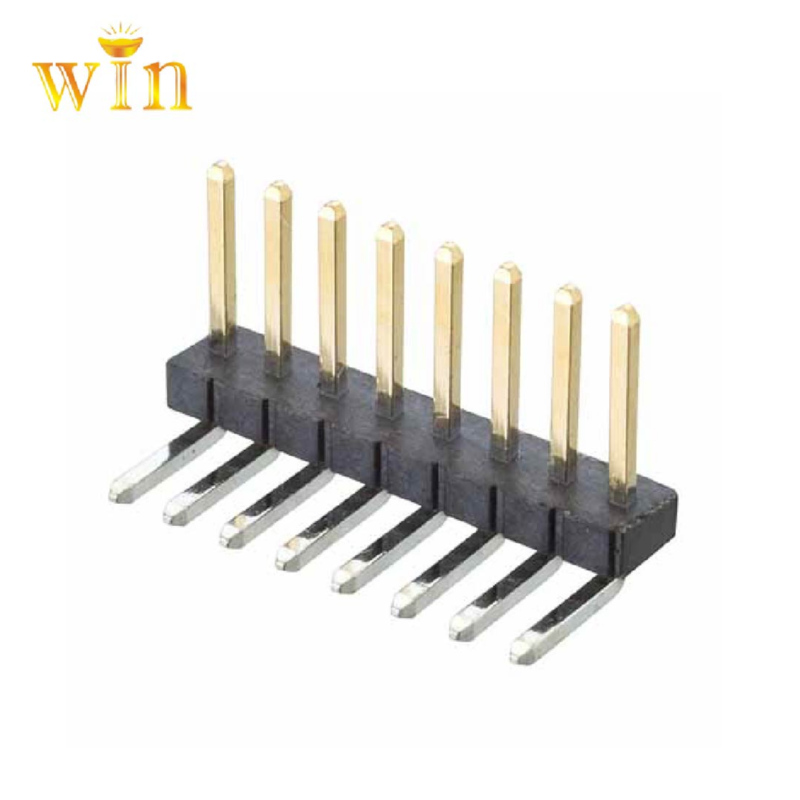

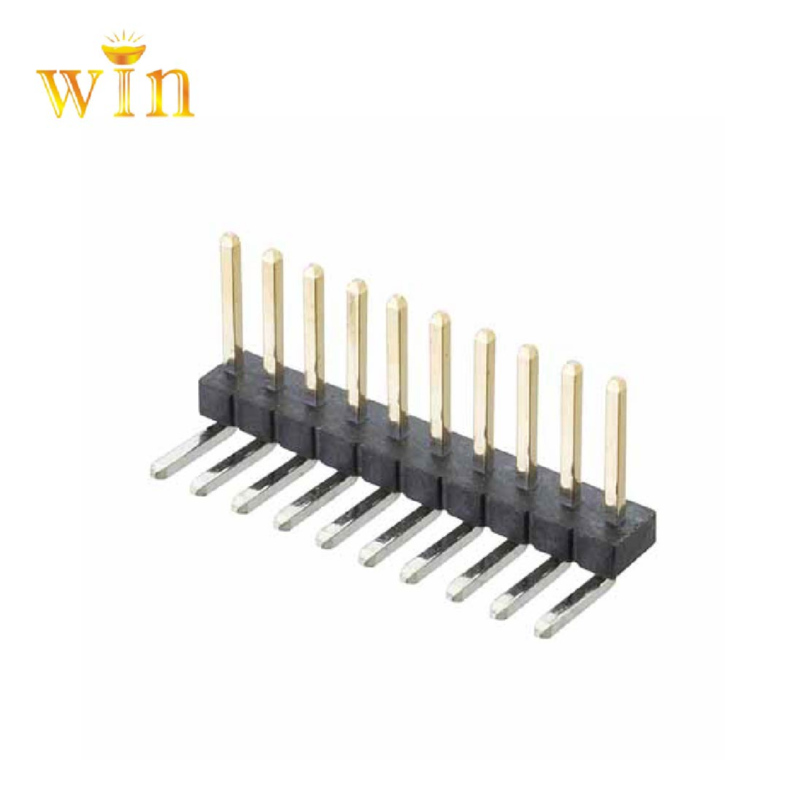

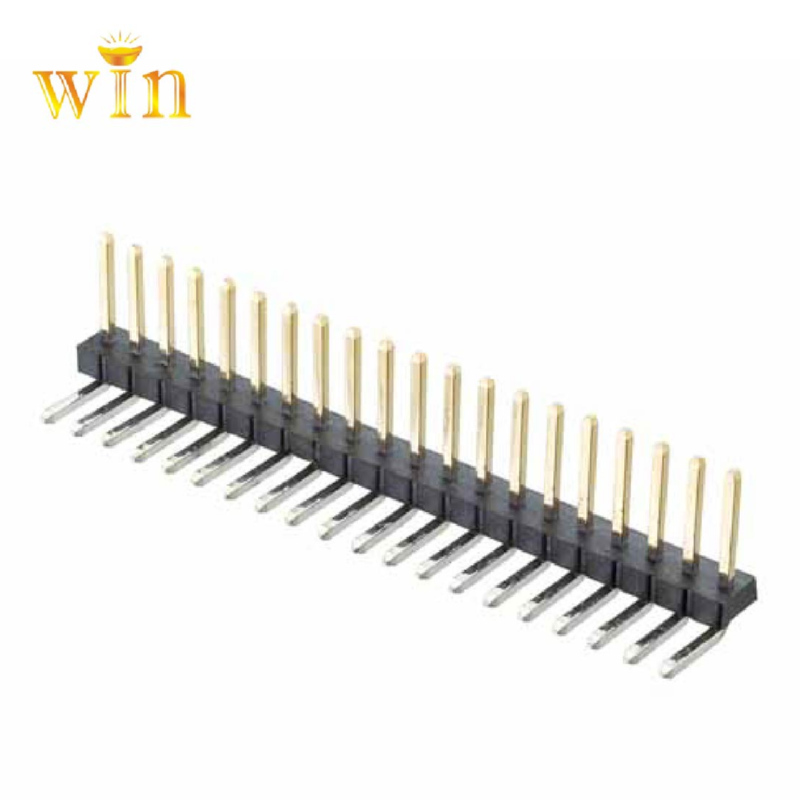

PH2.54 8P Right-angle PCB connector 10P 20P
Five Advantages Of Products
- The product quality is comparable to MOLEX, the price is better.
- We can design and produce products of any size and shape according to the needs of our customers.
- All our products are made by Future-proofed Materials - halogen-free, SVHC- free and ROHS compliant.
- Our core competence is Pin Headers &Female Header & Terminal Block
- Free Sample Offer & Small order welcomed
Product Details
2.54MM(0.1’’) PITCH PIN HEADER
SPECIFICATION
MATERIALS(CONTACTS): Copper Alloy,Gold or Tin (over Nickel) finish
MATERIALS(HOUSINGS): Standard or High Temperature Plastic,rated to UL94V-0
CURRENT: 3A per contact
MAXIMUM VOLTAGE: 800V AC, 500V DC
CONTACT RESISTANCE: 30mΩ max
INSULATION RESISTANCE: 1,000MΩ min
OPERATING TEMPERATURE: -40℃ to 105℃
DURABILITY: 300 mating cycles (gold) or 50 mating cycles(tin)

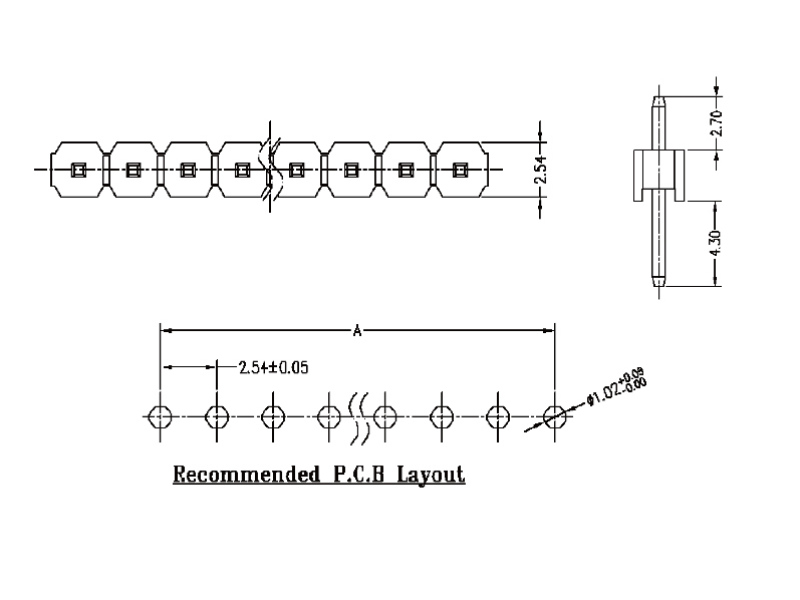

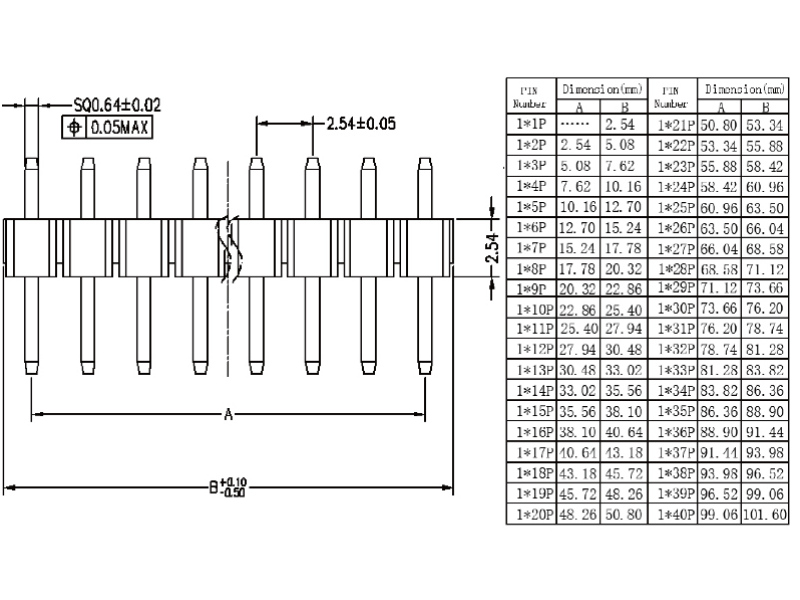

DRAWINGS
DONGGUAN WIN-WIN ELECTRONICS CO.,LTD
Contact Person: Haimei Liang
Department: Sales Department
Post: sales manager
Telephone: +86 18929181819
Landline: +86 0769 83450370
Company Address: No.67,Dongshen Road,Qiaotou Town,Dongguan City,China
Website: www.dgwin-win.com
